• Model NO.：ABC Cable
• Material Shape：Flat Wire
• Range of Application：Overhead Transmission Line
• Certification：ISO9001, CE
• Brand：Dayuan
• Item Name：Parallel or Twisted Aerial Bundle Cable ABC Cable
• ABC Cable：Aerial Bundle Cable
• Layer：Ec Grade Aluminum Wires
• Standard：IEC, ASTM, BS, DIN
• Cross Area(mm)：25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2
• Supplier′s Nature：Manufacturer and Exporter
• Manufacturer Experience：Since 2006
• Factory Area：200, 081mm2
• Export Experience：USA, Philippines, South Africa etc
• Conductor：Ec Grade Aluminum Wires
• Transport Package：Wooden Drum Steel Wooden Drum or as Your Request
• Specification：25mm2 50mm2 75mm2 90mm2 100mm2
• Trademark：DAYUAN
• Origin：China
• HS Code：85444929
• Production Capacity：50000m,Day

Basic Info.

Model NO. ABC Cable Material Shape Flat Wire Range of Application Overhead Transmission Line Certification ISO9001, CE Brand Dayuan Item Name Parallel or Twisted Aerial Bundle Cable ABC Cable ABC Cable Aerial Bundle Cable Layer Ec Grade Aluminum Wires Standard IEC, ASTM, BS, DIN Cross Area(mm) 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2 Supplier′s Nature Manufacturer and Exporter Manufacturer Experience Since 2006 Factory Area 200, 081mm2 Export Experience USA, Philippines, South Africa etc Conductor Ec Grade Aluminum Wires Transport Package Wooden Drum Steel Wooden Drum or as Your Request Specification 25mm2 50mm2 75mm2 90mm2 100mm2 Trademark DAYUAN Origin China HS Code 85444929 Production Capacity 50000m/Day

Product Description

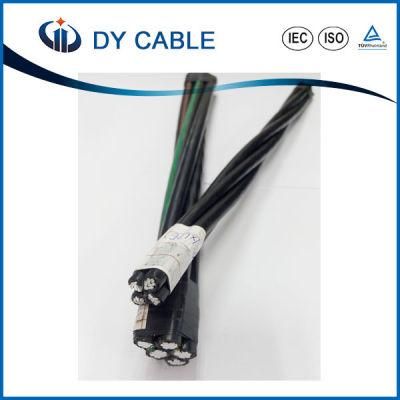

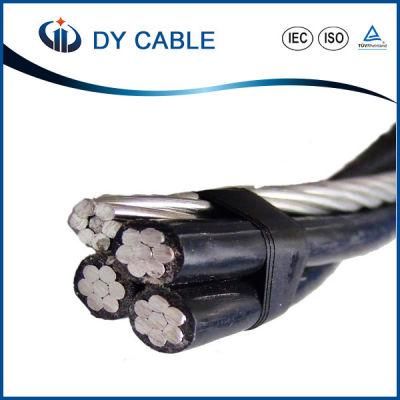

 parallel or twisted aerial bundle cable abc cable

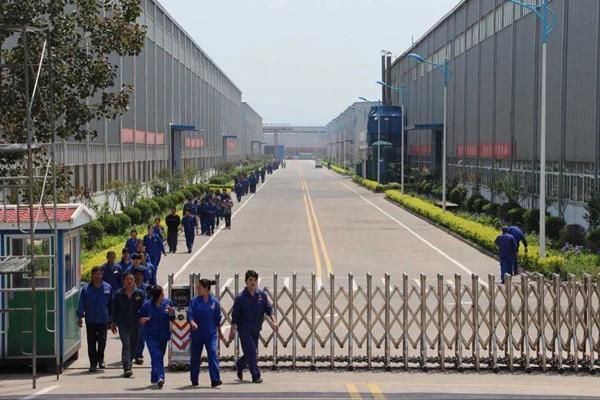

Company Information

1: a group with seven sub-companies;

2: Factory about 200,081 square meters;

3: 800 staffs and 40 engineers, 11 production lines;

4: production capacity: 100,000m/day.



AAC ACSR Conductor ABC Cable
ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor, around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentric stranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.


Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Expressed Method of Product
1: Code
Stranded wire..............................................J
Aluminum conductor.........................................…L
Steel core .............................................…..G
Corrosion.................................................F
2: Expressed method of product
  Example:
Aluminium conductors steel-reinforced, Nominal cross area120mm2,steel-reinforced20 mm--------- LGJ -120/20    GB1179-83

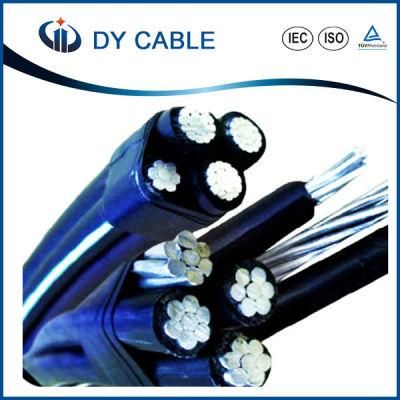

3: Pictures of products structure



Material Standard
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
2) The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.
3) Production can be arranged according to customers requirements for material standard,etc.

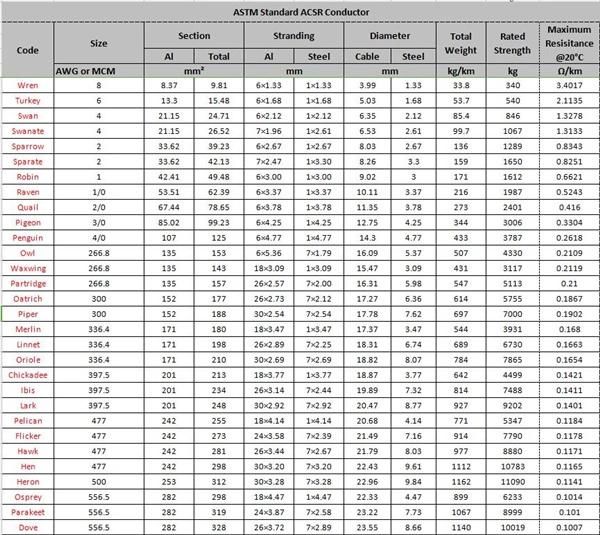

Construction of All Aluminum Conductor and Aluminum Conductor Steel Reinforced
Standards:
ASTM-B232   Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2       aluminum conductors steel-reinforced -For overhead power transmission
DIN48204       Steel reinforced aluminum stranded conductors
IEC209           Aluminum stranded conductor steel reinforced
Customized type available

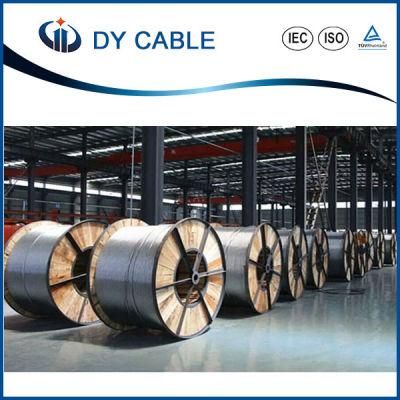

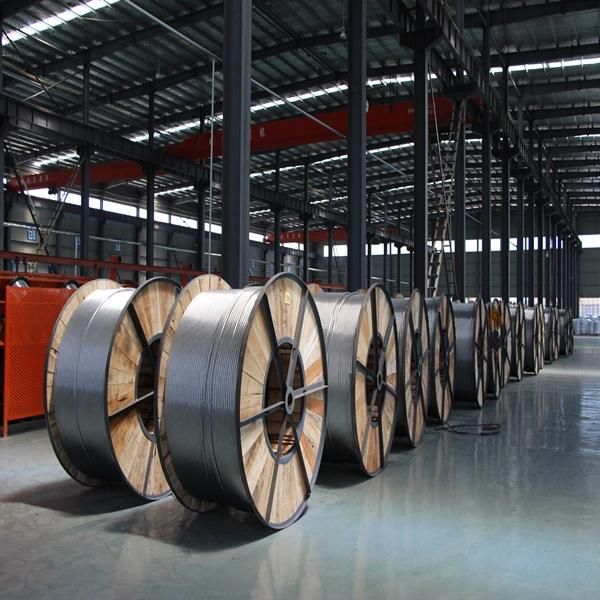

 Workshop for AAC ACSR ABC Conductor



Packing & Delivery for AAC ACSR Conductor ABC Cable
Package: wooden drum, or wooden steel drum, your requirement is ok;
Delivery: according order qty, usually 20-30days after contract

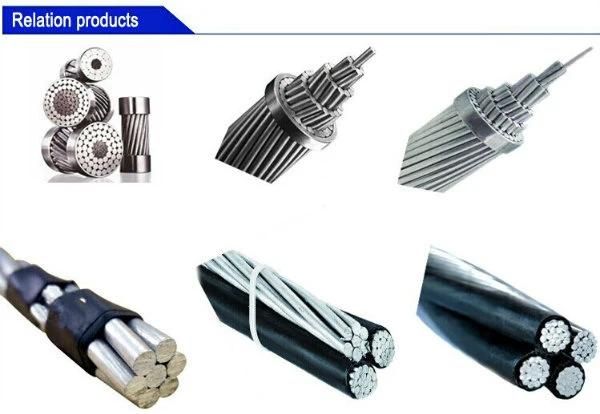

 Products we can Produce
Mainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications

No.	Products Name
1	electrical wires, power cables, control cables

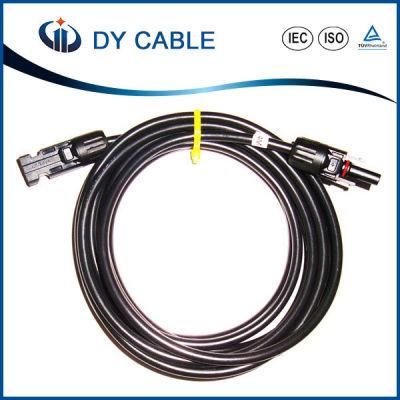

2	solar cables
3	aerial cables
4	all aluminum conductor(AAC)
5	aluminum conductor steel reinforced wire(ACSR)
6	all aluminum alloy conductor(AAAC)

Contacts
Name:Mandy                                                                                           Mobile: +86-137-2168-9492                                              Website:dycable.en.made-in-china.com                                                                                 Group Address:1209 Room, 12th floor, Luoyang Asian Sun Group Co., Ltd, Hundsun Science&Technology Park, Luoyang, Henan Province, China
Factory Address: Yichuan Electricity Industry zone, Luoyang, Henan Province, China
