Overhead Electric Power Cable Low Cost
Guangdong Vango Cable Industry Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Copper
- Insulation Material：XLPE
- Material Shape：Round Wire
Base Info
- Model NO.：JKYJ-1 JKLYJ-1
- Range of Application：Aerial Electric Power Transmission
- Transport Package：Wooden Reel, Steel Reel
- Specification：0.5-630 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- Production Capacity：20000km Per Month
Description
Application
The product applies to aerial electric power transmission lines with rated voltage to and including 1kv.
Features
1.The rated voltage (U/Um) is 1kv.
2.Permissible continuous working temperature of cable conductor is not more than 90ºC
3.Ambient temperature is not lower than -20ºC when cable is installed.
4.Permissible minimum bending radius is as follows:
For O.D. less than 25mm, equal to or greater than 4 times O.D.
For O.D. not less than 25mm, equial to or greater than 6 times O.D.

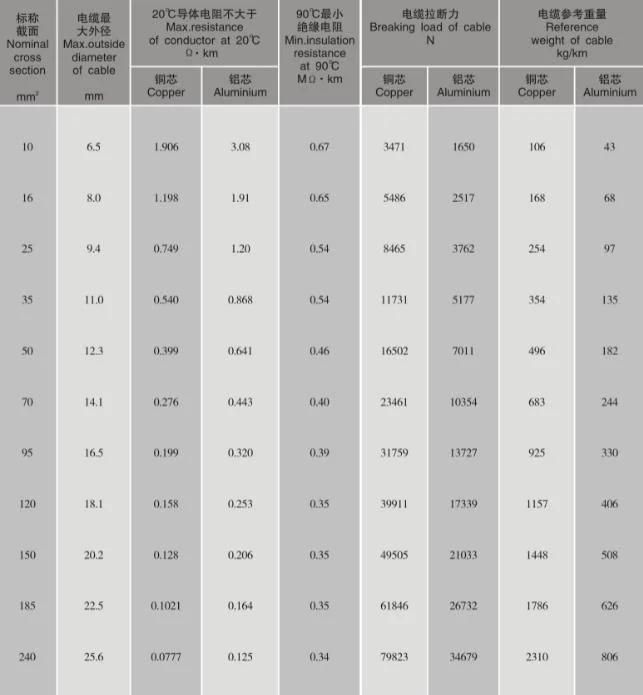

Main Technical Parameter

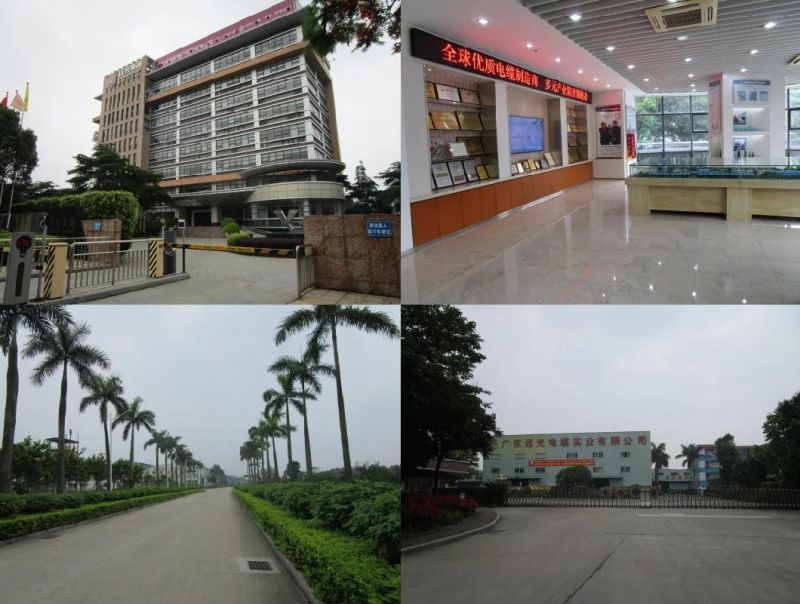

Our company

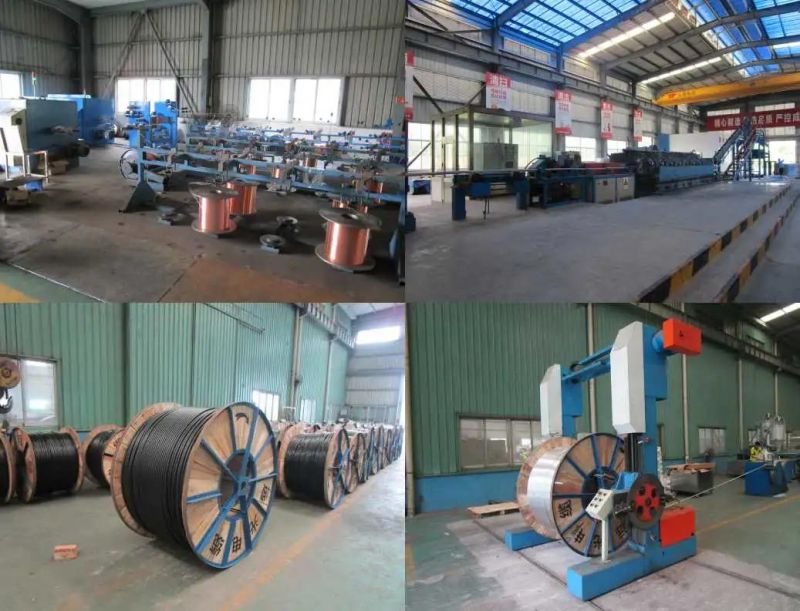

Workshop
Certificates
