• Model NO.：75-10
• Wire Core Material：Bare Copper
• Certification：CE, ISO
• Model：Slywv-75-10
• Brand：Libo

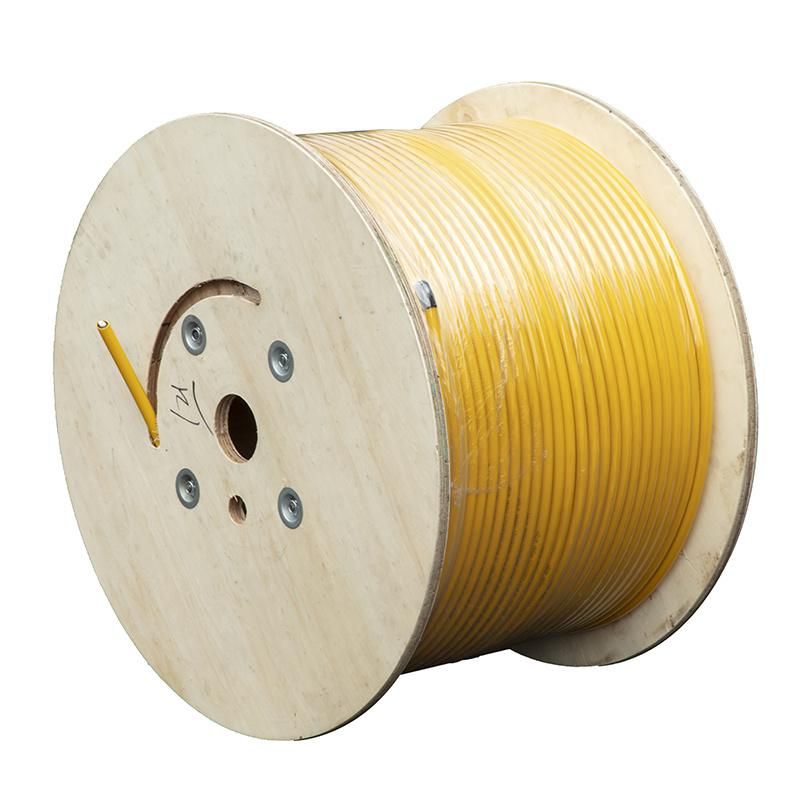

• Transport Package：350m,500m,1000m
• Specification：Leaky Feeder Cable
• Trademark：LIBO or OEM
• Origin：China
• HS Code：854420000
• Production Capacity：1000 Km Per Month

MSHA SLYWV-75-10 VHF Leaky Feeder Cable With Low Smoke zero Halogen(LSZH) Outer Jacket For Tunnel, Mine Communication

MSHA certified leaky feeder cable, Meet IEC1196 and EN50117.

The leaky feeder cable has a radiation pattern of 360 degrees around the cable and can be strapped directly to a centenary cable, water or air pipe. The standard length is 350m or 500m with a yellow outer jacket.

As an option, the cable can be manufactured according to order with a blue color outer jacket and low smoke halogen free jacket is also available

Inner conductor

2.31mm bare copper

Dielectric

9.50mm

Outer conductor

16x0.6 bare copper wire

Outer jacket

15.0mm+/-0.2mm

Frequency

5 to 500MHZ

impedance

75 ohms

Attenuation @160 MHZ

4.2dB/100m

DC resistance inner conductor

<4.5 ohm/km

DC resistance outer conductor

<4.1 ohm/km

capacitance

54 pF/m

Insulation resistance

>10.4m ohm/km

MIN. bend radius

150mm

Operating temperature

-40 to +70 centigrade

Competitive Advantage:

• Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
• Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
• Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
• Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
