• Model NO.：Instrumentation cable
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, SGS
• Model：Fire Resistant Cable
• Brand：Hongda
• Standard：BS5308
• Rated Voltage：300,500 V
• Transport Package：Drum or as Customer Require
• Specification：0.5mm2 to 1.5mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：800km,Month

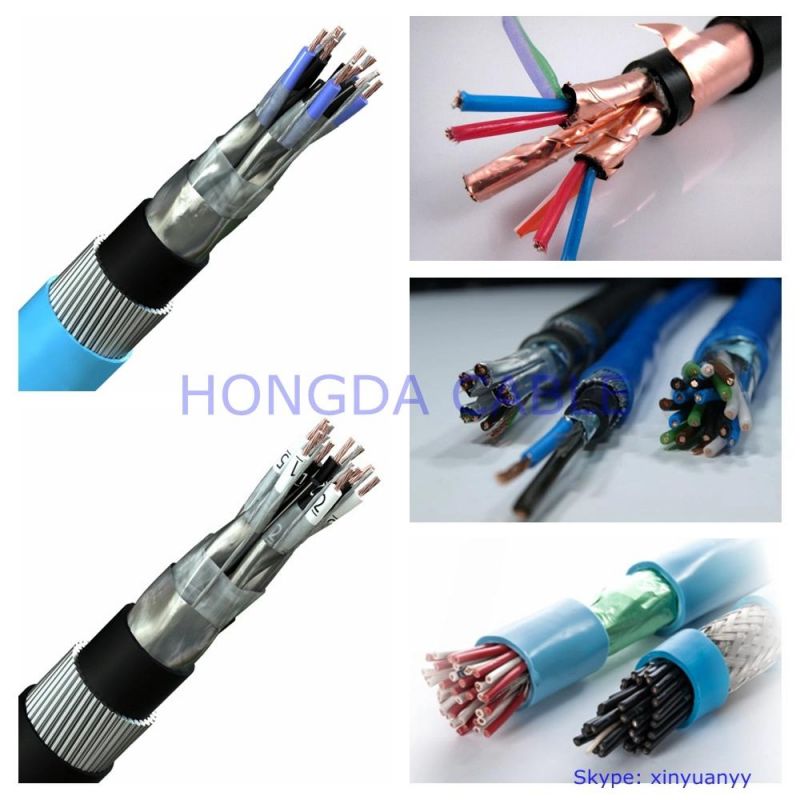

ConductorAnnealed or tinned copper, sizes: 0.5mm^2 and 0.75mm^2 mulitistranded(Class 5), 0.5 mm^2, 1.0 mm^2 solid(Class 1), 1.5mm^2 or 2.5mm^2, multistranded(Class 2) to BS6360InsulationXLPE (Cross Linked Polyethylene), or PE (optional)PairingTwo insulated conductors uniformly twisted together with a lay not exceeding 100mmColour codeSee technical informationBinder tapePETP transparent tapeCollective screenAluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2Outer sheathLSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2Sheath colourBlack or blue

Mechanical and Electrical Properties

Operating temperature-20C up to + 90C( fixed installation) 0C to +50C(during operation )Minimum bending radius5 x overall diameterConductor Area Sizemm^20.50.50.751.01.5Conductor StrandingNo. x mm1 x 0.816 x 0.224 x 0.21 x 1.137 x 0.53Conductor resistance maxohm/km36.839.726.518.212.3Insulation resistance minGohm/km55555Capacitance unbalance at 1 kHz(pair to pair screen)pF/250m250Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs)pF/m115115115115115Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair)pF/m7575757575Max. L/R Ratio for adjacent cores(Inductance/ Resistance)μH/ohm2525252540Test voltageCore to coreV10001000100010001000 Core to screenV10001000100010001000Rated voltage maxV300/500300/500300/500300/500300/500
Cable Design Parameters
 Number of PairsNumber and Diameter of WiresNominal Conductor Cross-Sectional AreaNominal Thickness of InsulationNominal Thickness of SheathNominal Diameter of CableApprox. Weightno./mmmm^2mmmmmmkg/km11/0.800.50.50.85.53521/0.800.50.50.86.85551/0.800.50.51.110.9125101/0.800.50.51.214.4215151/0.800.50.51.216.5300201/0.800.50.51.318.8385301/0.800.50.51.322.3545501/0.800.50.51.528.5875116/0.200.50.60.86.260216/0.200.50.60.87.680516/0.200.50.61.112.42101016/0.200.50.61.216.53401516/0.200.50.61.319.24402016/0.200.50.61.321.75703016/0.200.50.61.526.47805016/0.200.50.61.733.41130124/0.20.750.60.86.775224/0.20.750.60.98.4100524/0.20.750.61.213.82501024/0.20.750.61.318.44501524/0.20.750.61.521.16002024/0.20.750.61.524.49203024/0.20.750.61.729.59805024/0.20.750.6237.6169011/1.1310.60.86.68521/1.1310.60.8811551/1.1310.61.213.5290101/1.1310.61.217.7500151/1.1310.61.320.6670201/1.1310.61.523.8950301/1.1310.61.528.41030501/1.1310.6236.6175017/0.531.50.60.87.510027/0.531.50.60.99.315057/0.531.50.61.215.6360107/0.531.50.61.320.9690157/0.531.50.61.524.6880207/0.531.50.61.527.81230307/0.531.50.61.733.71560507/0.531.50.62432400


Packing & Shipping:

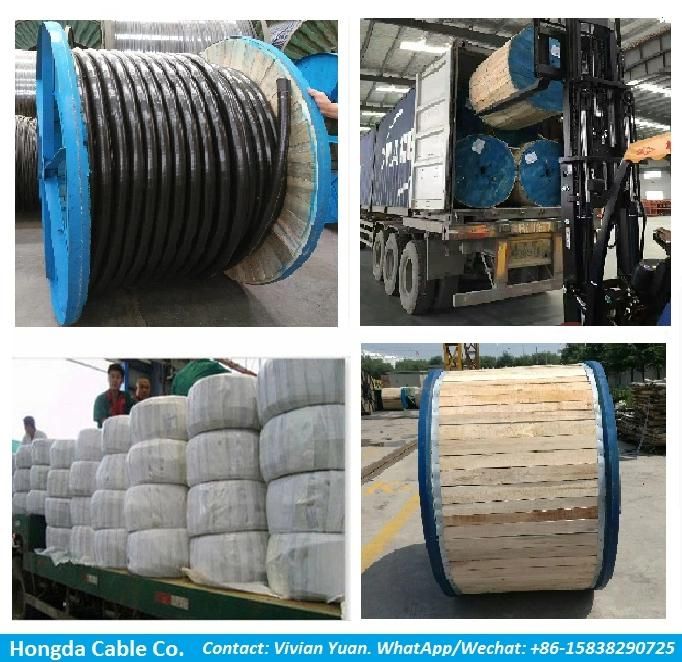

Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Shipping Port:
Shanghai, Qingdao, Tianjin or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF/DAP quotation are all available.


Why Choose Us ?

Quality And Safety

• Hongda Cable was founded in 1999 with almost 17 years of experience in the cable industry.
• Our manufacturing facilities are equipped with state-of-the-art technology, so we are able to meet our customers' needs for a wide range of industrial cables.
• With knowledgable engineers, rigorous quality standards and customer-centered core values, we are always ready to provide the best available products and services.
• For customers inquiring about our services, we offer product testing and sample analysis against international standards--free of charge.

Complete Inventory And Fast Delivery

• Our integrated manufacturing and storage facilities enable us to offer flexibility in specifications and fast turnaround time.
• Providing outstanding service level, Hongda Cable will meet your requirements for both standard products from our catalog and custom solutions.

Customized Solutions And Tailored Services

• With 17 years of experience, we are proud of our industry-leading R&D center and able to meet our customers' needs.
• Hongda Cable specializes in the design, manufacturing, and distribution of special industrial cable products. We welcome any ODM inquiries.

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact me Mobile:+86-15838290725 , we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
