Ce SGS Approved Fiber Optic Cable Fast Connector (T-308X)
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Type:Fiber Splicer
- Certification:CE, ISO
- Customized:Customized
- Condition:New
- Feature:Explosion-Proof
- Applicable Fibers:Sm, mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire
Base Info
- Model NO.:T-308X
- Average Splice Loss:0.02dB(Sm), 0.01dB(mm), 0.04dB(Nzds), 0.04dB(Edf)
- Return Loss:>60dB
- Protection Sleeve Length:20mm, 40mm, 60mm
- Language:Multi-Language
- Tension Test:2.0n 200GF Standard
- Monitor:4.3 Inches Colorful LCD Display
- Fiber Image Magnification:X and Y Views with 220 Times
- Dimension:120mm(W) *120mm( D) * 120mm(H)
- Weight:1.29kg
- Transport Package:Export-Standard Carton Box with PE Foam Inside
- Specification:CE, SGS, CSI, ISO9000
- Trademark:Skycom , OEM
- Origin:Nanjing, China
- HS Code:8515800090
- Production Capacity:1500PCS, Month
Description
Basic Info.
Model NO. T-308X Average Splice Loss 0.02dB(Sm), 0.01dB(mm), 0.04dB(Nzds), 0.04dB(Edf) Return Loss >60dB Protection Sleeve Length 20mm, 40mm, 60mm Language Multi-Language Tension Test 2.0n 200GF Standard Monitor 4.3 Inches Colorful LCD Display Fiber Image Magnification X and Y Views with 220 Times Dimension 120mm(W) *120mm( D) * 120mm(H) Weight 1.29kg Transport Package Export-Standard Carton Box with PE Foam Inside Specification CE, SGS, CSI, ISO9000 Trademark Skycom / OEM Origin Nanjing, China HS Code 8515800090 Production Capacity 1500PCS/ MonthProduct Description
Ce SGS Approved Fiber Optic Cable Fast Connector (T-308X)Key Features> 4.3 inches high resolution colorful LCD display, image can be turned according to position
> Average splice time: 6 seconds
> Average tube-heat time: 15 seconds
> 5200 5200mAh, Ultra-high Battery
> Multistage Amplification, Magnification up to 520X Which Makes Clear Image
> New developed technology providing strong wind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
> Automatic Detection
Specification
Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss | ≥60dB |
Tension Test | 2.0N(200gf)(Standard) |
Typical splicing time | 6 seconds |
Typical heating time | 15 seconds |
Splicing Program | 50 groups |
Protection Sleeve Length | 20mm, 40mm, 60mm |
Operating Language | Chinese, English, French, Portuguese, Spanish |
Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 11.1V, 5.2AH |
Monitor | 4.3 inches high resolution colorful LCD display |
Fiber Image Magnification | X or Y axis Separately views 400 times magnification, or Simultaneously 220 times |
Storage of Splice Result | 6,000 groups of latest splice results |
Splicing Model | Auto & Manual & Full Auto |
Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (T-308XF, for SC/LC/FC connector) |
Dimensions | 120(W)*120(D)*120(H)mm; |
Weight | 1.29kg; |
Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Standard Package
No. | Item | 1 |
1 | Machine T-308X | 1 |
2 | Fiber Cleaver | 1 |
3 | Fiber Stripper | 1 |
4 | AC Adaptor (Charger) | 1 |
5 | Battery | 1 |
6 | Spare Electrodes | 1 |
7 | Cooling Tray | 1 |
8 | Instruction CD | 1 |
9 | Quick Reference Guide | 1 |
10 | Rubber-insulated wire stripping pliers | 1 |
11 | Rubber-insulated wire 3-in-1 cutting fixture | 1 |
12 | Carrying Case with Carrying Strap | 1 |
*Export-standard Carton Box with PE Foam inside (43*32.5*26.5cm)
*T-308XF = T-308X + SOC fixture(for SC/LC/FC connector)
Pictures

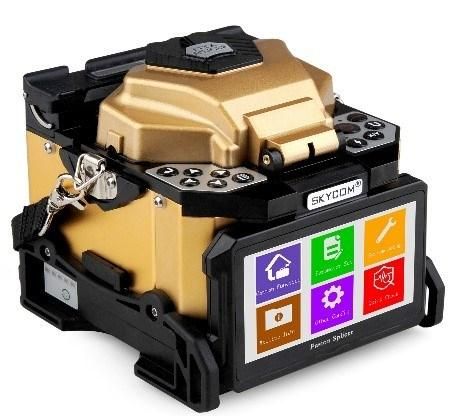

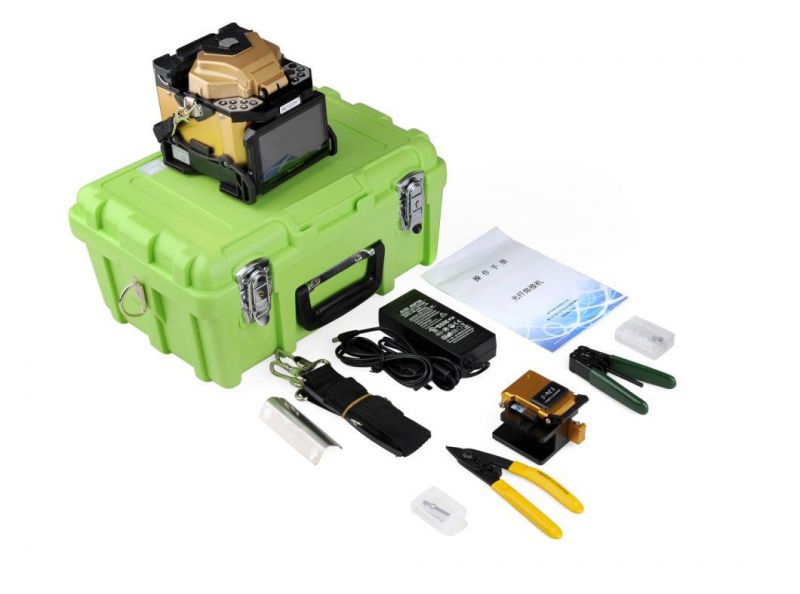

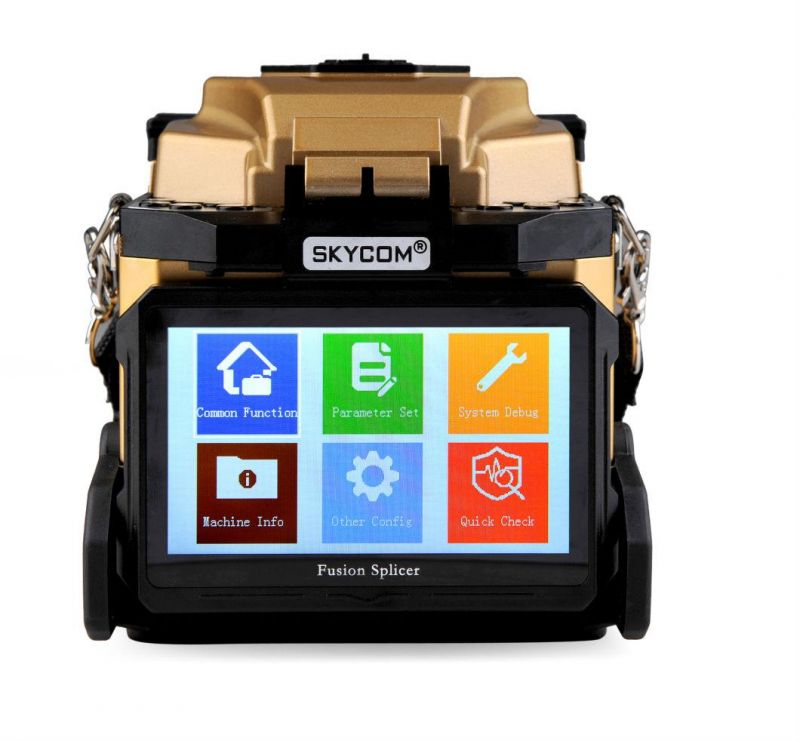

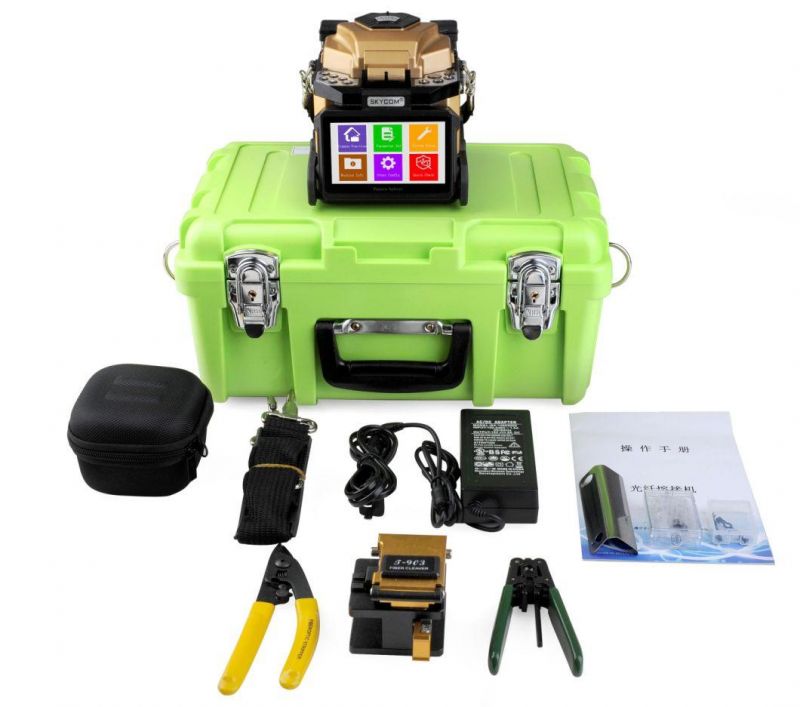

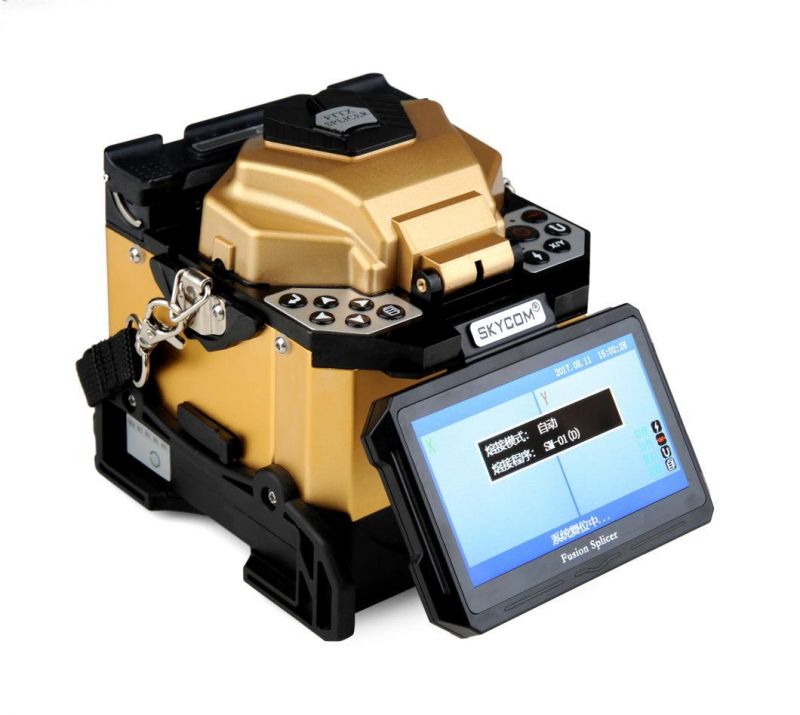

T-308X Machine Package
