Ce Certificate PVC Insulated Copper H05V-U H05V-R H05V-K Wire Cable

Henan Hongda Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Solid or Stranded
  • Application：Housing Used
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：H05V-U H05V-R H05V-K
  • Material Shape：Round Wire
  • Range of Application：Normal Electrical Used
  • Certification：ISO9001, CCC
  • Brand：Hongda
  • Product Name：H05V-U H05V-R H05V-K
  • Standard：Ce
  • Color：as Your Require
  • Core Number：as Your Require
  • Rated Voltage：Under 1kv
  • Rated Temperature：70c 90c 120c 200c
  • Armour：None Armour
  • Strand Number：7, 19, 37, 54, 61, 91
  • Purity of Copper Conductor：99.99%
  • Transport Package：Plastic Film, Plastic Drum
  • Specification：0.5mm2-400mm2
  • Trademark：Hongda
  • Origin：Henan China
  • HS Code：8544492900
  • Production Capacity：3000km,Month

Description

Rated voltage300/500VTest voltage2000VFlexing bending radius12.5 x ØStatic bending radius12.5 x ØFlexing temperature-5º C to +70º CStatic temperature-30º C to +80º CFlame retardantIEC 60332.1Insulation resistance10 MΩ x km


4. Packing:
a)Packing lengths: 100ft/roll, 100m/roll, 300ft/roll.
b) Inner packing: wooden drum, plastic drum, paper drum.
c) Outer packing: carton box, pull out box.
d) Other packing available according to customer.
5 . Specifications
Cabel H05V-K PVC electric wire 300/500V Specification

CONSTRUCTION
n x mm2		OUTER DIAMETER
cca. mm		Cu WEIGHT
kg / km		CABLE WEIGHTcca.
kg / km
1 x 1.5314,420
1 x 2.53,62430
1 x 44,13850
1 x 64,65865
1 x 10696110
1 x 167154165
1 x 258,5240242
1 x 359,9336350
1 x 5011,7480482
1 x 7011,7672662
1 x 9515,3912885
1 x 12016,811521123
1 x 15019,214401390
1 x 18521,317761733
1 x 24023,823042264

H05V-U PVC electric Cable 300/500V Specification

AWGNo. of Cores x
Nominal Cross Sectional Area
# x mm²		Nominal Overall
Diameter
mm		Nominal Copper
Weight kg/Km		Nominal Weight
kg/Km
201 x 0.52.14.89
181 x 0.752.27.211
171 x 12.49.614
161 x 1.52.914.421
141 x 2.53.52433
121 x 43.93849
101 x 64.55869
81 x 105.796115

H05V-R PVC wires 300/500V Specification

AWGNo. of Cores x
Nominal Cross Sectional Area
# x mm²		Nominal Overall
Diameter(mm)		Nominal Copper Weight
kg/Km		Nominal Weight
kg/Km
20(7/29)1 x 0.52.24.89
18(7/27)1 x 0.752.47.212
17(7/26)1 x 12.69.615

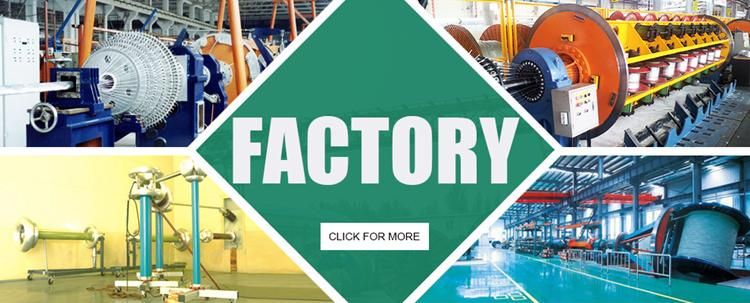

6.Factory

Ce Certificate PVC Insulated Copper H05V-U H05V-R H05V-K Wire Cable
     Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
     Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment
7.Packing and Transportation
  We provide you with the best product packaging design services, thereby allowing you to save more shipping charges
Ce Certificate PVC Insulated Copper H05V-U H05V-R H05V-K Wire Cable
6.Certificate
Ce Certificate PVC Insulated Copper H05V-U H05V-R H05V-K Wire Cable
7.FAQ
   Q: Are you the factory or the trading company?
   A: We are the factory.

   Q: How long is your guarantee Period?

    A: We uaually offer 1 year guarantee for our general products.

   Q: How can I get the samples?

    A: We can make the sample order. And usually we will charge for it.

        But the samples fee will be return to you when you make the bulk order.

   Q: Where is your factory? How can we visit your factory?

    A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.

        We can pick you up in the airport and the railway station.

   Q; What is your MOQ?

    A: It`s base on the cable type or wire type.
