0.6/1kv 3/4/3+1/5 Cores Multicore Copper XLPE/PVC Insulated Power Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire
  • Wire Core Material：Bare Copper Wire

Base Info

  • Model NO.：multicore Copper cable
  • Certification：ISO, CCC, CE, RoHS
  • Model：YJV
  • Brand：Hongda
  • Armour：Steel Tape Armour
  • Conductor Material：Copper
  • Standard：IEC
  • Quality Guarantee：Ten Years
  • Core：3, 4, 5, 6 Cores
  • Insulated Color：White, Red, Blue, Yellow, Green
  • Sheath Color：Black
  • Sample：Yes
  • Manufacture：Yes
  • Transport Package：Wooden Drum
  • Specification：0.6,1KV Copper power cable
  • Trademark：Hongda
  • Origin：China, Henan
  • HS Code：8544492100
  • Production Capacity：3000km,Per Months

Description

SoilCUALCuAlCuAlmm2mmmmmmmmmmkg/kmkg/kmAAAA5×4 RE2.240.71.61.820.2925800372846355×6 RE2.760.71.61.821.61098918473756465×10 CC3.80.71.61.823.813991083644776565×16 CC4.80.71.61.826.317911289846498765×25 CC6.00.91.61.833.52488170611584126985×35 CC7.00.92.01.937.7333922581411151521265×50 SM8.01.02.02.038.2393224681721411811525×70 SM9.51.12.02.341.9512230042181722221815×95 SM11.01.12.52.447.9702940962692182672225×120 SM12.41.22.52.652.2848747783132693052675×150 SM13.81.42.52.7551001654603593133443055×185 SM15.41.62.52.960.51221864954053593833445×240 SM17.51.72.53.166.51535378454514054423835×300 SM19.61.82.53.473.71941910034497451461422



5. Construction.

Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Colour identification
1 Core : Red or Black
2 Cores : Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Assembly /Inner Sheath :Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour:Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.


6. Packaging&Delivery.

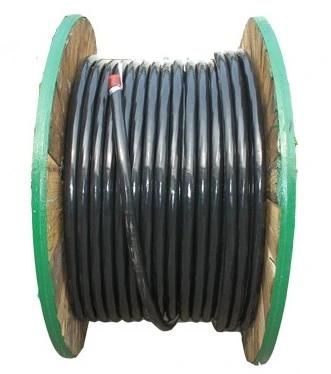

0.6/1kv 3/4/3+1/5 Cores Multicore Copper XLPE/PVC Insulated Power Cable
 0.6/1kv 3/4/3+1/5 Cores Multicore Copper XLPE/PVC Insulated Power Cable

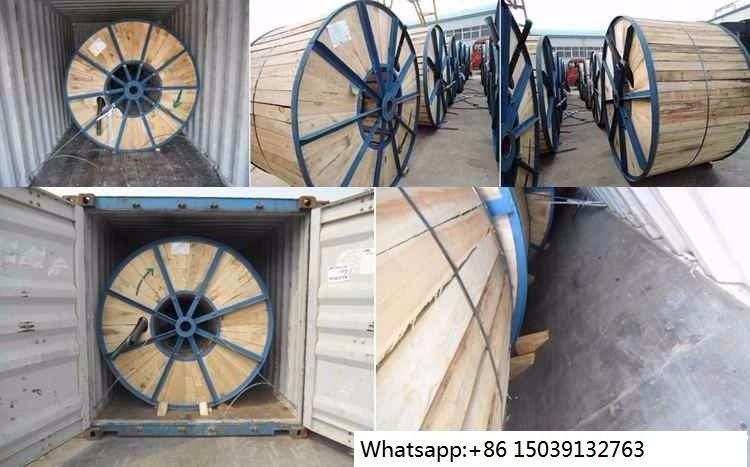

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)
