• Model NO.：RG6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC
• Origin：Hangzhou, China
• HS Code：8544200000
• Production Capacity：30, 000piece,Year

Basic Info.

Model NO. RG6 Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC Origin Hangzhou, China HS Code 8544200000 Production Capacity 30, 000piece/Year

Product Description

Basic Info

Model NO.: RG6 Cable (FS-RG6)
Wire Core Material: Bare Copper Wire
Certification: CE, ISO, RoHS, CCC, UL
Model: RG6
Brand: Fulsan
Coaxial Cable: RG6/Rg6u
Trademark: FULSAN
Transport Package: Plastic Drum/Wooden Drum
Specification: UL, CE, RoHS
Origin: China
HS Code: 854442

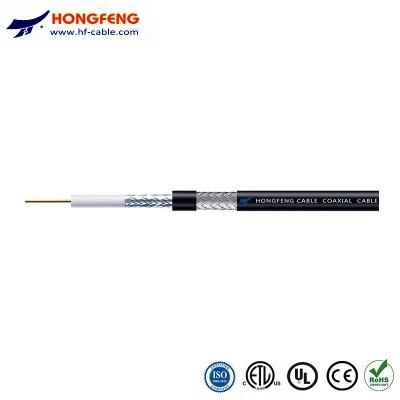

Coaxial Cable( RG6/RG6U) 17vatc / 19vatc:

Specifications:
1) 1.02mmCCS +4.57mmFoamed PE +A/P(bonded)+60% AL Braiding + 6.91mmPVC
2) Customers' specifications are welcomed.

Note:
1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire: AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available;
6) Braiding coverage: Between 30- 97% available;
7) PVC jacket of Flame retardant, UV, or UL available.

Characteristics:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 52 pF/m
Return Loss: 20dB min
Attenuation: [@68 F. (20 C) ] dB/100meters
5MHz: 1.90dB 500MHz: 15.09dB
55MHz: 5.25dB 600MHz: 16.73dB
83MHz: 6.40dB 750MHz: 18.54dB
187MHz: 9.35dB 1000MHz: 21.49dB
211MHz: 10.00dB 1450MHz: 26.16dB
250MHz: 10.82dB 1800MHz: 27.73dB
350MHz: 12.63dB 2100MHz: 31.15dB
400MHz: 13.61dB 2250MHz: 34.03dB

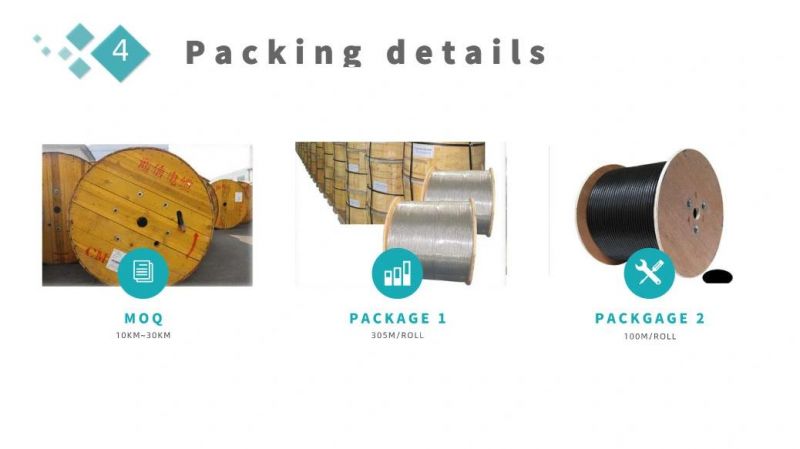

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

Usage: Securitity alarm
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
