32-10 AWG Size Single Core Halogen Free Hook-up Wire Electrical Wire Cable

B&T (Zhangzhou) Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Solid and Stranded
  • Application：The Wiring for Appliance
  • Conductor Material：Copper
  • Insulation Material：XLPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：ul3386
  • Range of Application：Heat Resistance
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Bort
  • Product Name：UL Certificated Copper 2mm Electrical Wire
  • Conductor：Stranded, Tinned or Bare Copper Conductor Sample
  • Sample：Conventional Sample Free
  • Producing Experience：10 Years
  • No. of Cores：One Core or Multi-Cores
  • Colors：Could Be Customized Color
  • Delivery Time：in 7-10days
  • Packing：100m,Roll, 305m,Roll, Wrap Plastic Film Packaging
  • Company Type：Manufacturer
  • Service：OEM, ODM
  • Transport Package：100m,Roll, 305m,Roll, Wrap Plastic Film Packaging
  • Trademark：Bort
  • Origin：China
  • Production Capacity：300000km

Description

Basic Info.

Model NO. ul3386 Range of Application Heat Resistance Certification ISO9001, CE, UL, RoHS Brand Bort Product Name UL Certificated Copper 2mm Electrical Wire Conductor Stranded, Tinned or Bare Copper Conductor Sample Sample Conventional Sample Free Producing Experience 10 Years No. of Cores One Core or Multi-Cores Colors Could Be Customized Color Delivery Time in 7-10days Packing 100m/Roll, 305m/Roll, Wrap Plastic Film Packaging Company Type Manufacturer Service OEM, ODM Transport Package 100m/Roll, 305m/Roll, Wrap Plastic Film Packaging Trademark Bort Origin China Production Capacity 300000km

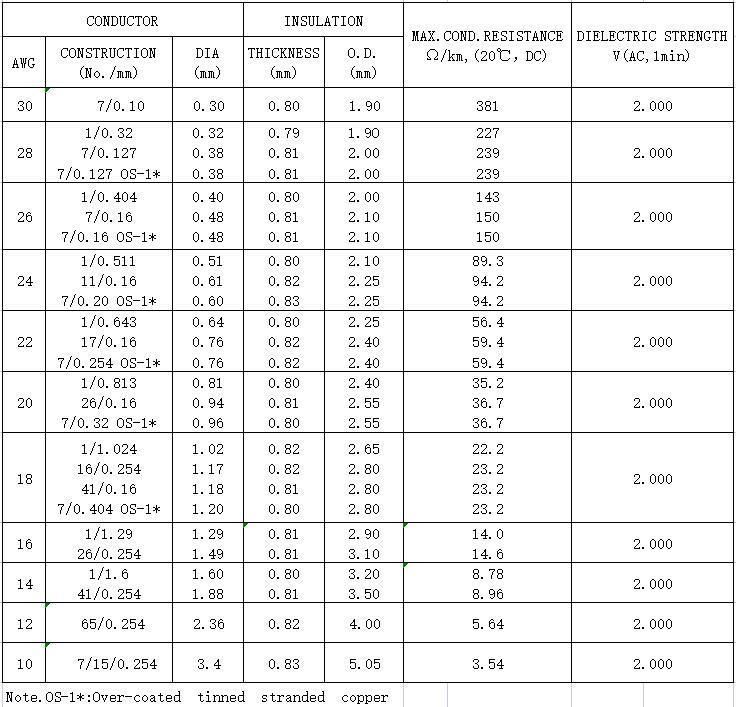

Product Description

Rated temperature:105ºC
Rated voltage:600V
Reference standard:UL758,UL1581,CSA C22.2No.210.2
Solid or stranded ,tinned or bare copper conductor 32~10AWG
XLPE insulation ,comply with ROHS environmental standard
Passes UL Horizontal and CSA FT2 flame test
Uniform insulation thickness to ensure easy stripping and cutting
For general purpose internal wiring of appliance

32-10 AWG Size Single Core Halogen Free Hook-up Wire Electrical Wire Cable
