• Model NO.：HFP95
• Material Shape：Flat Wire
• Certification：ISO9001
• Flame Restardant：B1 Class
• Standard Length：4m
• Conductor Cross Section：8 Sqmm
• Max.Current：660V
• Poles：5,6,7,8,9,10 Ploes
• Transport Package：Naked
• Specification：HFP
• Trademark：NANTE
• Origin：China
• HS Code：8544422900
• Production Capacity：10000000 Meter,Meters Per Year

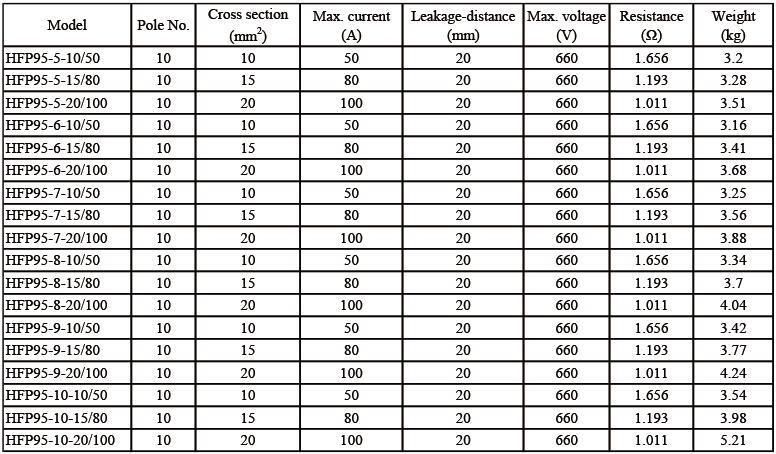

Basic Info.

Model NO. HFP95 Material Shape Flat Wire Certification ISO9001 Flame Restardant B1 Class Standard Length 4m Conductor Cross Section 8 Sqmm Max.Current 660V Poles 5,6,7,8,9,10 Ploes Transport Package Naked Specification HFP Trademark NANTE Origin China HS Code 8544422900 Production Capacity 10000000 Meter/Meters Per Year

Product Description

Specifications

 1. Mutiple Poles Powerail System for Overhead Crane
2. Multiple Enclosed conductors system
3. Certification: CCC, ISO, CE


Mutiple Poles Powerail System for Overhead Crane, HFP56 Powerail Conductor Bar Systems Conductor Rail, Powerails, Conductor Bar, Bus Bar, DSL System, Conductor Trolley Bar, IGS



Application

The ranges of applications of HFP Power Rail Enclosed Conductor System

1. Overhead and elongated tracks for cranes.
2. Electric hoists, electric tools, stacking systems.
3. Electric tools
4. Other applications for supplying power to moving power load.

 Design features:

 Compact arrangement, corrosion resistance and simple assembly are its essential features.

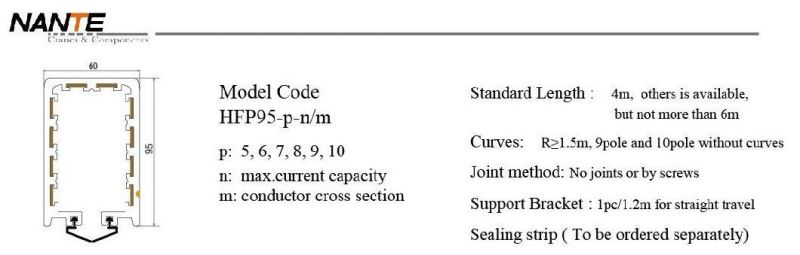

Housing

Color green, PVC housing for 4 conductors. Standard section 4 m.

Other sections are available.

The ground conductor is identified by international color code.

Phase reversing prevented by design of the collector and housing.



Current collectors

The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.

Spring loaded carbon brushes maintain uniform contact.

Connecting cables and hinged or flexible towing arms included.

Double Current collectors for transfer applications and higher amperage.
