Cable & Wire

Home > Product > Electric Wire & Cable

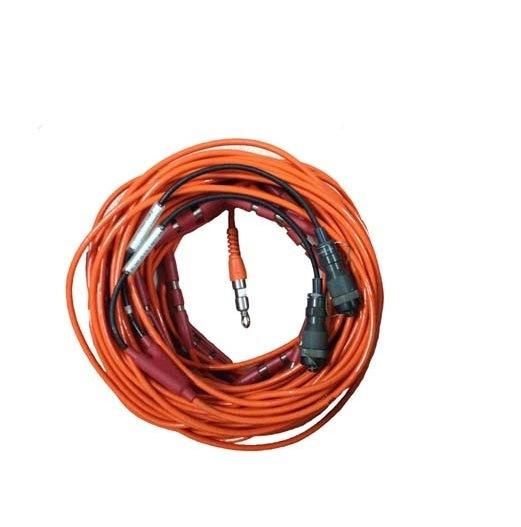

24 Channel Seismic Spread Cable Seismic Refrection Cable for Geode Pasi Seismic Cables

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Underground
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：Cable
  • Material Shape：Round Wire
  • Range of Application：Mine
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Standard Configuration：125m Length
  • Configuration：24 Take-out
  • Transport Package：Standard Export Plywood Case
  • Specification：CE, SGS, ISO9001
  • Trademark：Gold
  • Origin：Chongqing, China
  • Production Capacity：100 Sets Per Month

Description

TypeSeismic CableNumber of Channel

12-channel /24-channel/48-channel

Optional

Connector Type

27-pin connector/

50-pin connector/

55-pin connector/

61-pin connector/

Optional

Cable O.D7.2mm(32cores)/9.2mm(54cores)Take-out

Split Spring Clip Take-out Molded Type/

Split Spring Take-out Ordinary Type/

Mueller Take-out/

Kooter Take-out/

KCK Take-out/

Optional

Lead-inCustom Lead-in LengthIntervalCustom Interval DistanceWorking Temperature-40ºC~+70ºC

24 Channel Seismic Spread Cable Seismic Refrection Cable for Geode Pasi Seismic Cables24 Channel Seismic Spread Cable Seismic Refrection Cable for Geode Pasi Seismic Cables
We are Specializes In Resistivity Cables/Refraction Cables/Land Cables/Hydrophone Cables/Geophone Assemblies/Custom Cables/Seismic Connectors
Exhibition Show
24 Channel Seismic Spread Cable Seismic Refrection Cable for Geode Pasi Seismic Cables


Certificate
24 Channel Seismic Spread Cable Seismic Refrection Cable for Geode Pasi Seismic Cables
