U-1000 Ar2V, Power Cable, 0.6/1 Kv, Al/XLPE/PVC (NF C 32-321)

Jiangsu Boan Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Underground
  • Conductor Material：Aluminum
  • Sheath Material：PVC
  • Insulation Material：XLPE

Base Info

  • Model NO.：U-1000 AR2V
  • Material Shape：Round Wire
  • Range of Application：Installation
  • Certification：ISO9001, CCC
  • Brand：Boan
  • Manufacture Standard：NF C 32-321
  • Rated Voltage：0.6,1 Kv
  • Class of Conductor：2
  • Number of Cores：1-5
  • Size：16-400 mm2

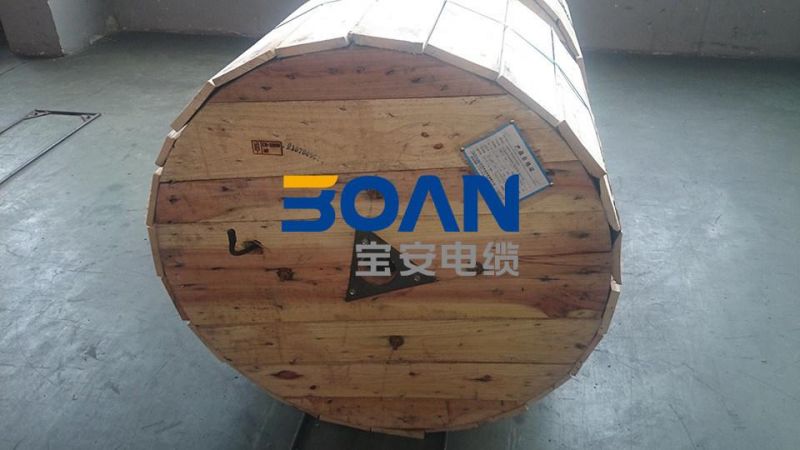

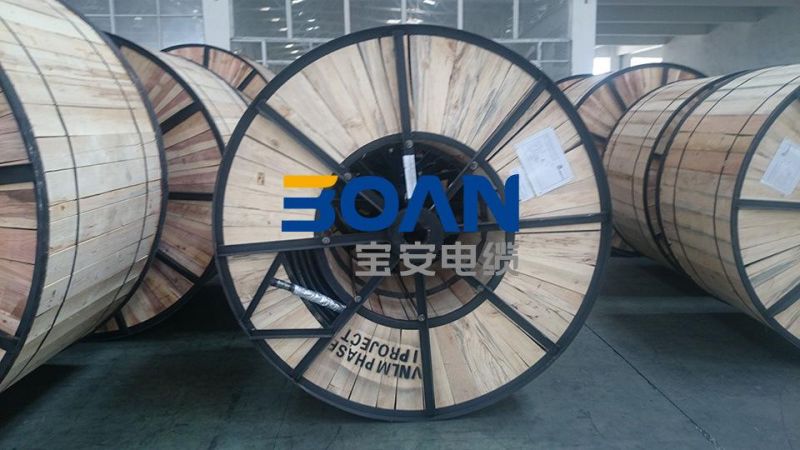

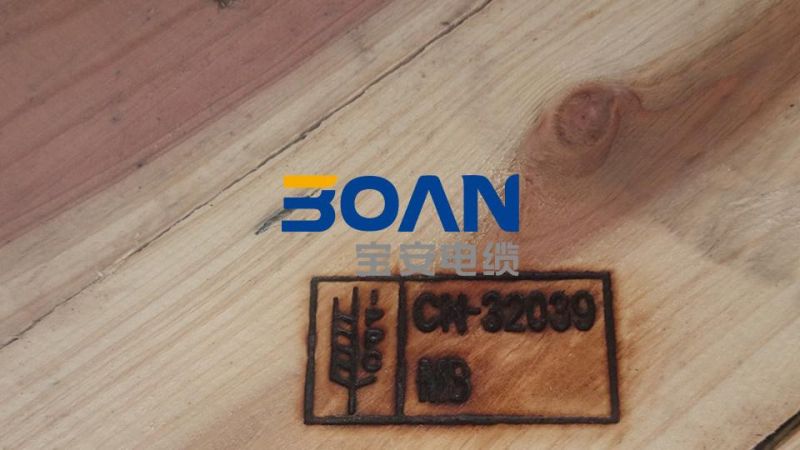

  • Transport Package：Fumigated Steel-Wooden Drum,Wooden Drum
  • Specification：NF C
  • Trademark：DingAn or OEM
  • Origin：Jiangsu Yixing, China
  • HS Code：8544492100
  • Production Capacity：38000 Km,Year

Description

Basic Info.

Model NO. U-1000 AR2V Material Shape Round Wire Range of Application Installation Certification ISO9001, CCC Brand Boan Manufacture Standard NF C 32-321 Rated Voltage 0.6/1 Kv Class of Conductor 2 Number of Cores 1-5 Size 16-400 mm2 Transport Package Fumigated Steel-Wooden Drum/Wooden Drum Specification NF C Trademark DingAn or OEM Origin Jiangsu Yixing, China HS Code 8544492100 Production Capacity 38000 Km/Year

Product Description

U-1000 AR2V, 0.6/1 KV,  AL/XLPE/PVC Power Cable (NF C 32-321)
Low voltage power cable for fixed application,  Aluminium conductor, XLPE insulation and PVC outer sheath.

Standard
International :  IEC 60228; IEC 60502-1
NF C: NF C 32-321

Application
U-1000 AR2V aluminium cables can be used in all low voltage power installations.This product is used in photovoltaic applications.

Installation
These cables can be fixed on cable trays, within conduits or fixed to walls.They also can be buried directly with extra mechanical protection.

Structure
Conductor: stranded circular aluminium - class 2
Insulation: XLPE - cores identification by colours
Laying up (for multi conductors): with non hygroscopic filler
Outer sheath : Lead free black PVC
.
Number of cores and crosssectionShape of conductorDiameter (approx.)Cable massRadius of bendEffect. resist. of conductors
mm2
mmkg/kmmmOhm/km
1x10RE8881203,08
1x16RE/RMV91151351,91
1x25RMV111591651,20
1x35RMV121971800,868
1x50RMV142472100,641
1x70RMV163262340,443
1x95RMV174222610,320
1x120RMV195102840,253
1x150RMV216313200,206
1x185RMV247713540,164
1x240RMV269723930,125
1x300RMV2911884340,100
1x400RMV3214984860,0778
1x500RMV3618825420,0605
2x10RE153022253,08
2x16RE/RMV174052551,91
2x25RE/RMV216083151,20
2x35RE/RMV237523450,868
3x10RE163301923,08
3x16RE/RMV184452161,91
3x25RE/RMV226852641,20
3x35RE/RMV/SM258503000,868
3x50SM268943080,641
3x70SM2911623520,443
3x95SM3314573910,320
3x120SM3618024340,253
3x150SM4121854860,206
3x185SM4527095400,164
3x240SM5033736010,125
3x300SM5540716600,100
3x50+35SM/RMV2910993480,641
3x70+50SM/RMV3213923820,443
3x95+50SM3617184310,320
3x120+70SM3921374730,253
3x150+70SM4425355290,206
3x185+70SM4931015880,164
3x240+95SM5538686580,125
4x10RE173852043,08
4x16RE/RMV205352421,91
4x25RE/RMV248052881,20
4x35RE/RMV/SM258702980,868
4x50SM2911233420,641
4x70SM3214753880,443
4x95SM3618684360,320
4x120SM4023234840,253
4x150SM4528165400,206
4x185SM5035156040,164
4x240SM5643926760,125
4x300SM6253107440,100
5x10RE194452283,08
5x16RE/RMV226022641,91
5x25RE/RMV279253241,20
