• Model NO.：THHN,THWN,TWN75,T90 8awg
• Material Shape：Round Wire
• Range of Application：Building or Dwelling
• Certification：ISO9001, CE, UL, CCC
• Brand：Yifang
• Size：6,8,10,12,14AWG
• Voltage：600V
• Temperature：Dry-Not Exceed 90 C
• Standards：UL 83
• Color：Black, White, Red, Blue, Green, Yellow
• Transport Package：Wooden Drum
• Specification：ce ul
• Trademark：yifang
• Origin：Zhengzhou, China
• HS Code：8544492100
• Production Capacity：300km,Month

Basic Info.

Model NO. THHN/THWN/TWN75/T90 8awg Material Shape Round Wire Range of Application Building or Dwelling Certification ISO9001, CE, UL, CCC Brand Yifang Size 6,8,10,12,14AWG Voltage 600V Temperature Dry-Not Exceed 90 C Standards UL 83 Color Black, White, Red, Blue, Green, Yellow Transport Package Wooden Drum Specification ce ul Trademark yifang Origin Zhengzhou, China HS Code 8544492100 Production Capacity 300km/Month

Product Description

600v,building wire,THHN/THWN/TWN75/T90

Application


Type THHN or THWN-2* conductors are primarily used in conduit and cable
trays for services, feeders and branch circuits in commercial or industrial applications as
specified in the National Electrical Code®2
? When used as Type THHN, conductor is suitable for use in dry locations at temperatures
not to exceed 90°C
? When used as Type THWN-2*, conductor is suitable for use in wet or dry locations at
temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant
? When used as Type MTW, conductor is suitable for use in wet locations or when exposed
to oil or coolant at temperatures not to exceed 60°C or dry locations at temperatures not to
exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79)
? Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as
appliance wiring material. Voltage for all applications is 600 volts


STANDARDS & REFERENCES
Type THHN or THWN-2* or MTW (also AWM) meets or exceeds all applicable
ASTM specifications, UL Standard 83, UL Standard 1063 (MTW), Federal Specification
A-A-59544 and requirements of the National Electrical Code.® RoHS Compliant.


CONSTRUCTION

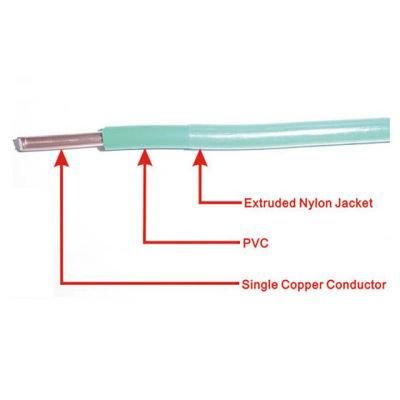

?Type THHN or THWN-2* or MTW copper conductors are annealed (soft) copper,
insulated with a tough heat and moisture resistant polyvinyl chloride (PVC), over which a
nylon (polyamide) or UL-listed equal jacket is applied
? Available in black, white, red, blue, green, yellow, brown, orange and grey; some colors
standard, some subject to economic order quantity
SPECIFICATIONS
? MTW or THHN or THWN-2:
Conductors shall be UL-listed Type MTW or THHN or THWN-2* gasoline and oil
resistant II, suitable for operations at 600 volts as specified in the National Electrical
Code.® Sizes 14 through 6 AWG shall be rated VW-1. Conductors shall be annealed
copper, insulated with high-heat and moisture resistant PVC, jacketed with abrasion,
moisture, gasoline and oil resistant nylon or listed equivalent, as manufactured by
Southwire Company or approved equal.
? AWM:
Conductors shall be UL-listed Type THHN or THWN-2* or MTW or AWM, suitable for
operation at 600 volts at conductor temperatures not to exceed 105°C.


Building wire is generally used to carry electrical current to all external uses of power in a building or dwelling. This product is utilized in the construction of almost every industrial, residential and commercial building. The most popular type is THHN building wire.
THHN Wire stands for Thermoplastic High Heat-resistant Nylon coated. THHN can come in stranded or solid conductors depending on the size. It is either manufactured in copper or aluminum and covered in a PVC (polyvinyl chloride) insulation with a nylon jacket. THHN is UL listed with a rated 90 degrees Celsius in dry locations or 75 degrees Celsius in wet applications with a THWN rating. The vast majority of THHN building wire carries a dual rating on the cable marked THHN / THWN for both the wet and dry temperature rating. THHN building wire may also be used for wiring of machine tools, control circuits or on certain appliances.
THHN building wire has several main distinctions compared to other building wire products. THHN uses a thinner PVC insulation which is a key factor in terms of its electrical properties. This thinner insulation can often lead to a current leakage and even a breakdown during chemical or environmental exposure. The PVC insulation in THHN also creates a toxic smoke when burned therefore making it undesireable in certain applications.
THHN is not a very flexible product due to its nylon coating. This can often be a factor for many contractors or end users since there is usually a preference to use a product that saves energy and time during installation. However, THHN building wire has grown in popularity since it is a cost effective alternative compared to other types of building wire such as XHHW building wire. Despite some of its down falls, many users of THHN building wire have found this products to be sufficient for meeting their projects specifications.
