• Model NO.：Single Fiber Optic Splice Sleeves

Basic Info.

Model NO. Single Fiber Optic Splice Sleeves

Product Description

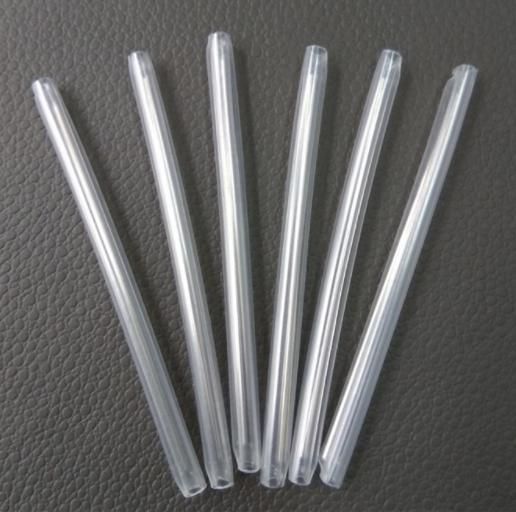

Heat-Shrink Single Fiber Optic Splice Protection Sleeves

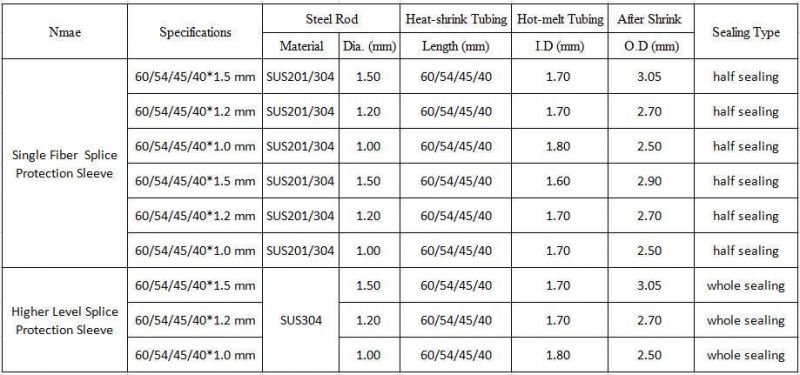

*Specifications

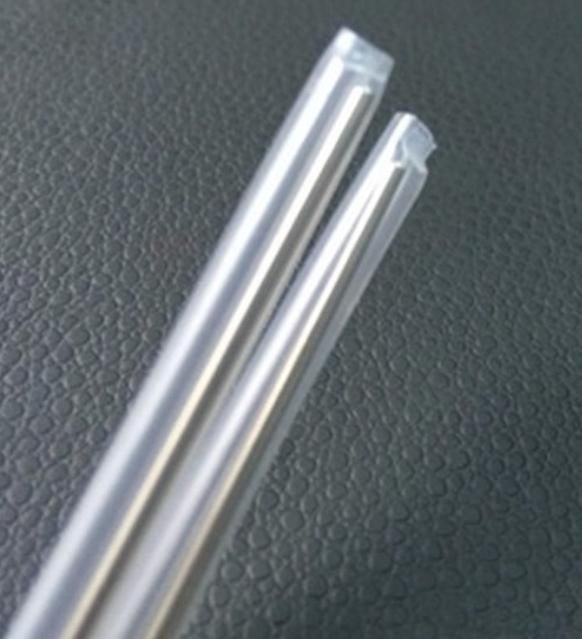

1.It consists of heat-shrinkable tube,hot fusion tubing and reinforced steel rod, specially designed for the connection of fanout optical fiber. 2.Keep the transmission properties of the optical fiber. 3.Protect the connection point of the optical fiber, add its mechanism strength and lower down the risk in damaging the optical fiber during installing. 4.Pre-shrink at the both ends of the heat-shrinkable tube. The transparent sleeves make it easy to see the sate of fiber connection. 5.The core material is stainless steel rod, polished both ends, in case of optical fiber breakage. 6.Quickly shrink for high work efficiency. 7.High work temperature with a range of -55 degree to 100 degree, shrinking temperature about 120 degree. 8.Steel rod diameter: 1.5mm/1.2mm/1.0mm/0.8mm 9.The conventional length of heat-shrinkable tubing: 60mm/54mm/45mm/40mm. 10.Accept customized specification.
 Application: fiber protection sleeves applied to fiber optic splice closure
