18/30/36kv NFC 33 226 3X240 mm2 Alu Cis Cable Hta Torsade Cable

YIFANG ELECTRIC GROUP INC.
  • Rated Voltage：18,30kv
  • Conductor：Copper
  • Insulation Screen：with Powder Over It
  • Sheath：PE
  • Sheath Color：Black
  • Cores：Three Bundles

Base Info

  • Model NO.：3x240 NFC 33 226
  • Section Area：150mm2
  • Country Exported：West Africa:Togo,Cote Diva,etc
  • Other Sizes：3X150mm2
  • Other Voltage：12,20kv
  • Transport Package：Wooden Drum or Wooden Steel Drum
  • Specification：1.1m drum or 2.2drum
  • Trademark：Yifang Cable
  • Origin：China
  • HS Code：8544601200
  • Production Capacity：1000km Per Month

Description

DESCRIPTIONUtilisationLe câble MT NFC 33-226 est destiné à la distribution publique moyenne tension HTA 12/20 kV.Il peut être constitué de 1 ou 3 conducteurs de phase.L'étanchéité longitudinale est assurée par une poudre gonflante.La technologie de sa fabrication permet de le poser sans protection mécanique
supplémentaire. Norme : NF C 33 226, IEC 60502-2



N0Fiches TechniquesUnitésDonnées SpécifiquesDonnées du fabricant1Fabricant A indiquerYIFANG ELECTRIC GROUP INC.2Norme CEI ou équiv.IEC60502-2, NFC 332263Conducteur AluAlu4Isolation PRPR(XLPE)5Souplesse Classe 2Classe 26Tension maximalekV36 kV36 kV7Fréquence nominale 50 Hz50 Hz8Sectionmm21x3x2401x3x2409Intensité régime permanent enterré à 20°CA39839810Température max. âme°C709011Masse approximativeKg/km5539553912Chute de tension à cos phi = 0,8V/A/km0,330,3313Marquage 18/30 à 36 kV C33 22618/30 à 36 kV C33 226 1x3x240 mm² Alu1x3x240 mm² Alu marquage métrique, la norme etmarquage métrique, la norme et CEET sur chaque conducteur à chaque 2 mètres.CEET sur chaque conducteur à chaque 2 mètres.14Couleur NoirNoir

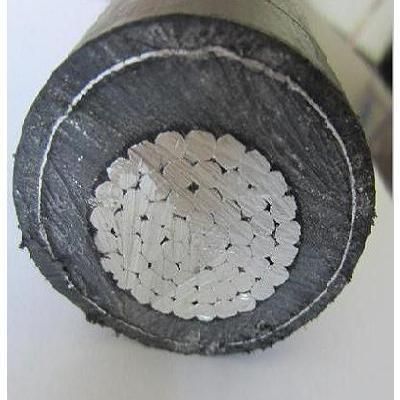

18/30/36kv NFC 33 226 3X240 mm2 Alu Cis Cable Hta Torsade Cable

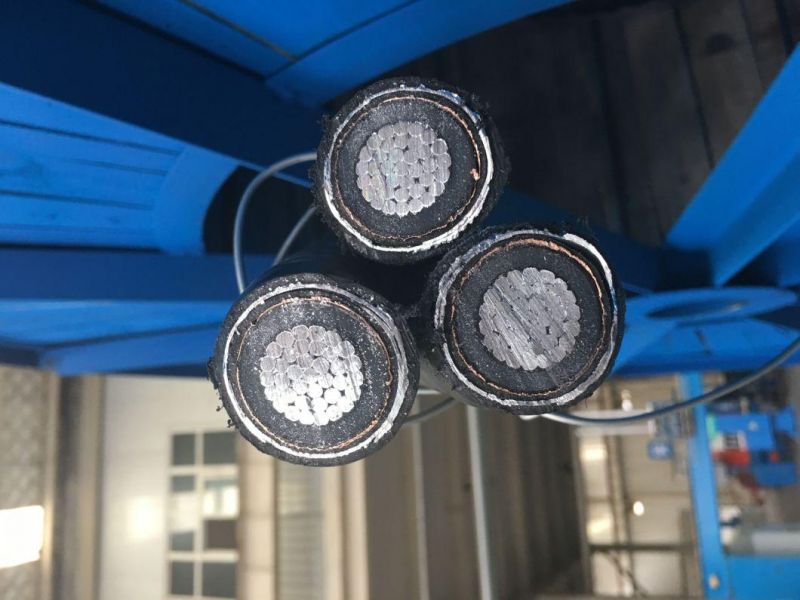

18/30/36kv NFC 33 226 3X240 mm2 Alu Cis Cable Hta Torsade Cable18/30/36kv NFC 33 226 3X240 mm2 Alu Cis Cable Hta Torsade Cable

Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.

18/30/36kv NFC 33 226 3X240 mm2 Alu Cis Cable Hta Torsade Cable
Our certificate

18/30/36kv NFC 33 226 3X240 mm2 Alu Cis Cable Hta Torsade Cable
FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
