Fcj Opto Tech Cassette 1xmpo/MTP-LC Dx 24f Max Full Loaded Cassette for FHD MPO-LC 72f Optical Fiber Patch Panel
Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：Can Be Customized
- Material Shape：Flat Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：Fiber Optic Cassette
- Core：Multicore
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Fcj Opto Tech
- Sheath Material：Lzsh
- Jacked Color：Blue, Orange, Green, White etc.
- Temperature Range：-20~70 Degree
- Transport Package：Carton Box
- Specification：2KM, 3KM
- Trademark：Fcj Opto Tech.
- Origin：China
- HS Code：854470000
- Production Capacity：8000km,Month
Description
Product Description

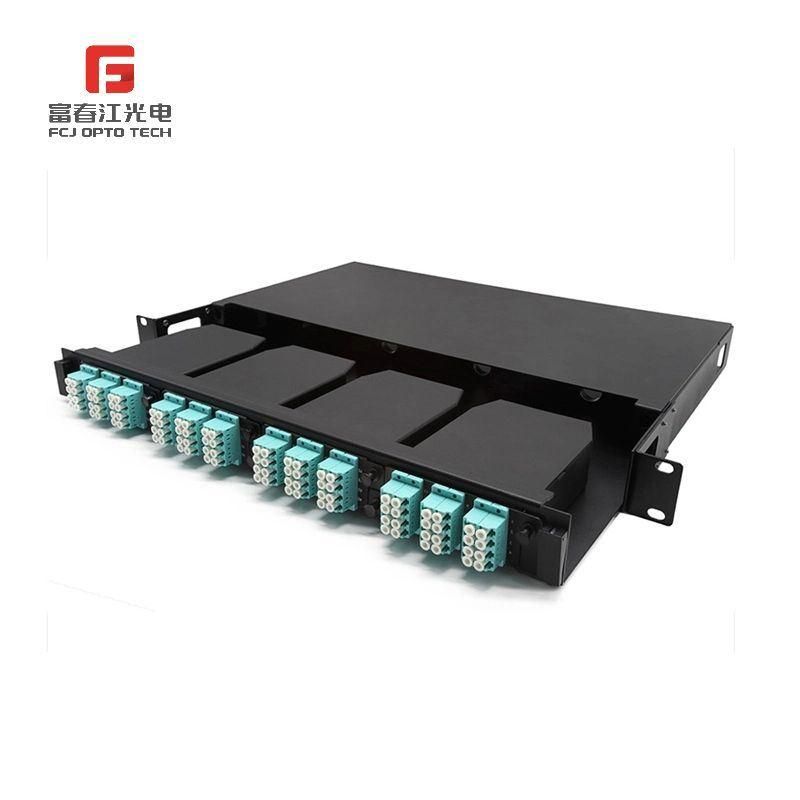

MPO/MTP cassette capable of accepting 6-24 fibers. These cassettes are suitable for use with Singlemode, Multimode 62.5 and 50um, as well as Laser Optimized, OM3 applications and are available in LC, SC, ST, FC, MTRJ connector types.
MPO/MTP cassette comes pre-installed with the required adapters featuring Zirconia Ceramic sleeves for enhanced compatibility with all applications. Adapters are color-coded according to the application in use (Blue = 9/125; Beige = 62.5 and 50um; Aqua = OM3; Green = APC). All adapters come standard with dust covers.
Implementation of the structured cabling in Data Centers
FEATURES
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
