22/4 Cmr 1000FT White Pull Box Security Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, Alarm Cable Security Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Material Shape：Round Wire
  • Conductor Type：Solid
  • Certification：CE, ISO, RoHS, CCC, ETL,CPR

Base Info

  • Brand：Risun or OEM
  • Insulation：PVC
  • Sheath：PVC
  • Conductor：0.61mm
  • Shield：Unshield
  • Transport Package：100m,Coil, 305m,Pull Box, 500m,Wooden Drum
  • Origin：Hangzhou, Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

SheathMaterial : PVC
Electrical Properties

Voltage RatingELV
Max. Conductor DC Resistance @ 20°C93.3Ω/km
Min. Insulation Resistance @ 20°C50MΩ.km
Voltage Test: Conductor to core1.5 kV ac/1min
Voltage Test: Core to sheath3.0 kV ac/1min

Mechanical Properties

Operating Temperature Range -15 to 70ºC
Max. Recommended Pulling Tension56N
Min. Bend Radius (install)36mm
Approximate Mass1.92kg/100m

Package

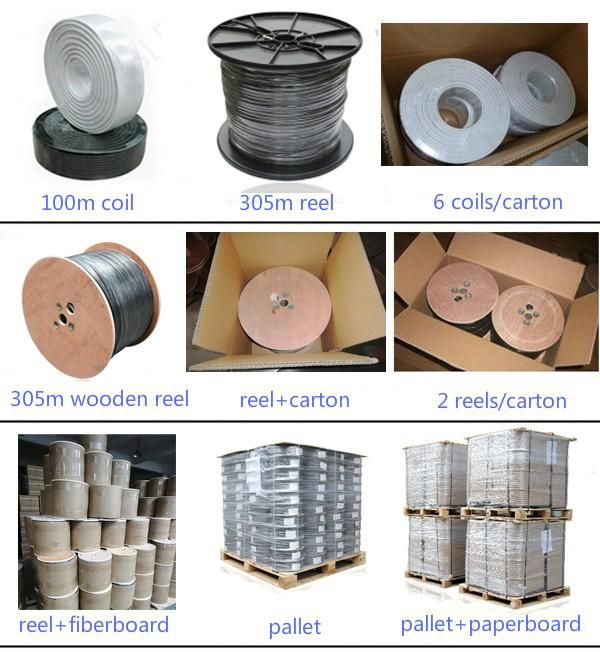

100m/coil,305m/relex box,500m/wooden drum or according to your request
22/4 Cmr 1000FT White Pull Box Security Cable
 Company Profile
 Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.95% of our goods for the export market. 15 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.in the past 15 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification. We will be your trusted partner.

22/4 Cmr 1000FT White Pull Box Security Cable
 22/4 Cmr 1000FT White Pull Box Security Cable

process of production:

22/4 Cmr 1000FT White Pull Box Security Cable
