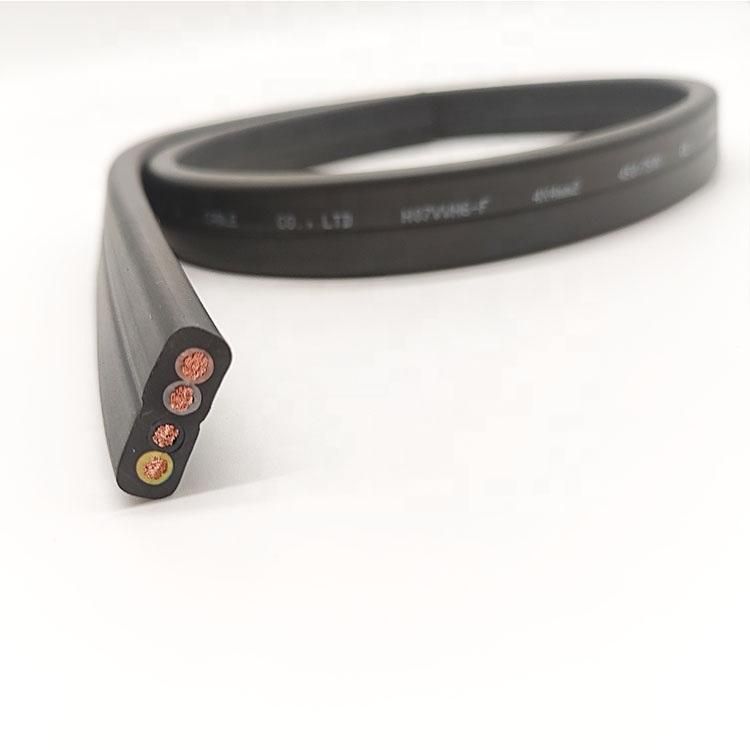

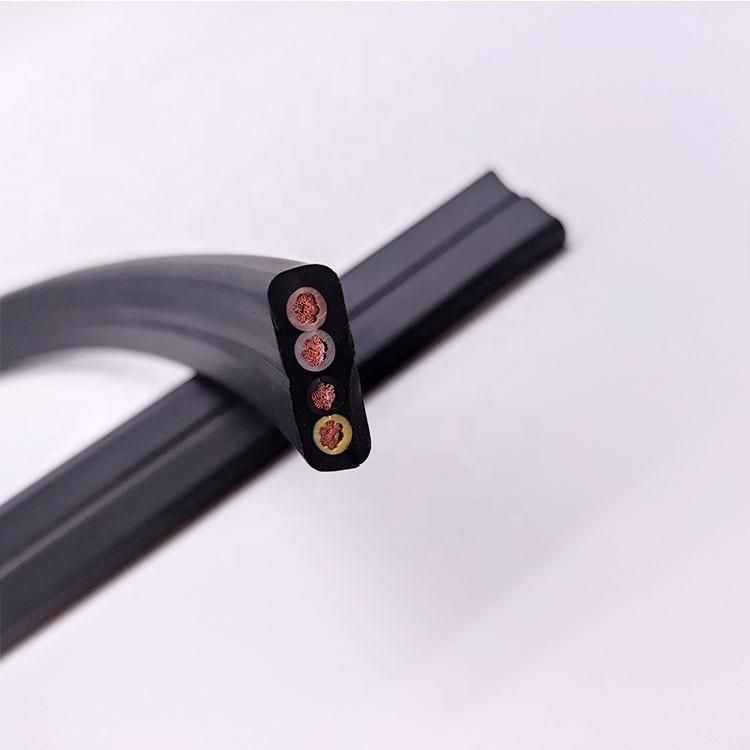

Lsoh-C Flat Cable for Trolley Systems Transfer Lines and Machine-Tools 1, 5 mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Polyolefin
  • Insulation Material：Special Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：LSOH-C Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item LSOH-C Flat Cable for Trolley Systems Transfer Lines and Machine-tools 1,5 mm2 ConductorBare copper stranded condutorInsulationSpecial compoundStrandingCores parallel side by sideShieldLSOH-C: bare copper braid, coverage approx. 85 % Outer sheathPolyolefinCore numberMulticores (As client's requirement)Rated voltage on 1 mm²: Uo/U 300/500 V; from 1,5 mm²: Uo/U 0,6/1 kV Testing voltage LSOH-C: c/c 4,0 kV / c/s 1,5 kVMin. bending radius fixed 15 x dMin. bending radius moved15 x dSuspension heightMax. 35 mOperat. temp. fixed min/max -40 °C / +70 °C Operat. temp. moved min/max -25 °C / +70 °C Temp. at conductor+90 °CHalogen free acc. to IEC 60754-1 Smoke densityacc. to IEC 61034-2Burning behaviorSelf-extinguishing and flame retardant acc. to IEC  60332-1 Standard Similar to DIN VDE 0250 ColorOptionalApplicationPower and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.
