Ntswoeu 0.6/1kv for The Connection of Mobile Machines Under Extremelyhigh Mechanical Loads, Predominantly in Mining Situations E-Loader Cable

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Underground
  • Conductor Material：Tinner Copper
  • Sheath Material：5GM5
  • Insulation Material：Epr

Base Info

  • Model NO.：NTSWOEU
  • Material Shape：Round Wire
  • Range of Application：Heating Units,Industrial Tools, Mobile Equipmentan
  • Certification：ISO9001, CE, CCC, RoHS, VDE
  • Brand：Fengda
  • Color：Black Red Yellow, According to Voltage Level
  • Whether It Is Environmentally Friendly：Yes
  • Whether Quality Inspection：Provide Inspection Certificate
  • Standard：Customized According to Specified National Standar
  • OEM/ODM：Accepted
  • Core：Single Core and Multicore
  • Transport Package：Standard Export Packaging
  • Specification：International General Specifications
  • Trademark：Fengda
  • Origin：Tianjin, China(Mainland)
  • HS Code：8544492100
  • Production Capacity：100000,Day

Description

Basic Info.

Model NO. NTSWOEU Material Shape Round Wire Range of Application Heating Units,Industrial Tools, Mobile Equipmentan Certification ISO9001, CE, CCC, RoHS, VDE Brand Fengda Color Black Red Yellow, According to Voltage Level Whether It Is Environmentally Friendly Yes Whether Quality Inspection Provide Inspection Certificate Standard Customized According to Specified National Standar OEM/ODM Accepted Core Single Core and Multicore Transport Package Standard Export Packaging Specification International General Specifications Trademark Fengda Origin Tianjin, China(Mainland) HS Code 8544492100 Production Capacity 100000/Day

Product Description

Ntswoeu 0.6/1kv for The Connection of Mobile Machines Under Extremelyhigh Mechanical Loads, Predominantly in Mining Situations E-Loader Cable
Applications

These cables are used for the connection of mobile machines under extremelyhigh mechanical loads, predominantly in miningsituations,also can beoperated via guide pulleys (cable cars) or used as areeling cable (LHD), suitable for extreme bending loads, high tensile stress,and impact and crushing loads.

Standards

VDE 0250 Part 813

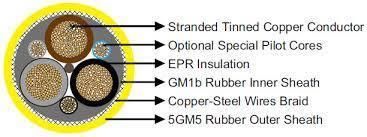

Construction

Conductors:

Flexible stranded tinned copper conductor, class 6 according to DIN VDE 0295.
Insulation: EPR.
Pilot Cores (optional):

Special conductor,tinnedcopper braid and galvanised steel wire braid.
InnerSheath:

Rubber type GM1b.
Armour/Earth Conductor:

Concentric earth conductor as tensile-stress-resistant braided armour of combined copper-steel wires.
Outer Sheath:

Chlorinated rubbe type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.



Dimensions and Weight

Number of Cores×Nominal Cross SectionInsulation ThicknessThickness of Inner SheathThickness of Outer SheathNominal Overall DiameterNominal Weight
No.×mm²mmmmmmmmkg/km
3x50/25KON + 3xST2.03.05.0564950
