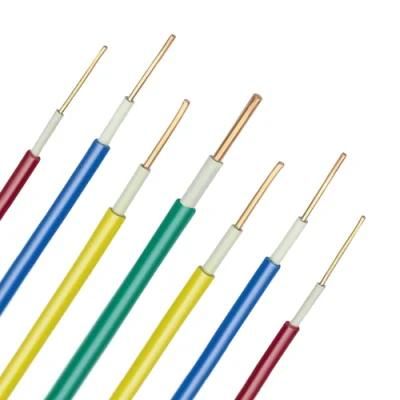

UL1618 VW-1 PVC Insulation Bare Copper 28 AWG Conductor Single Core Cable

B&T (Zhangzhou) Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electric Wire
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：UL1618
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand：Bort
  • Color：as Request
  • Factory：ISO9001
  • Delivery：7-12days
  • OEM：Yes
  • Standards：Reach,RoHS
  • Sample Time：3-5days
  • Sample：Supplied
  • Packing：Roll,as Request
  • Transport Package：Rolls
  • Specification：30-16AWG
  • Trademark：BORT
  • Origin：China
  • HS Code：85444929
  • Production Capacity：300, 000km, Year

Description

Maximum Resistance at 20 ºC
Ω/kmAWGNo./mmDia.
mmPrimary
Nom. Thick.
mmSecondary
Nom. Thick.
mmNom.Dia.
mm307/0.10.30.410.401.92354287/0.1270.380.410.402.00223267/0.160.480.490.502.461392411/0.160.610.460.502.5388.92217/0.160.760.480.482.6857.52026/0.160.940.410.422.6034.61841/0.161.180.410.382.7623.31626/0.2541.490.410.403.1215.1
