• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Yjv, Yjy, Yjv22, Yjy23
• Brand：Feiya
• Model Number：2,3 ,4 ,5 Cores, etc.
• OEM：Yes
• ODM：Yes
• Colors：Assorted Upon Request
• Operating Environment：Power, Construction, Metallurgy, Petrochemicals, T
• Transport Package：Submersible Pump, Heavy Duty ,Colliery
• Specification：Rated voltage(kV): 0.6-1
• Trademark：Fengda
• Origin：Tianjin, China
• HS Code：8544421900

Basic Info.

Wire Core Material Red Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model Yjv, Yjy, Yjv22, Yjy23 Brand Feiya Model Number 2/3 /4 /5 Cores, etc. OEM Yes ODM Yes Colors Assorted Upon Request Operating Environment Power, Construction, Metallurgy, Petrochemicals, T Transport Package Submersible Pump/ Heavy Duty /Colliery Specification Rated voltage(kV): 0.6-1 Trademark Fengda Origin Tianjin, China HS Code 8544421900

Product Description

1.H05RN-F H07RN-F Rubber Cable

This cable is primarily used in all kinds of electrical equipment, such as the mobile power of household appliances, electric machinery,
electrical equipment and tools, and it is also can be used in indoor or outdoor enviroment conditions.

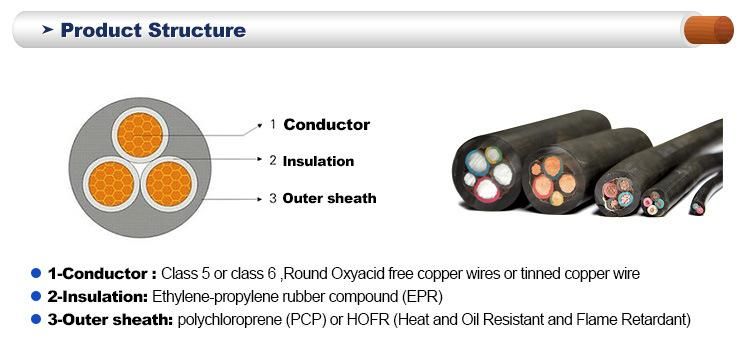

Conductor: Stranded bare or tinned soft copper wire

Insulation: EPR (Ethylene-Propylene Rubber)

Sheath: Neoprene (Chloroprene rubber)


2.Specification And Working Condition:

1)The rated voltage for YQ type is 300/300 V, YZ/YZW type(H05RN-F) is 300/500V,YC/YCW type(H07RN-F) is  450/750V.

2)The long-term working temperature allowed by conductor should be not more than 60 ° C.

3)W-type cable with climate resistance and oil resistance, suitable for outdoors or in contact with oil occasions.

4)ZR type cable has flame retardant properties, can be used for fire-retardant occasions.

Code	IEC	Description	Voltage Design	Cores
H05RR-F	60245IEC 53(YZ)/YZ	Ordinary rubber sheathed cord	300/500V	2~6
H05RN-F	60245 IEC 57(YZW)/YZW	Ordinary polychloroprene or other equivalent  synthetic elastomer sheathed cord	300/500V	2~6
H07RN-F	60245 IEC 66(YCW)/YC	Heavy polychloroprene or other equivalent  synthetic elastomer sheathed flexible cable	450/750V	1~5, 3+1/3+2/4+1
H01N2-D	60245 IEC 81(YH)	Rubber sheathed arc-welding electrode cable	100/100V	10-120
60245    IEC 82(YHF)	polychloroprene or other  equivalent synthetic  elastomer sheathed arc-welding electrode cable	100/100V	10-120
