• Model NO.：KX6
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Brand：OEM
• Braiding：32,48,64,96,112,128,144
• Transport Package：200m,300m,305m
• Specification：7*0.2mm Conductor
• Origin：China
• HS Code：8544200000
• Production Capacity：3500km,Month

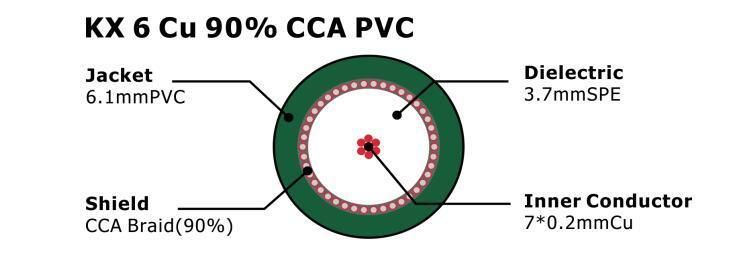

Construction Parameters:

Inner Conductor

7×0.008"/7×0.2mm/7×32 AWG Cu

Dielectric

0.15"/3.7mm Solid PE

Shield

Copper Clad Aluminum(90%)

Jacket

6.10±0.10mm PVC

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance



87.5Ω/KM at 20ºC

Capacitance

67 ±3 pF/m



Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4



Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ºC to 70ºC

Cable diamensions

6.10±0.10mm PVC



Cross Section



Attenuation(20ºC):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

10



5.00

50



8.10

100



13.00

200



18.50

400



22.50

850



34.50

950



37.50

1000



45.00



Order Informations:

Marking

KX 6 Cu COAXIAL CABLE ×××MT

Package

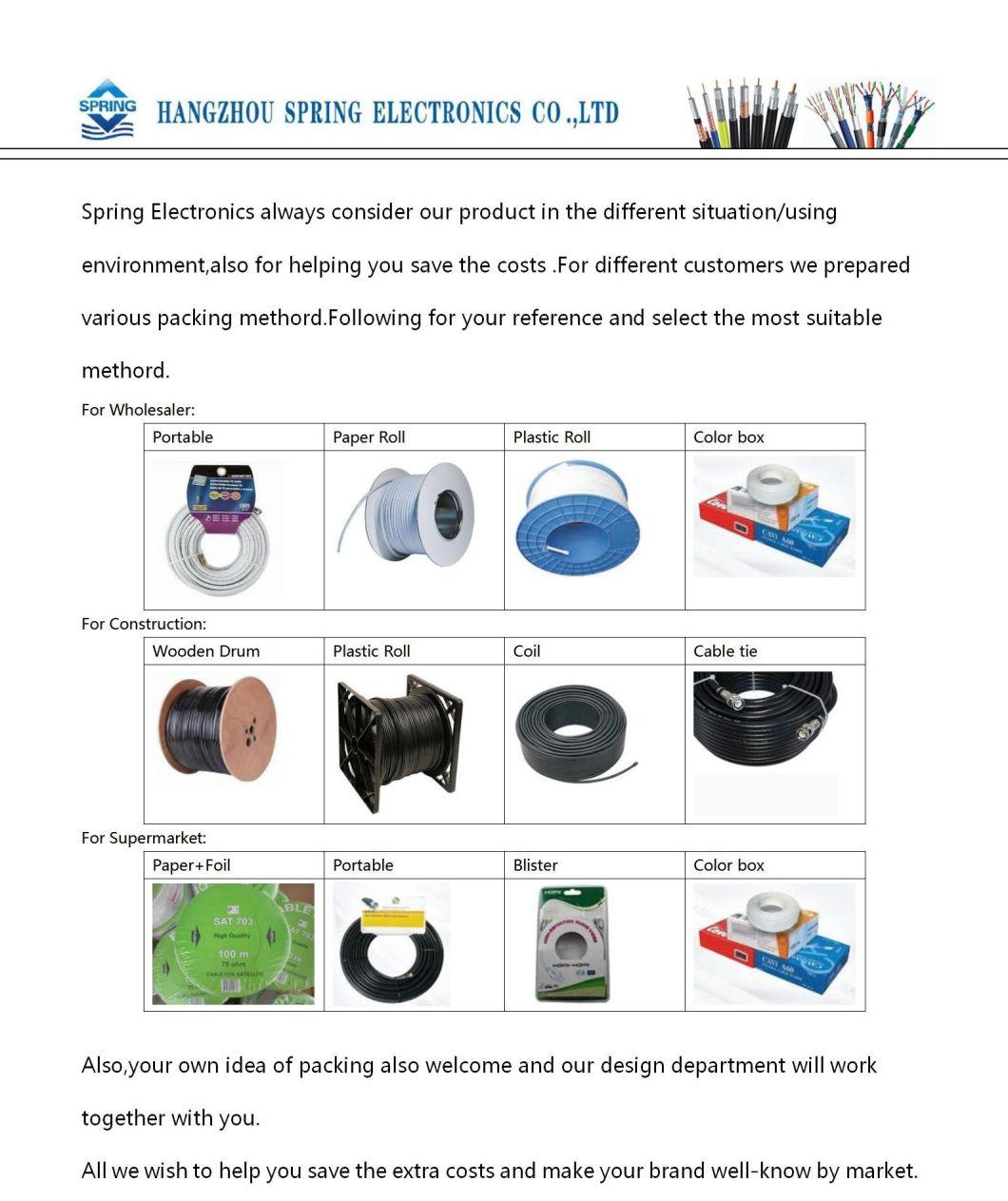

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Our Service:

   1) Quick Response --All inquiries will be replied within 24 hours.
   2) Professional Quotation --All prices will be quote according to customers' detailed
   specifications & requirements.
   3) OEM & ODM Service
   4) Can print your own brand on the jacket printing with foot or meter marking.
   5) Make customized designs for stickers, drums, outer cartons, etc.
   6) Stable Quality --All materials and products passed restrict QC procedures,comply with
   international standards.
   7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
   Confirmation in usual.

Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.

FAQ:

Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
