SFTP Cat5e LSZH LAN Cable Communication Cable

GENERAL CLAD CO., LTD.
  • Application：Local Communication Cable, Coaxial Cable, LAN Cable, RF Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：SFTP CAT5E
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Color：Grey, Blue, Black, Yellow, Red etc
  • Transport Package：Carton Box
  • Specification：305m,roll
  • Trademark：General Clad
  • Origin：China
  • Production Capacity：10000 Boxes, Month

Description

SFTP Cat5e LSZH LAN Cable Communication CableSFTP Cat5e LSZH LAN Cable Communication CableSFTP Cat5e LSZH LAN Cable Communication CableSFTP Cat5e LSZH LAN Cable Communication CableDescriptionRated temperature 75ºC
Standard UL444, TIA/EIA568B, ISO/IEC11801
24 awg wire gauge

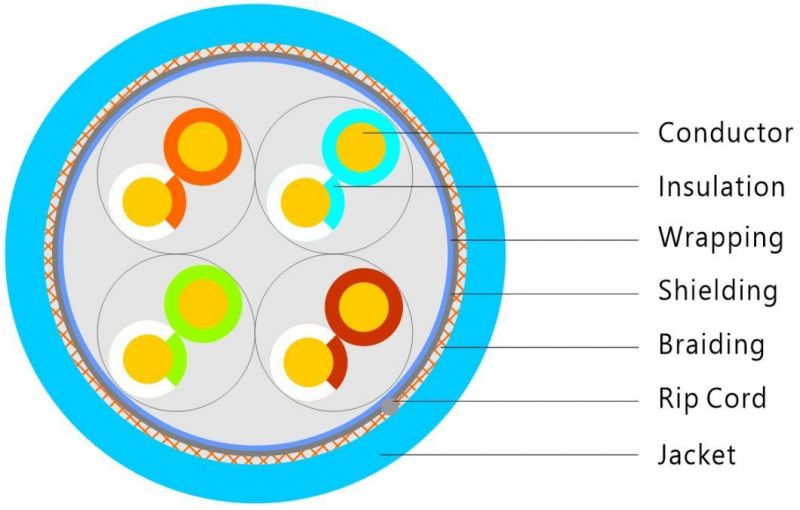

A single bare copper conductor
Insulating high density polyethylene
Shielding polyester + aluminum foil
Braided shield single tinned copper/single bare copper wire (as required)
Single ground wire tinned copper
Line of 4
Sheath PVC/LLDPE/LSZH(as required)
Tear the rope as neededElectrical properties1.0~ 100.0mhz characteristic impedance (ohms) 100±15
1.0~ 350.0mhz delay (ns/100m) ≤45
At 20ºC, the maximum dc resistance (ohms/km) of the conductor is less than or equal to 93.8
Conductor resistance unbalance (%) ≤2.5
Line-to-ground capacitance unbalance (PF/100m) ≤330Application100 Base - T4
100 Base - TX
100 VG - AnyLAN
155 Mbps ATM
622 Mbps ATM

    Package
 SFTP Cat5e LSZH LAN Cable Communication CableSFTP Cat5e LSZH LAN Cable Communication CableSFTP Cat5e LSZH LAN Cable Communication Cable
