3*35+1*25 ABC Aluminum Cable Insulated Areal Bundle Cable for Yemen
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：No Jacket
- Material Shape：Round Wire
Base Info
- Model NO.：ABC cable
- Wire Core Material：Aluminum
- Certification：ISO, CCC
- Model：ABC
- Brand：Hongda
- Standard：IEC NFC ASTM
- Transport Package：on The Drum or on The Pallent
- Specification：16 25 35 50 70 95 120
- Trademark：hongda
- Origin：Henan
- HS Code：8544492100
- Production Capacity：10000m,Day
Description
Basic Info.
Model NO. ABC cable Wire Core Material Aluminum Certification ISO, CCC Model ABC Brand Hongda Standard IEC NFC ASTM Transport Package on The Drum or on The Pallent Specification 16 25 35 50 70 95 120 Trademark hongda Origin Henan HS Code 8544492100 Production Capacity 10000m/DayProduct Description
Cable Instruction:1). Standard: IEC60502, NF C33-209, GB 12527-90
2). Rated voltage: 0.6/1kV,10kV
3). Specification:
---Concentric strand aluminum wires conductor(ACSR, AAAC Messenger wire)
---XLPE or HDPE or PVC insulated
Relative manufacturing standards: IEC60502, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204
We can also manufacture ABC cable according to customers special requirements.
.
4)Package: Wooden Drum Package or Iron-wooden drum
Abc Cable 4 cores,Aerial Bundle Cable, XLPE Insulation, overground cable, overhead cable
Product Description
1.Product description:
(1) Conductor: Aluminum
(2) Type of the conductor: Stranded
(3) Insulation: HDPE,XLPE
(4) Normal of area: 10mm2 - 100mm2
(5) Voltage: 300/500V 450/750V 600/1000V
(6) Core color: Black, White, Orange, Grey
(7) Standard: IEC502 IEC227
(8) Code name: ABC
2.Application:
The product is a new-type product of aerial cable for transmiting power, safe and wearable. It is extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.

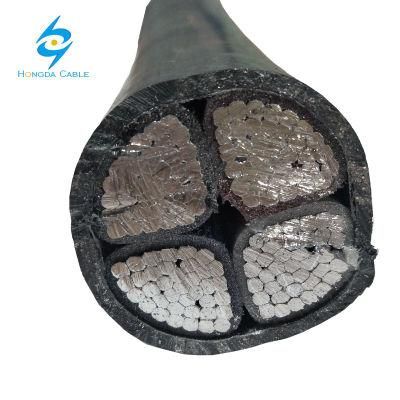

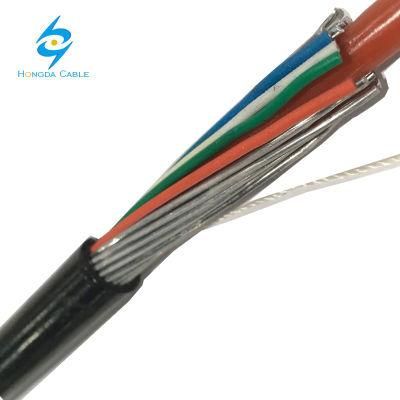

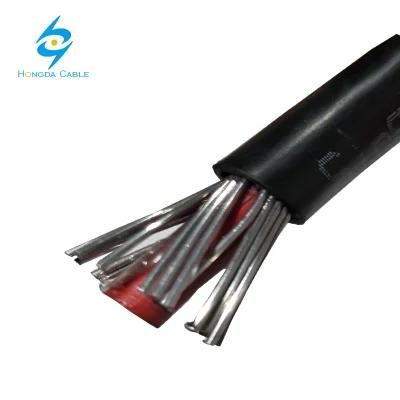

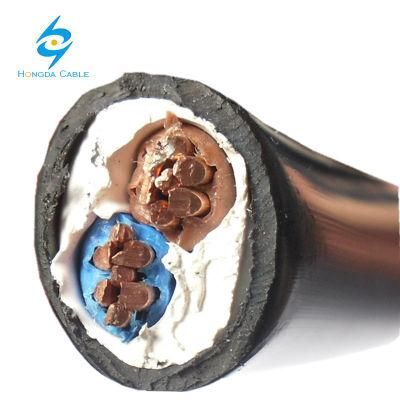

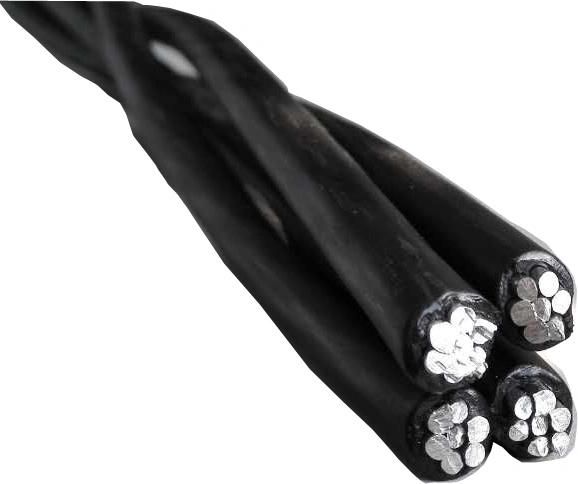

3.Pictures of product:
