CAT7 SFTP Indoor Lan Cable Network Cable

GENERAL CLAD CO., LTD.
  • Application：Local Communication Cable, Coaxial Cable, LAN Cable, RF Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 7
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：CAT7
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Color：Grey, Blue, Black, Yellow, Red etc
  • Transport Package：Carton Box
  • Specification：305m,roll
  • Trademark：General Clad
  • Origin：China
  • Production Capacity：10000 Boxes, Month

Description

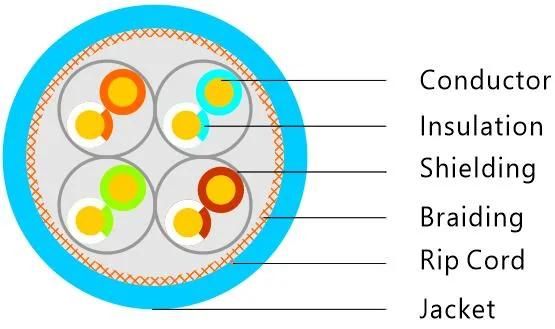

CAT7 SFTP Indoor Lan Cable Network CableCAT7 SFTP Indoor Lan Cable Network Cable DescriptionRated temperature -20- 75ºC
Standard UL444, TIA/EIA568B, ISO/IEC11801
23 awg wire gauge
Single bare copper conductor
Insulated high-density polyethylene
Line of 4
Sheathed PVC
Tear rope as neededElectrical propertiesCharacteristic impedance of 1.0~ 500.0mhz (ohms) 100±15
1.0~ 500.0mhz delay difference (ns/100m) ≤45
At 20ºC, the maximum dc resistance of the conductor (ohms/km) is ≤65.8
Conductor resistance imbalance (%) ≤1.0Application100 Base - T4
100 Base - TX
100 VG - AnyLAN
155 Mbps ATM
622 Mbps ATM
packaging
305 m/easy pull box/shaft (as required)

   Package
 CAT7 SFTP Indoor Lan Cable Network CableCAT7 SFTP Indoor Lan Cable Network CableCAT7 SFTP Indoor Lan Cable Network Cable
