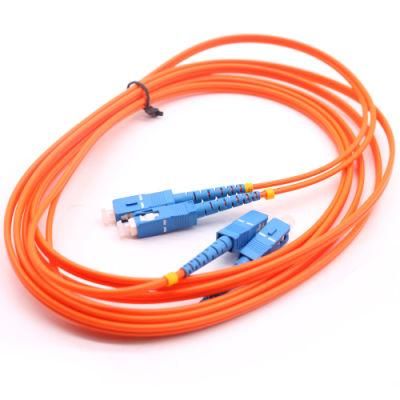

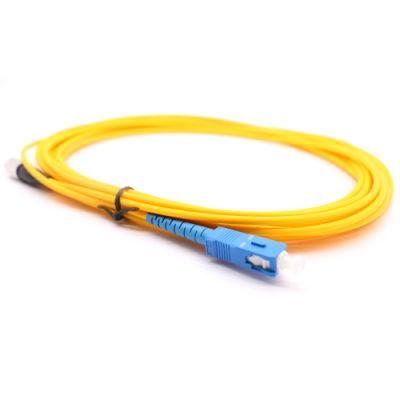

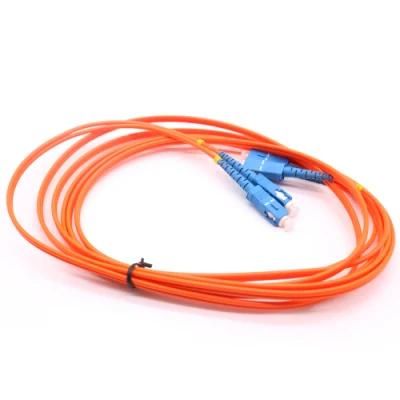

Patch Cord Sc/FC/LC/St Optical Fiber
Qingdao Powtech Electronics Co., Ltd.- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：SC
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：SC,FC,LC,ST
- Core：Multicore
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Optelec
- Sheath Material：PVC
- Adapter：SC,PC
- Transport Package：Plastic Packing
- Specification：CE, SGS
- Trademark：POWTECH
- Origin：China
- HS Code：8547
- Production Capacity：10000PCS,Year
Description
Features:
*Type: FC, SC, ST, LC, MU, MTRJ and Hybrid
*Simplex and Duplex
*Zirconia sleeves or Phosphor bronze sleeves
*Meet JIS5974 and Bellcore-GR-CORE Compliance
*Compliant with IEC874-14 &IEC874-19 and NTT standard compatible
*All parts compliant with RoHS
Application:
*CATV/LANs
*FTTH
*Networks
*Telecommunication
Adapter Parameters:
Mode
S. M(Zroz)
M. M(P. B)
Insertion Loss
≤ 0.2dB
≤ 0.3dB
Mating Durability(500times)
≤ 0.2dB
Operating Temperature(° C)
-40° C~+75° C
Ordering information:
* Sleeve: Zirconia, P. B
* Housing: SM Bule, MM Beige, APC Green, SM Metal
* Figure: With flange, without flange, customized designs
Warranty:
* Quality always comes first
* Standard quality tests check of all types of products before shipment
* Responsible for after-sales service
* 3 months
Technical Specifications:
| No. | Parameter | Specifications |
| 1 | Adapter type | FC/PC - FC/PC |
| 2 | Return Loss | ≥ 45dB |
| 3 | Insertion Loss | ≤ 0.3dB |
| 4 | Tension Strength | - Installation: 200N - Operation: 100N |
| 5 | Crush Resistance Strength | - Immediate: 500N - Regular: 100N |
| 6 | Installation environment temperature | 0 ° C ~ 60 ° C |
| 7 | Operation environment temperature | 0 ° C ~ 45 ° C |
| 8 | Length | 10 m |
| 9 | Mating durability | ≥ 100 tim |
