• Model NO.：H07ZZ-F
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

H07ZZ-F halogen free flexible multi-core power cable is designed for applications with a voltage rating of 450/750V that are subjected to medium mechanical stresses such as supplying mobile power units, UPS installations, stage lighting and audio visual equipment. The H07ZZ-F is suitable for installation both indoors and outdoors. It has a Low Smoke Zero Halogen (LSZH) insulation and oversheath, making it suitable for installation in buildings or industrial plants with a high density of people, and where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

The H07ZZ-F cable is used across a broad range of applications across almost all industry sectors including Airports, Automation & Process Control, Communications & Telecommunication, Marine & Offshore, Oil, Gas & Petrochemicals, Renewable Energy, and Water Treatment.

The temperature rating of the H07ZZ-F is -5^oC to +50^oC when flexed and -20^oC to +90^oC when fixed.

The H07ZZ-F cable is also available in 2-core, 3-core, 4-core, 5-core and up to 37 cores as standard.

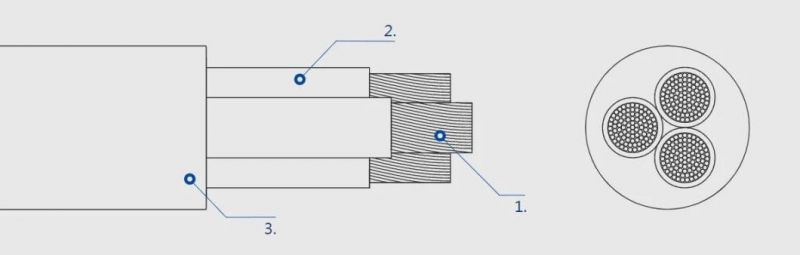

• 1. Conductor
  • Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
• 2. Insulation
  • LSHF Rubber.(EI8 quality)
  • The standard identification of insulated conductors is the following:

    1 x Natural

    2 x Blue + Brown

    3 G Blue + Brown + Yellow/Green

    4 G Brown + Black + Grey + Yellow/Green

    5 G Brown + Black + Grey + Blue + Yellow/Green

    6 or more Black numbered + Yellow/Green

• 3. Outer sheath
  • Low Smoke halogen free (LSHF) crosslinked polymer. Black colour. Fire retardant cable.(EM8 quality)
