Telephone Cable Ptt 298 4p White
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：Copper
- Cover Material：PE
- Type：Telephone Cable
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, ETL,CPR
- Model：Ptt298 Telephone Cable
- Brand：Risun
- Transport Package：100m,Roll
- Specification：24AWG
- Trademark：RISUN or OEM
- Origin：Zhejiang, China
- HS Code：8544491100
- Production Capacity：6000km,Month
Description
Basic Info.
Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, ETL,CPR Model Ptt298 Telephone Cable Brand Risun Transport Package 100m/Roll Specification 24AWG Trademark RISUN or OEM Origin Zhejiang, China HS Code 8544491100 Production Capacity 6000km/MonthProduct Description
Telephone Cable PTT 298 4P White
PTT298 Specification:
1. Conductor: 0.50±0.01mm(24AWG) Bare copper
2. Insulation: 0.90±0.03mm HDPE

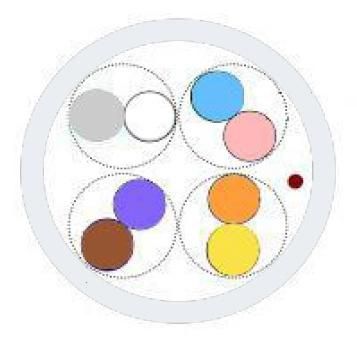

3. Cores/Pairs: 8/4
4. Sheath: 5.0±0.3mm PVC (PE, LSZH)
Options: Jelly Compound, Jacket: UV, FR, RoHS complied.
Mechanical Properties:
| Elongation | Min. 300% |
| Temperature Range | -20 up to +75° C |
| Tensile Strength | Min 1.68kg/mm² |
Electrical Properties:
| Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Capacitance Unbalance | Max. 330pF/100m |
| Impedance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity of Propagation | 67% |
Technical Performance:
| Attenuation | RL | Next | PS Next | |
| (Mhz) | (dB/100M) | (dB) | (dB) | (dB/100m) |
| 1MHz | 2.0 | 20 | 65.3 | 63.5 |
| 4MHz | 4.1 | 23 | 56.3 | 54.2 |
| 8MHz | 5.8 | 24.5 | 52.4 | 50.5 |
| 10MHz | 6.6 | 25 | 51.3 | 49.2 |
| 16MHz | 8.2 | 25 | 49.3 | 47.4 |
| 20MHz | 9.3 | 25 | 48.8 | 46.9 |
| 25MHz | 10.4 | 24 | 45.3 | 43.4 |
| 31.25MHz | 11.7 | 23 | 43.0 | 41.8 |
| 62.5MHz | 17.0 | 21 | 39.2 | 37.2 |
| 100MHz | 22.0 | 20 | 36.3 | 34.4 |
PTT298 Packing:
1.100m/roll, 4rolls/ctn
2.100m/plastic reel. 4 rolls/ctn
3.305m/pull box, 2boxes/ctn
4.305m/wooden drum/ctn
5.500m/wooden drum
6.1000m/wooden drum
7.5000m/wooden drum

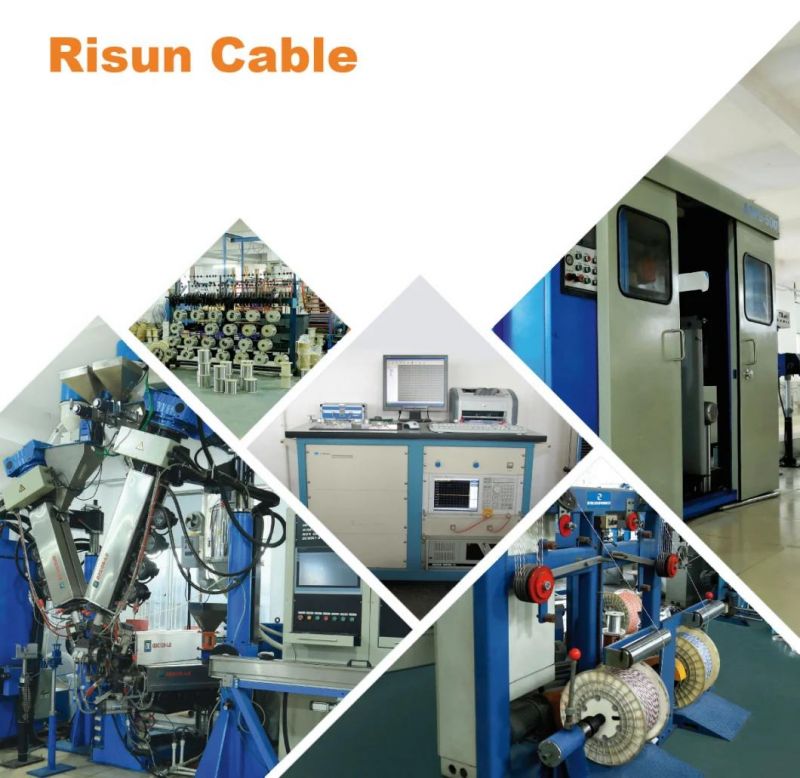

company profile
Since its creation in 2007, RISUN cable has been specialized in manufacturering of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices. We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.

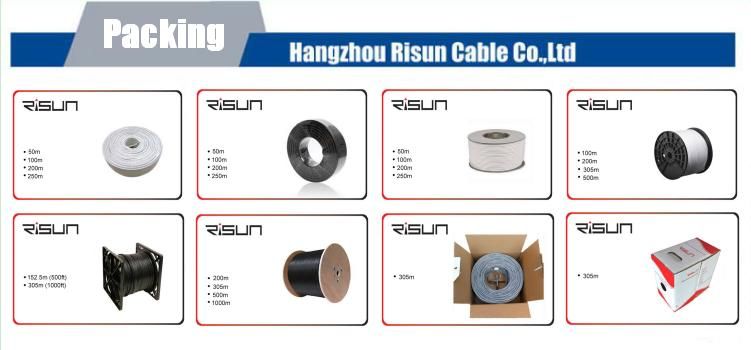

Packing:

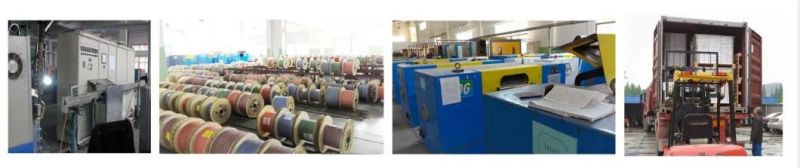

Production line:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
