• Model NO.：cat5e,cat5 networking cable UTP,FTP,SFTP 24AWG CCA
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS
• Model：MHYV-xx
• Brand：Hanli
• Transport Package：305,1000
• Specification：0.5CU
• Trademark：HANLI
• Origin：Zhejiang
• HS Code：8544491100
• Production Capacity：2000000m,Month

Nominal Conductor Diametermm0.320.40.50.630.9Conductor Gauge SizeAWG2826242219Conductor Sizemm20.080.1260.1960.3120.636Maximum Average Conductor Resistance @20°C/km223143915828Minimum Insulation Resistance @500V DCM.km65006500650065006500Maximum Average Mutual Capacitance @800HznF/km53/68*53535659Maximum Individual Mutual Capacitance @800Hz (for 99% cases)nF/km60/75*60606064Maximum Individual Capacitance Unbalance @800Hz pair-to-pairpF/500m275275275275275Maximum Conductor Loop Resistance @20°C/km47030019211460Impedance @1KHz 1000994796660445Impedance @100KHz 156147134125122Impedance @512KHz 122120118117116Impedance @1MHz 120117115114113Maximum Average Attenuation @0.8KHzdB/km1.761.641.301.040.74Maximum Average Attenuation @1KHzdB/km1.81.681.351.080.76Maximum Average Attenuation @3KHzdB/km3.43.182.522.011.42Maximum Average Attenuation @150KHzdB/km16.811.48.36.24.4Maximum Average Attenuation @772KHzdB/km29.524.319.415.410.8Maximum Average Attenuation @1000KHzdB/km33.527.121.417.512.8Dielectric Strength Conductor to Conductor (3secs)V DC500500500500500Nominal Insulation Thicknessmm0.145/0.08**0.1750.200.260.3Nominal Insulated Conductor Diametermm0.61/0.48**0.750.901.151.5* Mutual capacitance values may be increased by 3% for cables with a nominal number of pairs less than 400.
The values apply to 4000 and 4800 pairs 0.32mm cable only.
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C - +70°C
Temperature range during installation (mobile state): -20°C - +50°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)
Colour Code Standard colour code is per CW 1171 given in Colour Code Chart
Dimensions And Weight Solid PE Insulated & PE Sheathed Air Core Cables to CW 1171

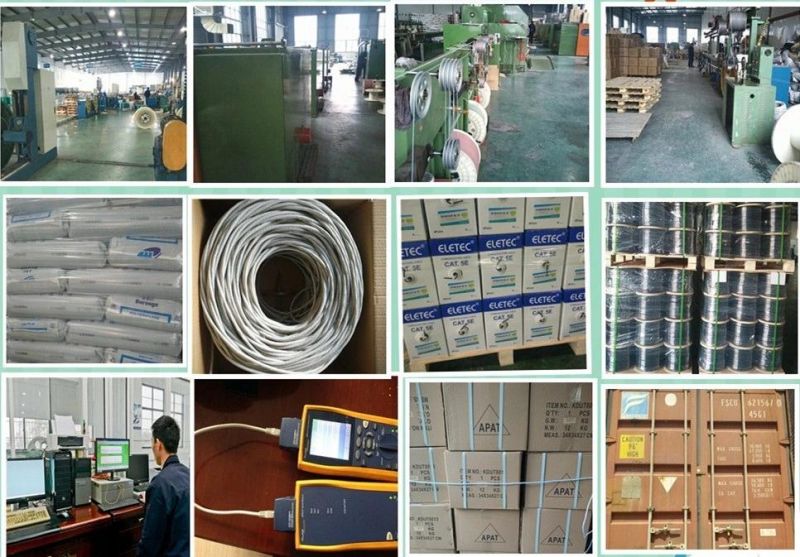

Welcome to visit our factory and  get our samples.
