• Model NO.：ABC cable
• Certification：ISO, CCC
• Model：ABC Cable
• Brand：Hongda
• Transport Package：Wooden Drum, Steel & Wooden Drum
• Specification：single core 25,35,50mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：4100 Km,Per Week

hase Conductor

Circular compacted stranded H68 aluminium to BS2627.

Conductor Screen

Extruded semi-conductive layer.

Insulation

XLPE.

Insulation Screen

Extruded semi-conductive layer.

metallic Screen(optional)

Copper wire screen or copper tape screen.

Separator

Semi-conductive swellable tape.

Outer Sheath

HDPE.

Support Conductor

Galvanized steel wires.

Assembly

Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

4.Construction Parameters



Type

Nom. conductor
 cross section
mm²

DC conductor
resistance at
20ºC(Ω/km)
≤

 Min.insulation
 resistance  MΩ· km

Nom.
 Thickness
of insulation
mm







70ºC

90ºC



JKY (Cu/PVC)

1×16

1.198

0.0065

-

1.2



1×25

0.749

0.0054

-

1.2



1×35

0.540

0.0054

-

1.4



1×50

0.399

0.0046

-

1.4



1×70

0.276

0.0040

-

1.4



1×95

0.199

0.0039

-

1.6



1×120

0.158

0.0035

-

1.6



1×150

0.128

0.0035

-

1.8



1×185

0.1021

0.0035

-

2.0



1×240

0.077

Supply Ability
Supply Ability: 4100 Kilometer/Kilometers per Week


Company Information
Hongda cable Co., Ltd. is one of the most professional cable & wire producer under modern enterprise system in China, which was founded in 1988, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co.,  The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead ABC Cable.

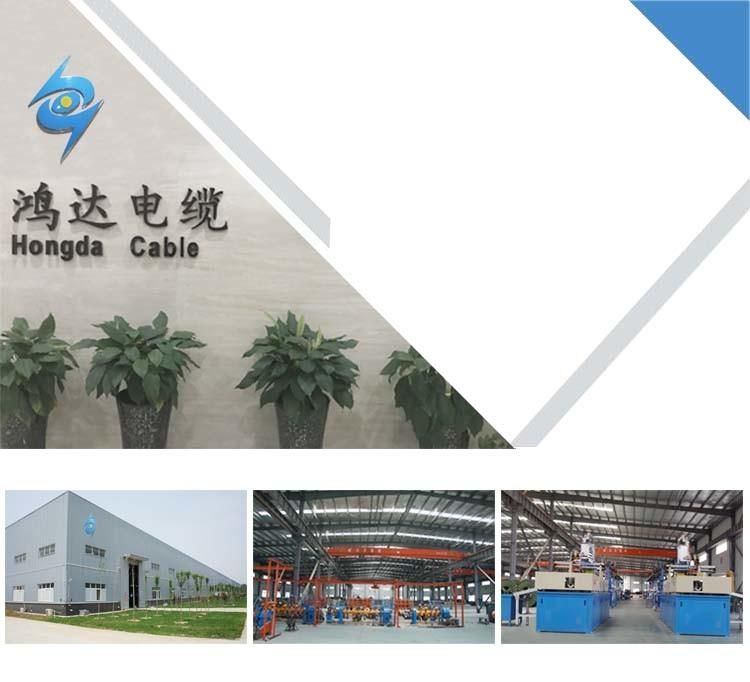

Factory

Established in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.




Our Service

If you come to visit the factory, you can take the train or plane to zhengzhou, we can go to zhengzhou airport or railway station to pick you up, hongda company will give you the most satisfactory service.

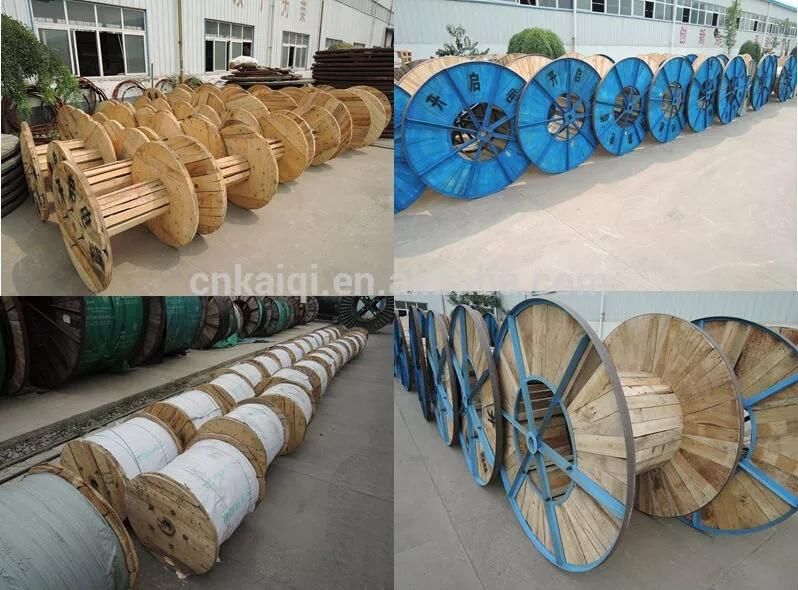

Packaging & Shipping




FAQ:

1. Q: Are you the factory or the trading company?

    A: We are the factory.

2. Q: How long is your guarantee Period?

    A: We uaually offer 1 year guarantee for our general products.

3. Q: How can I get the samples?

    A: We can make the sample order. And usually we will charge for it.

         But the samples fee will be return to you when you make the bulk order.

4. Q: Where is your factory? How can we visit your factory?

    A: Our factory located in Zhengzhou city, Henan Province. You could reach here by train and by air.

        We can pick you up in the airport and the railway station.

5. Q; What is your MOQ?

    A: It`s base on the cable type or wire type. Please contact Calder. He will let you know.
