• Model NO.：Yellow Mining Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Mc,Mcp,Mcpjb
• Brand：Rne Da
• Product Name：Mining Cable
• Size：1.5mm2 2.5mm2 4.0mm2 6.0m2 10mm2 16mm2
• Cores：2,3,4,7,12cores
• Standard：Mt818 GB12972
• Rate Voltage：0.3,0.5kv 0.38,0.66kv 0.66,1.44kv 1.9,3.3kv 3.6,6K
• Temperature：65 and 90
• Insulated：Rubber
• Sheathed：Rubber
• Minimum Bending Radium：6 Times of The Cable Diameters
• Transport Package：Standard Export Drum.
• Specification：GB12972
• Trademark：RNEDA
• Origin：China
• HS Code：8544492100
• Production Capacity：500000meter Per Month

Basic Info.

Model NO. Yellow Mining Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Mc/Mcp/Mcpjb Brand Rne Da Product Name Mining Cable Size 1.5mm2 2.5mm2 4.0mm2 6.0m2 10mm2 16mm2 Cores 2,3,4,7,12cores Standard Mt818 GB12972 Rate Voltage 0.3/0.5kv 0.38/0.66kv 0.66/1.44kv 1.9/3.3kv 3.6/6K Temperature 65 and 90 Insulated Rubber Sheathed Rubber Minimum Bending Radium 6 Times of The Cable Diameters Transport Package Standard Export Drum. Specification GB12972 Trademark RNEDA Origin China HS Code 8544492100 Production Capacity 500000meter Per Month

Product Description

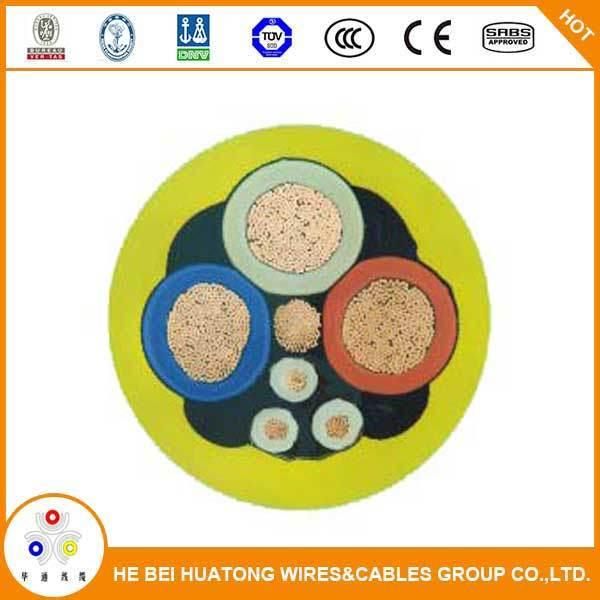

Factory Price type 241 61 Multi Core Rubber Sheathed Flexible Mining Cable

1 Brief introduction
1 Rated voltage of the cables is divided into 6 grades, which is 0.3/0.5kV,0.38/.066kV,1.9/3.3kV,3.6/6kV,6/10kV.
2 There are allowed long-term working temperatures of the cable conductor. For the cable of U(M)CPT-0.66/1.14, U(M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14 and 1.9/3.3kV, 3.6/6kV, 6/10kV, the temperature is 90ºC;for the other, it is 65ºC.
3 Minimum bending radius: For the cable of U (M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14,it is 15 times of the cable diameter; for the others, it is 6 times of the cable diameters.
4 The grounding wire should be well connected with the earth.
5The cable should be prevented from exposing to the sunshine for a long time.

2 Implemented standard
1For the non-spread combustion cable, implement GB12972 Flexible rubber mining cable
2For the flame-retardant cable, implement MT818Flame-retardant cable used in the coal mine
3 For the special mining cable(with bigger cross-section and higher voltage),implement the enterprise standard.

3 Type and Name


Type	Description	Application
MC-0.38/0.66	Rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCP-0.38/0.66	Shielded, rubber-sheathed flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCP-0.66/1.14	Shielded, rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.38/0.66kV
MCPJB-0.66/1.14	Shielded ,monitoring and braiding reinforced type,  rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV,it can be dragged directly
MCPJR-0.66/1.14	Shielded ,monitoring and braiding reinforced type,  rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV,it must be used in the protective chain panel
MCPT-0.66/1.14	Metallic shielded rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 0.66/1.14kV
MCP-1.9/3.3	Shielded rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MCPT-1.9/3.3	Metallic shielded rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MCPTJ-0.66/1.14
MCPTJ-1.9/3.3	Metallic shielded, monitoring type,  rubber flexible cable for excavator	As the power connection used in the excavator or similar equipment with rated voltage 1.9/3.3kV
MY-0.38/0.66	Movable rubber flexible cable for mining	As the power connection used in the mining machine with rated voltage 1.9/3.3kV
MYP-0.38/0.66	Movable shield rubber flexible cable for mining	As the power connection used in the mining machine with rated voltage 0.38/0.66kV
MYP-0.66/1.14	Movable shield rubber flexible cable for mining	As the power connection used in the mining machine with rated voltage 0.66/1.14kV
MYPJ-3.6/6	Monitoring movable shield rubber flexible cable for mining	As the power connection used in the mining transformer and similar equipment with rated voltage3.6/6kV
MYPTJ-3.6/6	Metallic shielded monitoring type  movable rubber flexible cable	As the power connection used in the mining transformer and similar equipment with rated voltage3.6/6kV
MYP-3.6/6	Movable shield rubber flexible cable for mining	Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-20ºC
MYPT-3.6/6	Movable metallic shield rubber flexible cable for mining	Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-20ºC
MYPD-3.6/6	Movable shield rubber flexible cable for mining	Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-40ºC
MYPTD-3.6/6	Movable metallic shield rubber flexible cable for mining	Mining equipment with rated voltage 3.6/6kV the min. environment temperature is-40ºC
MZ-0.3/0.5	Driller cable for mining	As the power connection of driller with rated voltage 0.3/0.5kV
MZP-0.3/0.5	Driller shielded cable for mining	As the power connection of driller with rated voltage 0.3/0.5kV

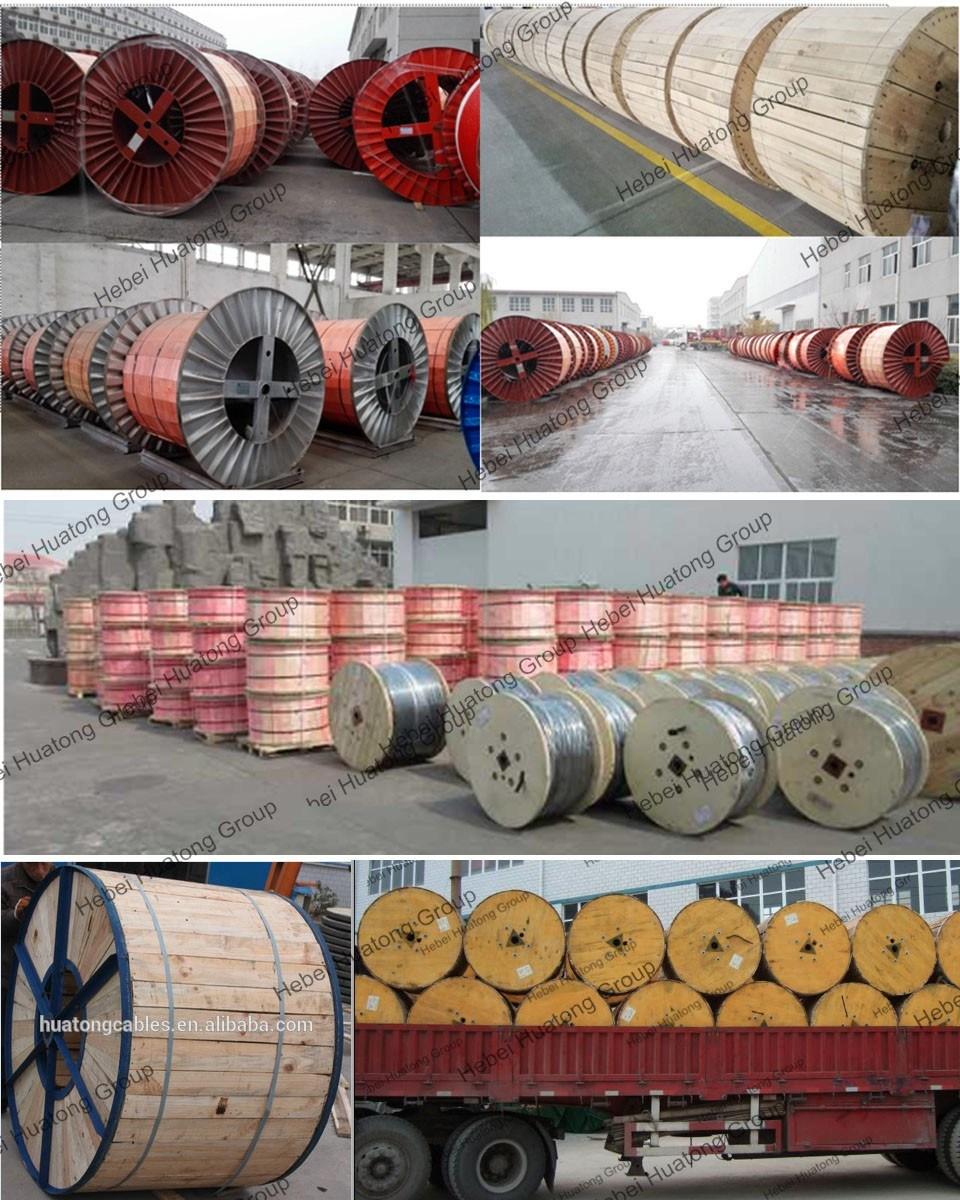

4 Packing: standard export drum



5 Certificate:
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate

USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable  and so on.

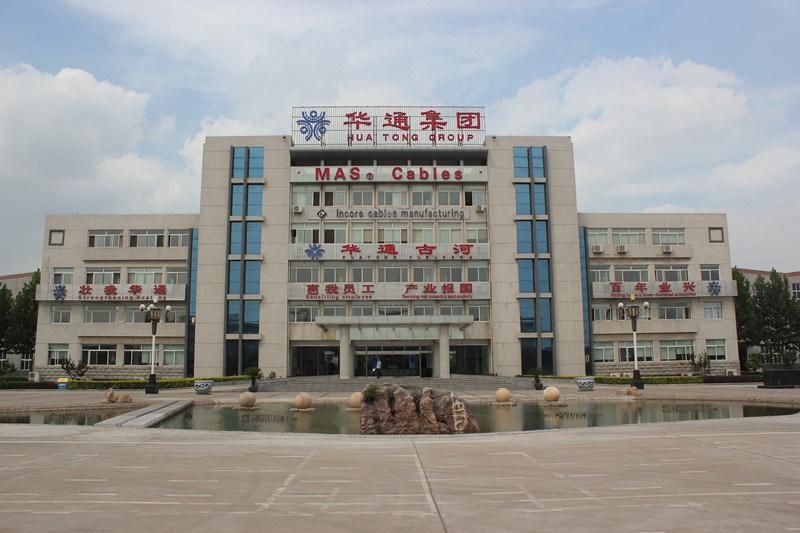

6 Company profile:
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on.



7 Our Service:
1.How many year have our factory producing power cable?
Our factory produce power cable for 22 years.
2 Hong Long time the customer can get the new price after get your inquiry?
 Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.
3.Which port our factory is near to?   Tianjin port
4.Which payment term do we accept?
 T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.
5.What about the package for our power cable?
 It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.
6.How long meter power cable for one wooden drum?
  This is according to power cable's diameter and customer's requirments.
7.How about our delivery time?
  According to your order's quantity , for 1million meters power cable, it is only 25 working days is ok.
8.Do we provide sample for free?
  Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
