• Model NO.：RG142
• Wire Core Material：Sccs(Silver-Plated Copper Clad Steel Wire)
• Certification：ISO, RoHS, CCC, UL, VDE
• Model：Rg142
• Brand：Yuanda
• Transport Package：Pallet,Carton,Tray,Reel
• Specification：ISO9001, UL, CCC, RoHS, VDE
• Trademark：Yuanda
• Origin：Wuxi, China
• HS Code：8544492100
• Production Capacity：1000km,Day

Basic Info.

Model NO. RG142 Wire Core Material Sccs(Silver-Plated Copper Clad Steel Wire) Certification ISO, RoHS, CCC, UL, VDE Model Rg142 Brand Yuanda Transport Package Pallet/Carton/Tray/Reel Specification ISO9001, UL, CCC, RoHS, VDE Trademark Yuanda Origin Wuxi, China HS Code 8544492100 Production Capacity 1000km/Day

Product Description

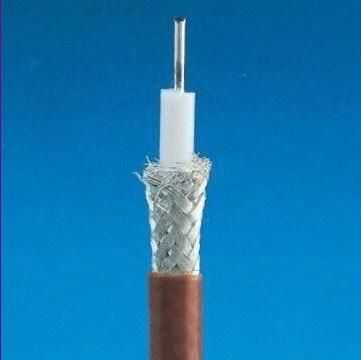

SCCS Coaxial cable

Type: RG142

Structure:

1. Inner conductor: SCCS (Silverplated copper clad wire)
Construction: 0.94
2. Insulation: PTFE
Diameter: 2.95
3. Outer conductor: SC (Silverplated copper)
Diameter: 3.95
4. Jacket: FEP
Diameter: 4.95


Electrical Characteristics:

1. Capacitance (PF/m): 96
2. Impedance (Ω ): 50
3. Velocity (%): 70
4. Bending radius (mm): 25
5. Max. Operating voltage (V): 1900
6. Max. Operating frequency (Mhz): 8000
7. Operating Temperature (º C): -55 to 200

Attenuation (Typical)(≤ DB/m)
Frequency
100Mhz: 0.125
400Mhz: 0.256
1000Mhz: 0.420
3000Mhz: 0.781
5000Mhz: 1.050

Application:

Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The mechanical, thermal and electronic properties of coaxial cables mean that they can be used up to the Ghz levels, as per cable type.




Our main products are as follows:
Automotive cable that meet the national standard, Japanese standard, American standard, German standard, France and other countries' standards, etc.. Coaxial cables that are widely used in various fields of communication systems. Cables that suitable for motor, railway, urban rail and rolling stock. Electronic cable and sleeves that widely used in electronics, electrical appliances, household appliances instruments etc.. Cables used in special fields like photovoltaic, nuclear power, aviation and ships. Our products involved in cross-industry, many fields.

Our main customers are as follows:
Shanghai Sanzhi, Delphi, Lear-stec and Continental-corporation that matching Ashkenazi vehicle; THB Group and Ingersoll Rand eytc. ewire harness corporation that matching European and American vehicle; as well as Dell, Lenovo, Huawei and other matching communication cable customers and Panasonic, Siemens, Midea, Gree and other electronic cable customers.

Futher types and details or special orders are available on request.

If you are interested in our products, please contact with us!

Also, you can tell us your requirements, and we can produce for you.
