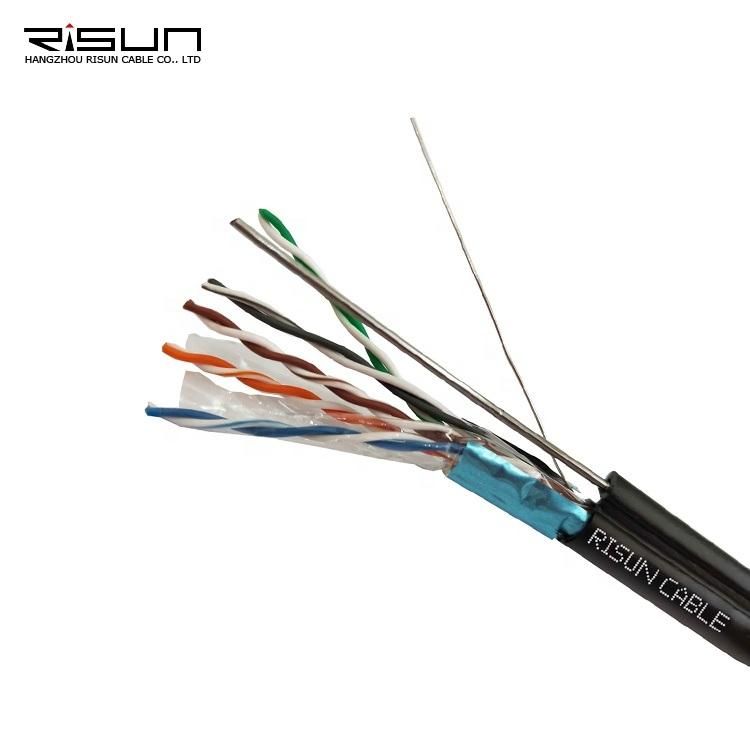

Profitable FTP Cat5e Aerial 5 Pairs Communication Cable
Hangzhou Risun Cable Co., Ltd.- Application:Local Communication Cable, LAN Cable
- Conductor Material:Copper
- Cover Material:PVC
- Type:Cat 5
- Material Shape:Round Wire
- Conductor Type:Stranded
Base Info
- Model NO.:FTP CAT5E AERIAL 5 pairs
- Wire Core Material:Bare Copper Wire
- Certification:CE, ISO, RoHS, ETL, CPR
- Model:Cat5
- Brand:Risun or OEM
- Color:Black
- Inner Conductor:24AWG Copper
- Insulation:HDPE
- Pairs:4 Pairs
- Shielding:Aluminum Foil+Pet Foil
- Messenger:Steel
- Nom. Thick:0.5mm
- Sheath:PE
- Export Length:305m,Roll,500m,Roll,1000m,Roll
- Transport Package:Drum, Carton Box, Pallet
- Specification:FTP Aerial
- Trademark:Risun
- Origin:Zhejiang, China
- HS Code:8544491100
- Production Capacity:30000boxes,Month
Description

Manufactured according to ISO / IEC 11801, EIA / TIA-568-C.2, EN-50173. Conductor Bare copper 0.51±0.01 mm
Insulation HDPE 0.97±0.05 mm Identification of pairs 1 pair Blue - White / Blue 2 pair Orange - White / Orange 3 pair Green - White / Green 4 pair Brown - White / Brown 5 pair Gray - White / Gray shield PET FOIL + AL Foil Ripcord Yes Sheath PE Color Black Messenger 1.30±0.01 mm steel Bending radius ≥ 8 x Diameter (mm) Installation Storage temperature -15ºC-+70ºC Cap. between cond. pair
(nF / 100m)
Velocity of
Propagation (%)
Impendance (ohm) ФExt. (Appvox) (mm) 4x2x0.51 max.91.5 max.2% 5.6 67 100±15 6.6±0.3 Frequency
(MHz)
RL ≥dB ATT
≤dB/100m
NEXT
≥dB
DELAY
≤ns/100m
PS NEXT
≥dB
EL FEXT
≥dB/100m
PS EL FEXT
≥dB/100m
1 20.0 421 65.3 570.00 62.3 63.7 60.8 4 23.0 4.1 56.3 552.00 53.3 51.8 48.8 8 24.5 5.8 51.8 546.73 48.8 45.7 42.7 10 25.0 6.5 50.3 545.38 47.3 43.8 40.8 16 25.0 8.2 47.2 543.00 44.4 39.7 36.7 20 25.0 9.3 45.8 542.05 42.8 37.8 34.8 25 24. 10.4 44.3 541.20 41.3 35. 32.8 31.25 23.6 11.7 42.9 540.44 39.9 33.9 30.9 62.5 21.5 17.0 38.4 538.55 35.4 27.9 24.9 100 20.1 22.0 35.3 537.60 32.3 23.8 20.8 Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities. - All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice
Construction

Application & Certificates:

FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.
Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color
Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.
Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
