• Model NO.：SF100
• Material：Aluminium,Zinc
• Use：Trunk Coaxial Cable
• Delivery Time：Around 7day
• Transport Package：Standard Export Packing
• Specification：CE ROHS
• Trademark：SOFTEL
• Origin：China Zhejiang
• HS Code：8536690000
• Production Capacity：50000bag,Year

Basic Info.

Model NO. SF100 Material Aluminium,Zinc Use Trunk Coaxial Cable Delivery Time Around 7day Transport Package Standard Export Packing Specification CE ROHS Trademark SOFTEL Origin China Zhejiang HS Code 8536690000 Production Capacity 50000bag/Year

Product Description

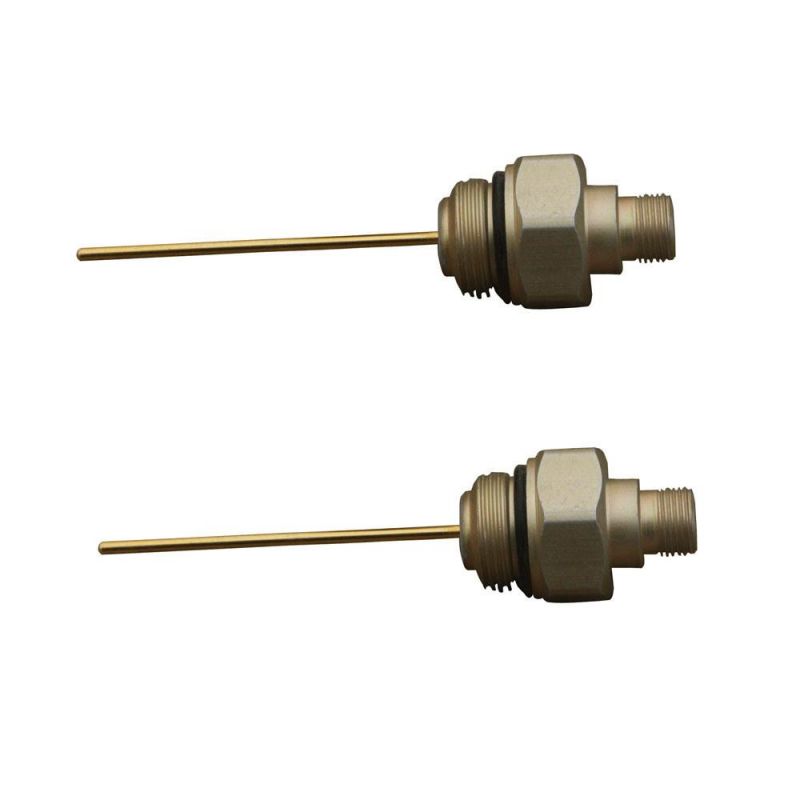

Coaxial Cable Connector suitable for QR500, QR540, 750, RG11, PIN Type.

1.  Hardline cable to port entry connectors provide solid interface while preserving impedance characteristics

2. Wide bandwidth for use in broadband systems

3. Center pin "Funnel Guide" reduces installation time and connector mating guesswork

4. Standard pin length alcommodates all amplifer and multitap mating requirements

5. Notched center conductor cutting guide assures accurate cable center conductor length

6. High return loss for excellent digital signal performance

7. Solid construction and intergral sleeve provides optimum RG shielding

8. High retention center conductor seizure mechanism

9. Superior power capability provides a minium of 20 Amps current capacity on all connectors and adapters

10. No-twist center conductor seizing mechanism eliminates radial stress ,ensuring consistent application without cable damage

11. O-ring sealed ,watertight.        compression RF connector

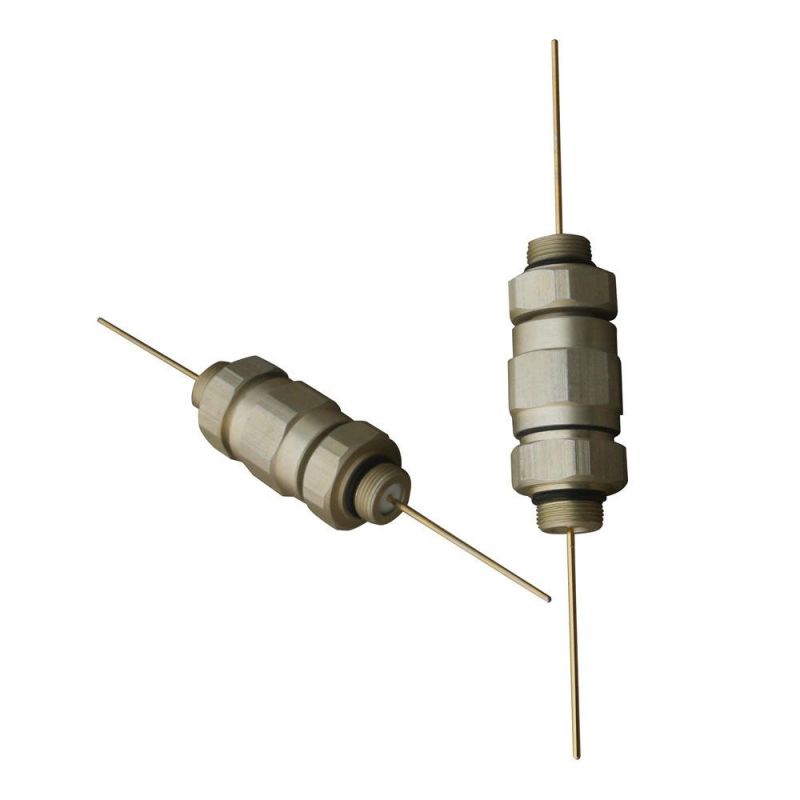

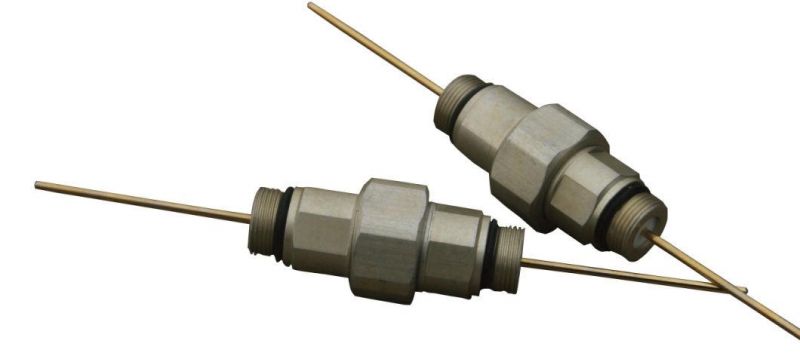

KS-KS adapter used to connect two equipment directly (withou cable)



Connector Dimension5/8"-24 typeFrequency0-1 GHzImpedance75 ohmInsertion loss<0.3dbReturn Loss>=26dbShield Effectiveness>=110dbInsulating Resitance>=5000 M Ω Current Passing15AMaterialAluminiumMOQ500 PCS

Connector Dimension	5/8"-24 type
Frequency	0-1 GHz
Impedance	75 ohm
Indertion loss	<0.3db
Return Loss	>=26db
Shild Effectiveness	>=110db
Insulating Resitance	>=5000 M Ω
Current Passing	15A
Material	Aluminium
MOQ	500 PCS
