Anti-Freeze Star Electric Pipe Heating System Keeps Water Flowing Down to Zero 20 Degree
Wuhu Jiahong New Material Co., Ltd.- Output：3 W,FT. @ 10ºC
- Heating Element Size：5-100 FT
Base Info
- Model NO.：Anti-Freeze Star
- Bending Radius：1 Inch
- Bus Wire Gauge：20 AWG
- Conductor Insulation：Thermoplastic
- Outer Insulation：Thermoplastic
- Min. Installation Temp：-10ºC
- Heating Lead：3htm Self-Regulating Heating Cable
- Cold Lead：2 FT. Length 18,3 with Plug
- Transport Package：White Box and Pallet
- Trademark：jiahong
- Origin：Anhui Wuhu
- Production Capacity：17000PCS Per Day
Description
Catalog Number
Voltage V
Cable Length/ft.
Output W/ft.
Watts
Anti-Freeze Star-5-1
120
5
3
15
Anti-Freeze Star-10-1
120
10
3
30
Anti-Freeze Star-15-1
120
15
3
45
Anti-Freeze Star-20-1
120
20
3
60
Anti-Freeze Star-35-1
120
35
3
105
Anti-Freeze Star-50-1
120
50
3
150
Anti-Freeze Star-75-1
120
75
3
225
Anti-Freeze Star-100-1
120
100
3
300
This system can be installed with confidence that it will operate for years without requiring service. All components are made of the highest quality material and are tested during critical points in the manufacturing process.
The Anti-Freeze Star series system is easy to buy and to install, cable length increments to accommodate many pipe lengths with diameters up to 1.5 ". Simply run the cable straight along the pipe and valves according to the included instructions, affix with a good electrical tape and insulation, and then plug into a ground fault protected electrical outlet.
Company Information
1.About Us
WuHu Jiahong New Material Co. Ltd is the largest heating cable manufacturer in Asia-pacific. We are always dedicated to research, develop and produce both constant wattage and self-regulating heating cables since 1993. Till now, Jiahong has obtained more than 30 national patents. We are one of the few members of China self-regulating heating cable national standard GB/T 19835-2005.
Most of WuHu Jiahong products passed UL, CSA, ETL, TUV, CE, ATEX etc. We export to many regions, especially North America, Europe, Australia and Asia. High quality combines with professional services earned us a good reputation.
2. Why Choose us
Advantages
Our Services
We help our customer develop heating cable, floor heating, snow melting for their application and OEM offered.

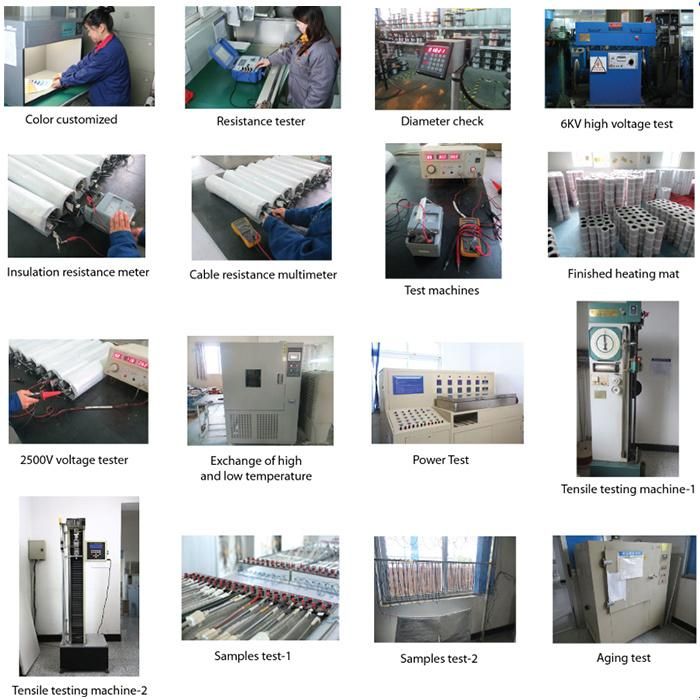

Quality control
3. Company Certificates
FAQ
1.How long will it take for the underfloor heating system to warm up?
The warm up time of an electric underfloor heating system will be dictated by the insulation used beneath it and the output of the system. In general, the better insulated the sub-floor the faster the system will warm up, with Underfloor Insulation boards?facilitating a very speedy warm up time of as little as 15 minutes, and un-insulated concrete floors causing the slowest warm up time. Using a?200W system?beneath ceramic/stone tiles provides a faster warm up time than 150W system.
2. Can I turn my heating on the day it is fitted?
3. Does each room require its own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat. This will allow for simpler and more accurate temperature control of each room and will avoid heating rooms which do not require it.
