• Wire Core Material：Cpper or Aluminium
• Certification：ISO, CCC, CE, Kema Certificate
• Model：YJV
• Brand：Yifang
• Neutral：One-Third,One-Sixth or Less
• Insulation Level：100%,133%

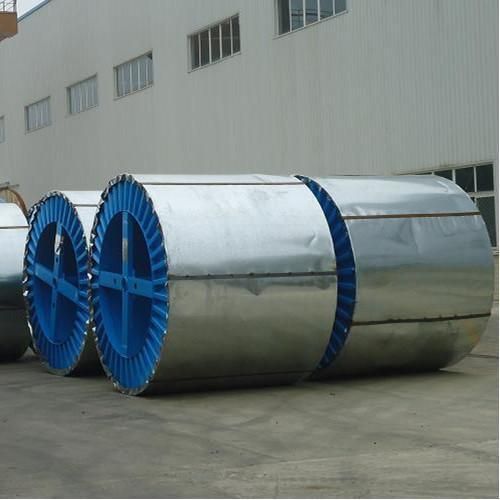

• Transport Package：Wooden Drum, Steel-Wooden Drum, Steel Reel
• Trademark：Yifang
• Origin：China
• Production Capacity：500km Per Month

Basic Info.

Wire Core Material Cpper or Aluminium Certification ISO, CCC, CE, Kema Certificate Model YJV Brand Yifang Neutral One-Third,One-Sixth or Less Insulation Level 100%,133% Transport Package Wooden Drum, Steel-Wooden Drum, Steel Reel Trademark Yifang Origin China Production Capacity 500km Per Month

Product Description

URD 5~46KV Concentric Neutral Power Cable aluminum core with 133% insulation level ICEA S-94-649


1. Applications

 5 to 45KV  XLPE insulated single core concentric neutral cables are used for the transmissio and electrical energy, distribution of electrical energy

2. Reference Standards

ICEA S-94-649, CSA C68.3

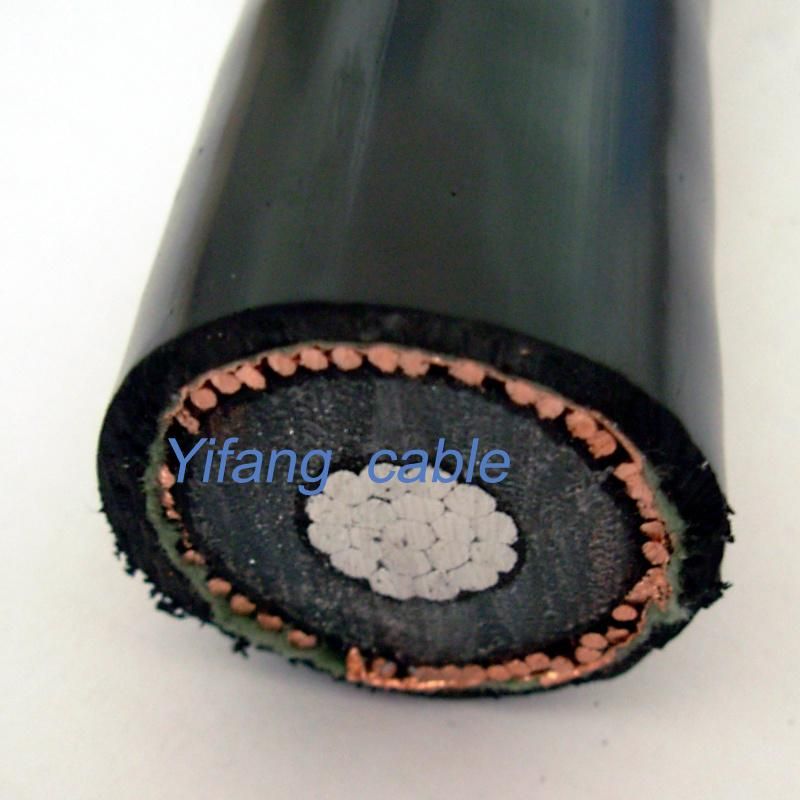

3. Cable Construction

Conducor: stranded  annealed  compcted copper or aluminium wire,  in Class B
                  2AWG~1600MCM

Conductor Shield: Semi-conducting compound

Insulation: Cross-linked polyethylene (XLPE) or Tree retardant cross-linked polyethylene (TR-XLPE)

Insulation Shield: Semi-conducting compound

Concentric Neutral wire: Soft annealed solid copper wires per ASTM B3, helically applied and uniformly spaced. Full or 1/3 Neutral. On request, alternate neutral construction and Water Swellable Powder (WSP).

Wrapping tape(optional): non-woven clothing tape

Outer sheath:  Polyvinyl chloride (PVC) or polyethylene (PE). Configuration Options: On request, Triplex or Paralleled configurations.

4. MAXIMUM CONDUCTOR TEMPERATURE

Normal continuous at 90ºC, Overload at 130ºC and Short circuit at 250ºC
