High Quality and Safety 14AWG Speaker Cable Audio Cable
Hangzhou Risun Cable Co., Ltd.- Application：Audio Cable
- Color：Black
- Type：Twisted Pair
- Material Shape：Round Wire
- Wire Core Material：Bare Copper Wire
- Certification：RoHS, CE, ISO9001, SGS,CPR,ETL
Base Info
- Model NO.：14AWG speaker audio Cable
- Brand：Risun or OEM
- Cores：2 Cores
- Outer Jacket Diameter：5.3mm
- Nom. Diameter：2.1mm
- Transport Package：100m,Roll, 305m,Drum
- Specification：ETL, CE, RoHS, SG, ISO9001
- Trademark：Risun or OEM
- Origin：Hangzhou, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Mont
Description

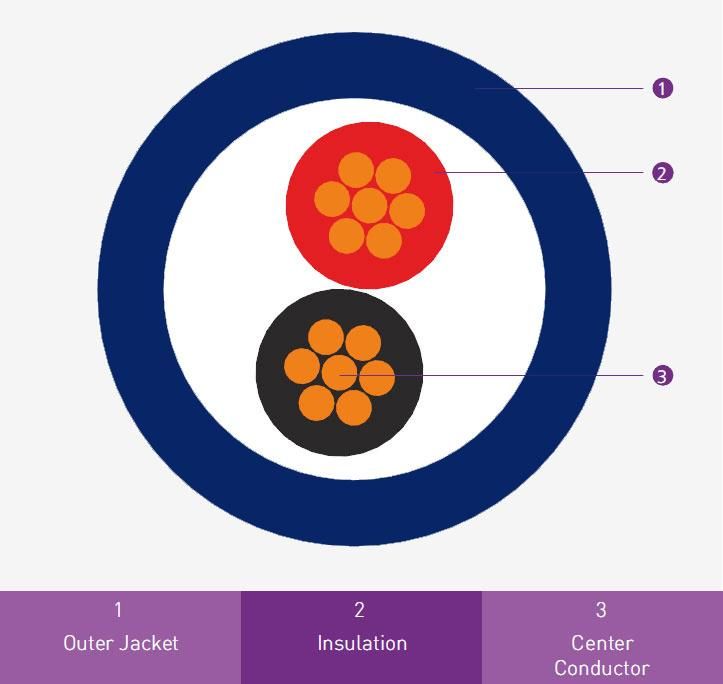

Construction& Physical Characteristics
| Characteristic | Value |
| No.of Core | 2 |
| Conductor Size | 16AWG ,41*0.25mm |
| Insulation Diameter | 2.1 mm |
| Jacket Thickness | 0.55 |
| Outer Jacket Diameter | 5.30mm |
| Max. Recommended Pulling Tension | 50N |
| Operating Temperature | -10ºC to +60ºC |
Electrical Characteristics
| Characteristic | Unit | Value |
| Nom. Conductor DC Resistance | Ω/Km | 8.60 |
| Dielectric Strength between Pairs | KV/5min | 1.5 |
| Maximum Operating Voltage | Vrms | 300 |
| Characteristic | Value |
| Test Material | PVC and LSZH |
| Before Tensile Strength (Mpa) | ≥ 13.8 |
| Aging Elongation (%) | ≥ 100 |
| After Tensile Strength (Mpa) | ≥ 85 |
| Aging Elongation (%) | ≥ 50 |
| Cold Bend (-20±°C x 4 hrs) | No Crack |
Insulation Colour Code
| Individual Pair | Colour |
| Core 1 | Red |
| Core 2 | Black |

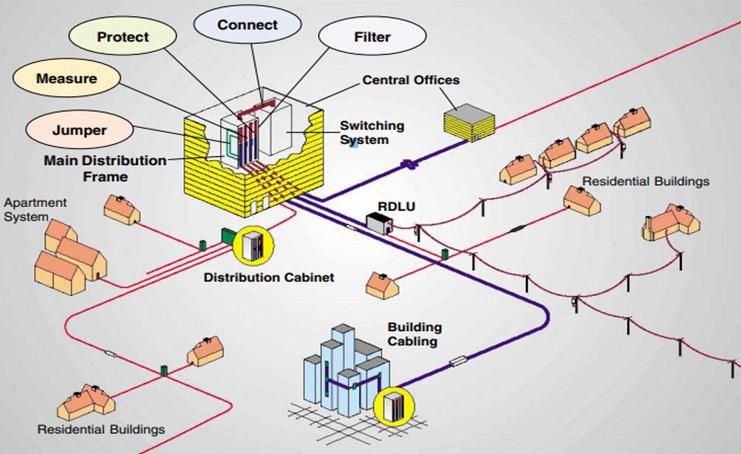

Application:
Company Introduction

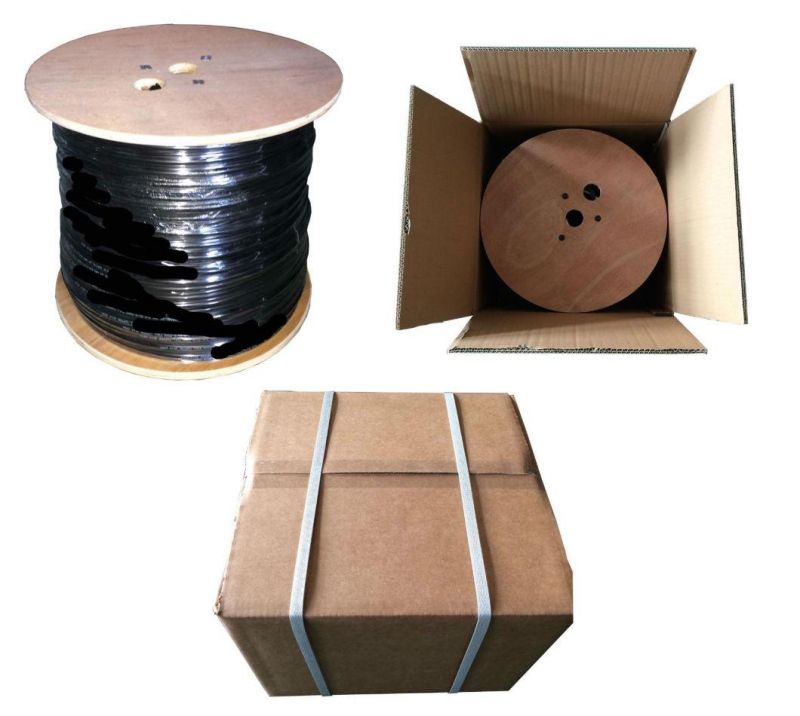

Packing:

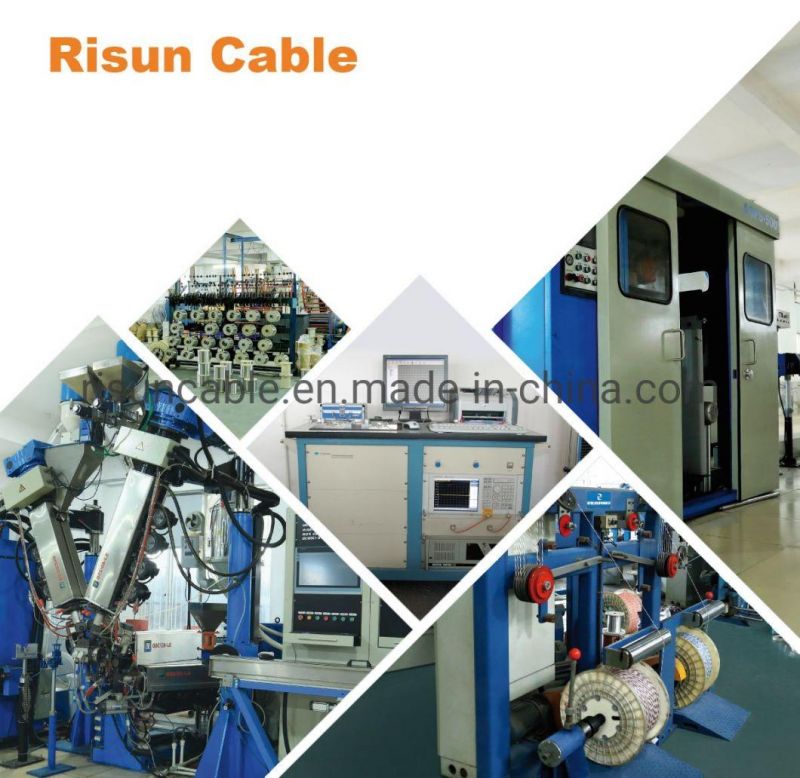

Production line:
FAQ
Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?
A: We are factory.Q2. HOW LONG IS YOUR DELIVERY TIME?
A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one colorQ4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.
Q5. HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
