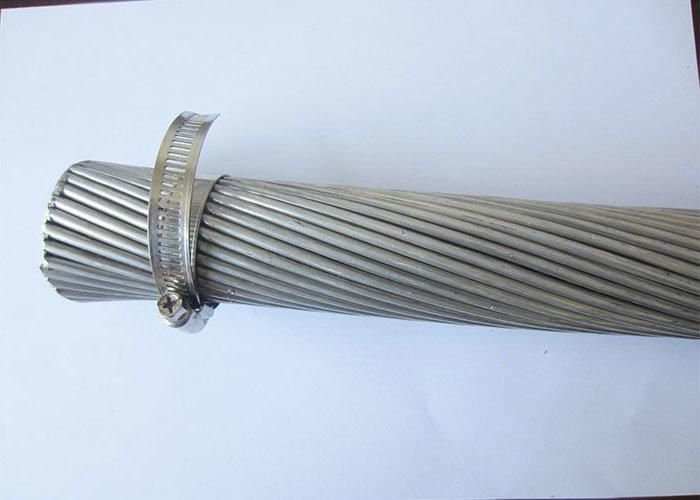

Cable AAAC 70mm2 with 19h Strands
YIFANG ELECTRIC GROUP INC.- Application：Overhead
- Voltage：High Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：None
- Material Shape：Round Wire
Base Info
- Model NO.：Cable AAAC 70mm2
- Wire Core Material：Aluminum Wire
- Certification：ISO, CCC, CE, UL
- Model：AAAC 35
- Brand：Yifangcable
- Size：70
- Standard：NFC 34 215,En 50182
- Material：Aluminum Alloy
- Coutry：Senegal,Madagascar,Congo,Burkina Faso
- Strands：19
- Transport Package：Wooden Drum
- Specification：1.2m Drum
- Trademark：Yifang Cable
- Origin：China
- HS Code：7614900000
- Production Capacity：1000km,Month
Description
Item 2-Technical Data For AAAC 6201 (19H) 70MM2 NO DESCRIPTION UNIT DATA 1 Type/ code name -- AAAC 50mm2 2 Material -- Aluminium Alloy 3 Standards -- IEC 61089,DIN 48201,ASTM B399 4 Cross Section Area mm2 65.81 5 Conductor construction Wire No. No.s 19 Nominal wire dia. mm 2.1 6 Approx. Overall Diameter mm 10.5 7 Approx. Weight kg/km 181 8 Min.Breaking Load kN 20.07 9 Max. D.C. Resistant 20ºC Ω/km 0.5090
