Copper Wire BV Bvr RV PVC Cable 4mm2 6 Sq mm Cable
Luoyang Sanwu Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Indoor
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：Ls-Power Cable
- Material Shape：Round Wire
- Range of Application：Indoor
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Dayuan
- Conductor：Annealed Copper Wire,Solid or Stranded
- Max.Operating Temperature：70,90,105 Degree
- Voltage：300,500V,450,750V
- Color：Black,Brown,Grey,Blue,Green,Yellow
- OEM/ODM：Ok
- Transport Package：Packed as Rolls, or Wooden Drum or as Customized
- Specification：IEC, ISO, GB, TUV, CCC
- Trademark：Da Yuan
- Origin：Henan, China
- HS Code：8544492100
- Production Capacity：100000 M,Day
Description
Weight Kg/kmCu Al Cu Al 1.5 1/1.38 0.7 3.3 12.1 - 0.011 19.2 - 1.5 7/0.52 0.7 3.5 12.1 - 0.010 20.6 - 2.5 1/1.78 0.8 3.9 7.41 11.8 0.010 30.8 15.0 4 1/2.25 0.8 4.4 4.61 7.39 0.0085 45.5 21.0 6 1/2.76 0.8 4.9 3.08 4.91 0.0070 65.0 29.0 10 7/1.35 1.0 7.0 1.83 3.08 0.0065 110.0 52.0 16 7/1.7 1.0 8.0 1.15 1.91 0.0050 170.0 70.0 25 7/2.14 1.2 10.0 0.727 1.20 0.0050 270.0 110.0 35 7/2.52 1.2 11.5 0.524 0.868 0.0040 364.0 150.0 50 19/1.78 1.4 13.0 0.387 0.641 0.0045 5000.0 200.0 70 19/2.14 1.4 15.0 0.268 0.443 0.0035 688.0 269.0 95 19/2.52 1.6 17.5 0.193 0.320 0.0035 953.0 360.0 120 37/2.03 1.6 19.0 0.153 0.253 0.0032 1168.0 449.0 150 37/2.25 1.8 21.0 0.124 0.206 0.0032 1466.0 551.0 185 37/2.52 2.0 32.5 0.099 0.164 0.0032 1808.0 668.0
All the goods are full meter and working life are 25 years!
Company Information
BV cable factory and worshop corner

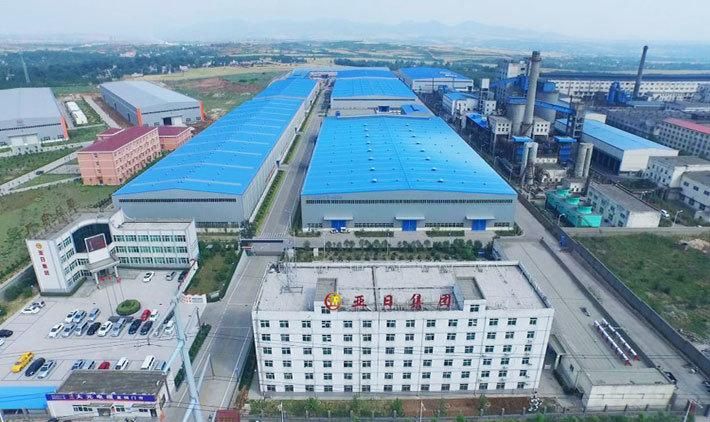

Our factory is about 200,081m2 with register capital about 200 million. 700 stuff and 40 engineer. every step is to make sure the delivery time and quality!
Packaging & Shipping

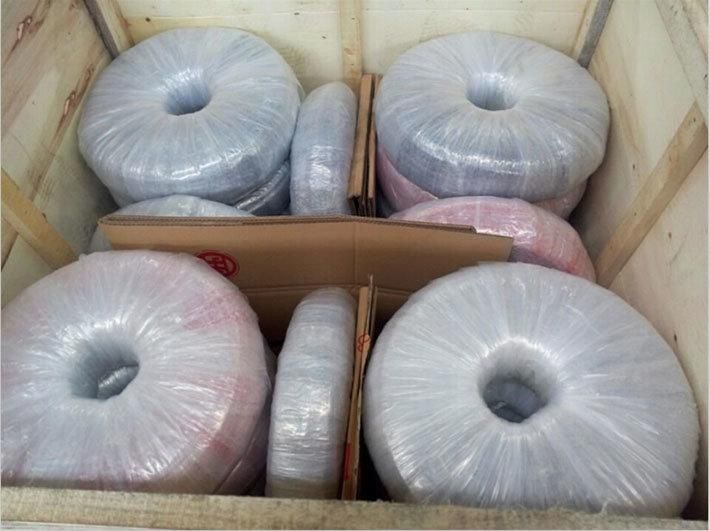

BV cable packing, we can also make it as your need for that we have two professional wooden engineer.
Inspection machine

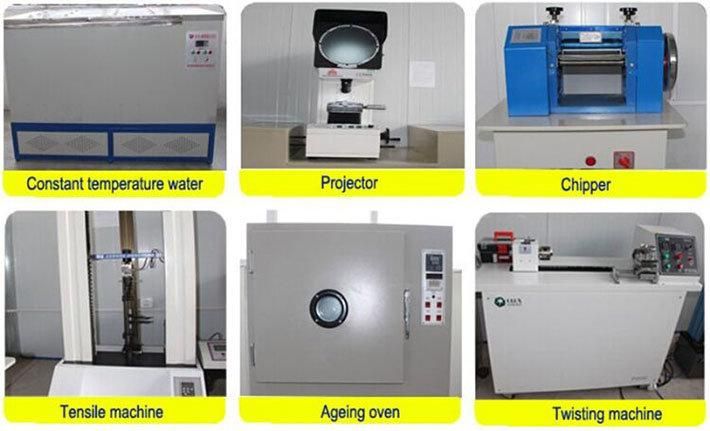

BV cable six inspection machine
We inspect every product before deliverying the goods to ensure the quality!
Contact
Lisa Jiang
Department sale manager
International Trade Department
Luoyang Dayuan Cable Factory Co., Ltd
=================================
Tel: +86-379-69991593
Mobile: + 86-13213593625
Web: http://dycable.en.made-in-china.com
Alibaba Showroom: http://dycable.en.made-in-china.com
=================================
| Norminal Sectional area mm2 | Conductor No/Dia.mm | Nominal Insulated thick mm | Max overall Dia.mm | Conductor Resistance at 20°C | Min insulated resistance at 70MΩ/KM | Weight Kg/km |
| 2.5 | 9/0.41 | 0.8 | 4.2 | 7.41 | 0.011 | 33.0 |
| 4 | 19/0.52 | 0.8 | 4.8 | 4.61 | 0.009 | 48.0 |
| 6 | 19/0.64 | 0.8 | 5.6 | 3.08 | 0.0084 | 68.0 |
| 10 | 49/0.64 | 1.0 | 7.6 | 1.83 | 0.0072 | 115.0 |
| 16 | 49/0.64 | 1.0 | 8.8 | 1.15 | 0.0062 | 176.0 |
| 25 | 98/0.58 | 1.2 | 11.0 | 0.727 | 0.0058 | 272.0 |
| 35 | 133/0.58 | 1.2 | 12.5 | 0.524 | 0.0052 | 384.0 |
| 50 | 133/0.68 | 1.4 | 16.5 | 0.387 | 0.0051 | 510.0 |
| 70 | 189/0.68 | 1.4 | 16.5 | 0.268 | 0.0045 | 714.0 |
| 95 | 259/0.68 | 1.0 | 19.5 | 0.139 | 0.0035 | 965.0 |
| 120 | 259/0.76 | 1.8 | 22.0 | 0.153 | 0.0032 | 1210.0 |
