• Model NO.：YJV32 YJV22
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Yjv32
• Brand：Hongda
• Cores：1 2 3 4 5
• Conductor：Copper
• Transport Package：in Drum or in Pallent
• Specification：4*16 4*25 4*35 4*50 4*70 4*95 4*120
• Trademark：NO
• Origin：Henan
• HS Code：8544492100
• Production Capacity：10000 M Per Day

TypeCu or Al /XLPE/CTS or CWS/PVC,

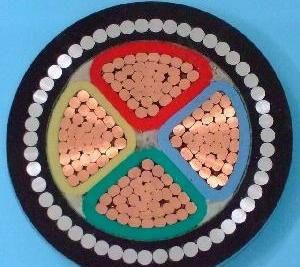

Cu /XLPE/CTS /PVC/SSWA/PVCVoltage0.6/1kV,1.8/3kV, 1.9/3.3kV,6/10kV, 6.35/11kV, 8.7/10kV, 8.7/15kV, 12/20kV, 12.7/22kV, 18/30kV, 19/33kV,26/35kVCores1C, 2C,3C,3C+E,4C,5C,3C+2E,4C+ERange of Nominal cross section2.5 mm2 - 630 mm2ApplicationUnderground cable steel wire/tyoe armored copper power cable is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kV~26/35kV. For laying indoors, in tunnel, cable trench, well or direct in ground.StandardIEC 60502, BS 6622, GB/T12706ConstructionsConductor:Copper or Aluminium CompactedInsulation:XLPEMetallic screen:Copper tape or Copper wireArmour:Steel Wire Armour or Steel Tape ArmourSheath:PVC, PE or LSZHMax. Operating Temperature90 ºC
