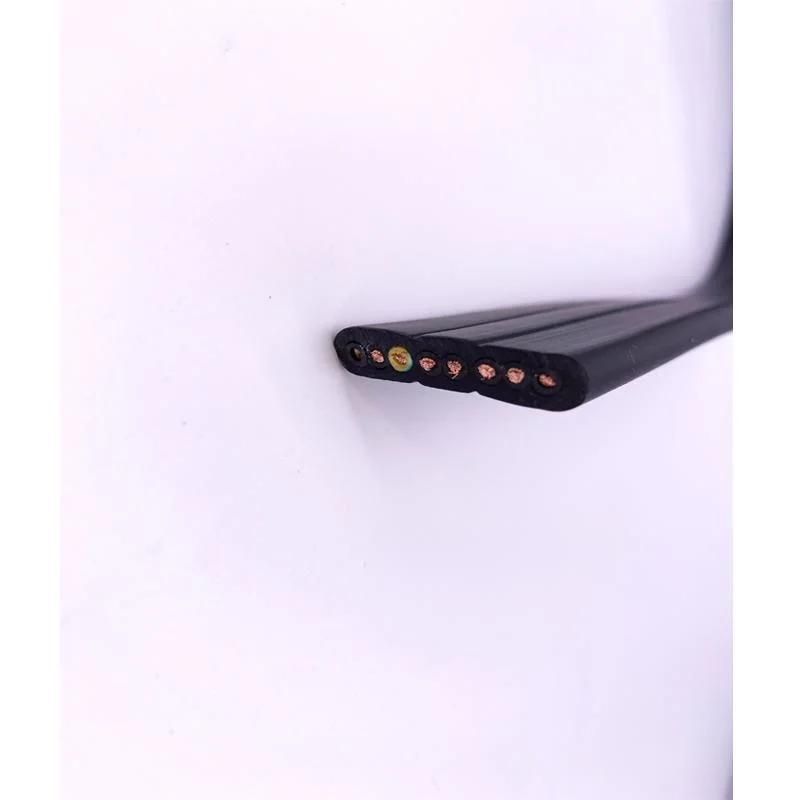

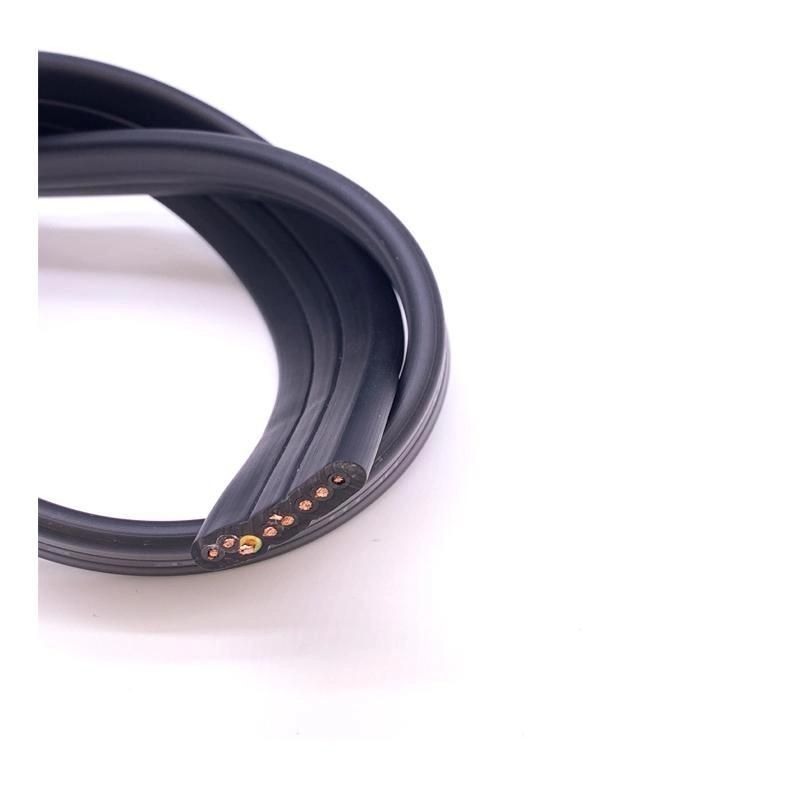

H07vvh6-F/ (H) 07vvh6-F Flat Cable for Trolley Systems and Transfer Lines

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：H07VVH6-F, (H)07VVH6-F Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemH07VVH6-F/ (H)07VVH6-F Flat Cable for Trolley Systems and Transfer LinesConductorBare copper stranded condutorInsulationPVCStrandingCores parallel side by side Outer sheathPVCCore numberMulticores (As client's requirement)Rated voltage Uo/U 450/750 VTesting voltage 2,5 kVCurrent carrying capacityacc. to DIN EN50565-1Min. bending radius fixed acc. to DIN EN50565-1Min. bending radius movedacc. to DIN EN50565-1Operat. temp. fixed min/max -35 °C / +60 °COperat. temp. moved min/max -25 °C / +60 °C Temp. at conductor+70 °CBurning behavior Self-extinguishing and flame retardant acc. to IEC 60332-1 ColorOptionalApplicationPower and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.
