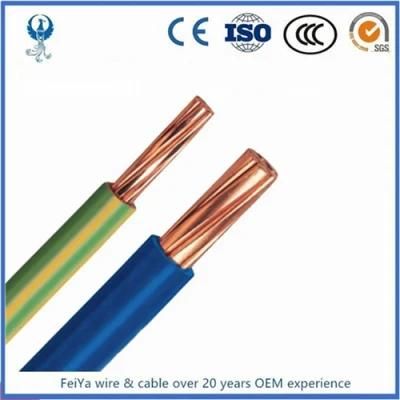

Feiya Australian Standard (Low Voltage) 0.6/1kv Industrial Cables XLPE Insulated, PVC Sheathed 2 Core+E Unarmoured Electric Cables

Tianjin Feiya Electric Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Underground
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：XLPE

Base Info

  • Model NO.：unarmoured cable
  • Material Shape：Round Wire
  • Range of Application：Mains, Submains and Subcircuits Unenclosed
  • Certification：CE, UL, CCC, RoHS, VDE
  • Brand：Feiya
  • Color：Black Red Yellow, According to Voltage Level
  • Whether It Is Environmentally Friendly：Yes
  • Whether Quality Inspection：Provide Inspection Certificate
  • Standard：Customized According to Specified National Standar
  • OEM/ODM：Accepted
  • Core：Single Core and Multicore
  • Transport Package：Standard Export Packaging
  • Specification：International General Specifications
  • Trademark：Fengda
  • Origin：Tianjin, China(Mainland)
  • HS Code：8544492100
  • Production Capacity：100000,Day

Description

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

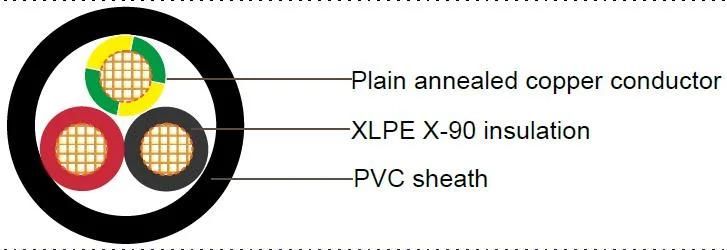

Cable Construction

CONDUCTORPlain annealed copper.
INSULATIONXLPE X-90.
INSULATION COLOUR:2C + E - Red, Black, Green/yellow
SHEATH:Polyvinylchloride compound PVC 5V-90
SHEATH COLOUR:Black, other colors are available upon request

Technical Characteristics

Feiya Australian Standard (Low Voltage) 0.6/1kv Industrial Cables XLPE Insulated, PVC Sheathed 2 Core+E Unarmoured Electric Cables



CONDUCTORCURRENT RATINGSELECTRICAL CHARACTERISTICS
NOMINAL AREA MM2UNENCLOSED IN AIR
A		BURIED DIRECT ABURIED IN DUCTS AMAXIMUM DC RESISTANCE @20°C OHM/KMMAXIMUM AC RESISTANCE @90°C OHM/KMREACTANCE OHM/KMSINGLE PHASE VOLTAGE DROP @90°C MV/AM
1080107821.832.330.0841.68
161071391071.511.470.0812.95
251431821390.7270.9270.0811.86
351601301600.5240.6690.07861.35
501951601900.3870.4940.07511.00
702502002350.2680.3430.07410.703
953102402850.1930.2480.07250.520
1203602853250.1530.1970.07130.423

Cable Parameter

NOM. CONDUCTOR AREA
MM2		CONDUCTOR NO./ ODNOM. INSULATION THICKNESS MMNOM. EARTH CONDUCTOR AREA
MM2		NOM. EARTH CONDUCTOR INSULATION THICKNESS MMNOM. SHEATH THICKNESS MMNOM. OVERALL DIAMETER MMAPPROX. MASS KG/KM
107/1.350.740.71.414.9380
167/1.700.760.71.416.6520
257/2.140.960.71.420.2750
357/2.650.9100.71.423.0985
5019/1.891.0160.71.424.11310
7019/2.241.1250.91.429.81860
9519/2.651.1250.91.531.62415
12019/2.941.2350.91.635.53055
