Manufacturer Supply ACSR Bare Conductor BS215.2 Standard Gopher/Weasel/Ferret
Guangdong Vango Cable Industry Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead Installation
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：Bare
Base Info
- Model NO.：ACSR
- Material Shape：Round Wire
- Range of Application：Overhead Installation
- Certification：ISO9001, ISO9001, ISO14001, CCC, Ce
- Brand：Gdyg
- Warranty：12 Months
- Standard：IEC, BS, ASTM etc.
- Transport Package：Wooden Reel, Steel Reel
- Specification：10-1500 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- HS Code：7614100000
- Production Capacity：4600 Tons Per Month
Description
SteelAluminum / Steel No. of wires / Diameter No.of wires / Diameter Steel core Conductor Aluminum Galvanized steel wire mm2 mm2 / mm2 % n / mm n / mm mm mm Ω/km kN kg/km kg/km kg/km 1 25 25 / 4 GOPHER 16% 6 / 2.36 1 / 2.36 2.36 7.08 1.093 9.61 71.9 34.0 105.9 2 30 30 / 5 WEASEL 17% 6 / 2.59 1 / 2.59 2.59 7.77 0.9077 11.45 86.6 41.0 127.5 3 40 40 / 7 FERRET 18% 6 / 3.00 1 / 3.00 3.00 9.00 0.6766 15.20 116.1 55.0 171.1 4 50 50 / 9 RABBIT 18% 6 / 3.35 1 / 3.35 3.35 10.05 0.5426 18.35 144.8 68.6 213.4 5 70 70 / 43 HORSE 61% 12 / 2.79 7 / 2.79 8.37 13.95 0.3936 61.20 202.7 334.6 537.3 6 100 100 / 14 DOG 14% 6 / 4.72 7 / 1.57 4.71 14.15 0.2733 32.70 288.6 106.0 394.6 7 150 150 / 37 WOLF 25% 30 / 2.59 7 / 2.59 7.77 18.13 0.1828 69.20 436.6 288.4 725.0 8 150 150 / 9 DINGO 6% 18 / 3.35 1 / 3.35 3.35 16.75 0.1815 35.70 437.0 68.6 505.6 9 175 175 / 43 LYNX 25% 30 / 2.79 7 / 2.79 2.79 19.53 0.1576 79.80 506.7 334.6 841.3 10 175 175 / 10 CARACAL 6% 18 / 3.61 1 / 3.61 3.61 18.05 0.1563 41.1 507.5 79.6 587.1 11 200 200 / 49 PANTHER 25% 30 / 3.00 7 / 3.00 3.00 21.00 0.1363 92.25 585.8 386.9 972.7 12 200 200 / 12 JAGUAR 6% 18 / 3.86 1 / 3.86 3.86 19.30 0.1367 46.55 580.2 91.0 671.2 13 400 400 / 56 ZEBRA 14% 54 / 3.18 7 / 3.18 3.18 28.62 0.0674 131.9 1185.9 434.7 1620.6
Main features
Type: Bare
Conductor Type: Stranded
Application: Overhead Transmission Line
Conductor Material: Aluminum
Sheath Material: Bare
Insulation Material: Bare
Model No: ACSR Conductor
Material Shape: Round Wire
Range of Application: Overhead Installation
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
HS Code: 7614100000
ACSR Code: Turkey, Swan, etc
ACSR Feature: Simple Construction, Easy Installation, Excellent Electric and Mechanical and Conductive etc
Specification: 10mm2 - 1500mm2
ACSR Conductor Advantage: Antiseptic Model.
Supply Record: African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China
Our company
Workshop

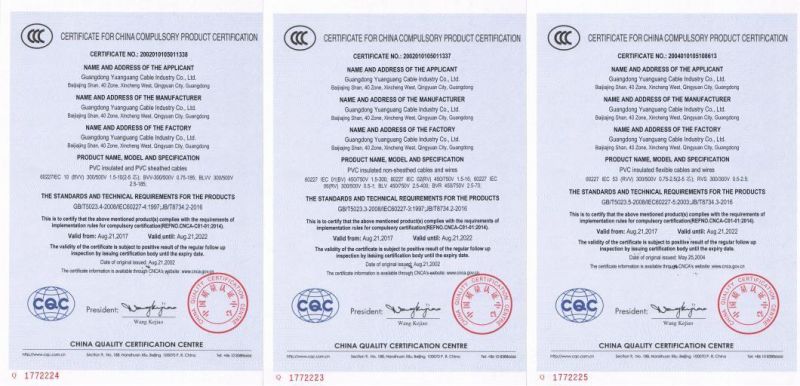

Certificates
Customers Visit
Main features
Type: Bare
Conductor Type: Stranded
Application: Overhead Transmission Line
Conductor Material: Aluminum
Sheath Material: Bare
Insulation Material: Bare
Model No: ACSR Conductor
Material Shape: Round Wire
Range of Application: Overhead Installation
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
HS Code: 7614100000
ACSR Code: Turkey, Swan, etc
ACSR Feature: Simple Construction, Easy Installation, Excellent Electric and Mechanical and Conductive etc
Specification: 10mm2 - 1500mm2
ACSR Conductor Advantage: Antiseptic Model.
Supply Record: African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China
