0.6/1kv Copper/Aluminium Conductor PVC Insulated and Sheathed Power Cable.
Henan Hongda Cable Co., Ltd.- Application:Construction, Underground, Industrial, Power Station
- Voltage:Low and Medium Voltage Cable
- Current:DC & AC
- Insulation Material:PVC
- Sheath Material:PVC
- Material Shape:Round Wire
Base Info
- Model NO.:VV
- Certification:ISO, CCC, CE
- Model:VV
- Brand:Hongda
- Color:as Customer Requirement
- MOQ:500
- Transport Package:Steel-Wooden Drum,Wooden Drum
- Specification:As customer requirement
- Trademark:HONGDA
- Origin:China
- Production Capacity:2000m,Week
Description
Chinese Type(General Type)Designation Cu Al VV (CU/PVC/PVC) VLV (AL/PVC/PVC) Cu conductor(Al conductor)PVC insulated PVC sheathed power cable VY (CU/PVC/PE) VLY (AL/PVC/PE) Cu conductor(Al conductor)PVC insulated PE sheathed power cable VV22 (CU/PVC/STA/PVC) VLV22 (AL/PVC/STA/PVC) Cu conductor(Al conductor)PVC insulated double of steel-tape armored PVC sheathed power cable VV23 (CU/PVC/STA/PE) VLV23 (AL/PVC/STA/PE) Cu conductor(Al conductor)PVC insulated double of steel-tape armored PE sheathed power cable VV62 (CU/PVC/ATA/PVC) VLV62 (AL/PVC/STA/PVC) Cu conductor(Al conductor)PVC insulated double of aluminium-tape armored PVC sheathed power cable VV63 (CU/PVC/STA/PE) VLV63 (AL/PVC/STA/PE) Cu conductor(Al conductor)PVC insulated double of aluminium-tape armored PE sheathed power cable VV32 (CU/PVC/SWA/PVC) VLV32 (AL/PVC/SWA/PVC) Cu conductor(Al conductor)PVC insulated steel-wire armored PVC sheathed power cable VV33 (CU/PVC/SWA/PE) VLV33 (AL/PVC/SWA/PE) Cu conductor(Al conductor)PVC insulated steel-wire armored PE sheathed power cable VV72 (CU/PVC/AWA/PVC) VLV72 (AL/PVC/AWA/PVC) Cu conductor(Al conductor)PVC insulated aluminium-wire armored PVC sheathed power cable VV73 (CU/PVC/AWA/PE) VLV73 (AL/PVC/AWA/PE) Cu conductor(Al conductor)PVC insulated aluminium-wire armored PE sheathed power cable
Note: KAIQI POWER can produce "Flame-Retardant Series", "Fire-Resistant Series", "Low Smoke Halogen Free (LSHF/LSOH) Series","Low Smoke Low Halogen (LSLH) Series", etc. power cable as customer required.
Performance in line withIEC60331, IEC60332,IEC 61034,IEC60754 requirements.
5 Construction
Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductor: Plain circular ,compacted or shaped stranded copper or aluminium conductor ,conform to IEC60228 CLass 1 or Class 2
Insulation: PVC Compound Insulation
Colour identification :
1 Core: Red or Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Bedding /Inner Sheath :PVC Compound
Armour: Aluminium wire(AWA) or aluminium alloy wire(AWA), Galvanized steel wire(SWA) or steel tape(STA) ect.
Outer Sheath:PVC or PE Compound
Note: The armored material of single core cable should be non-magnetic or magnetic reduced structure. Generallly, single core armored cable (which uses steel or steel wire armored cable) only applies to DC occasions.

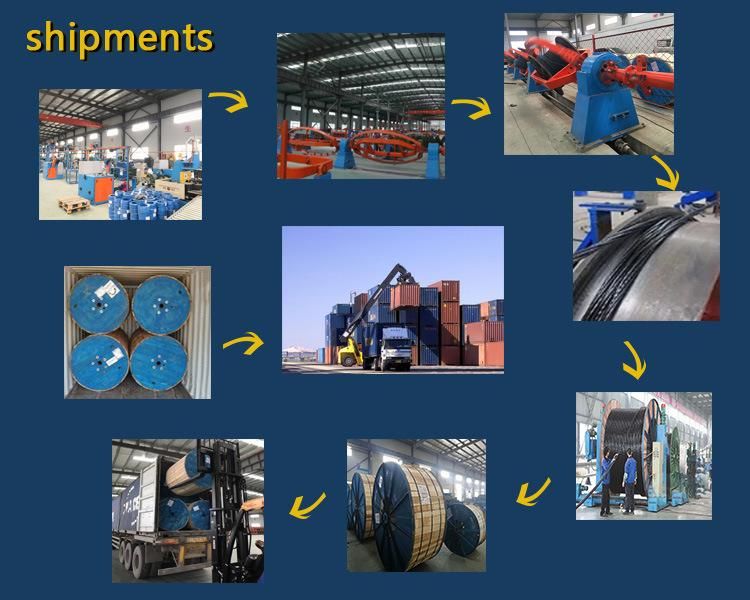

Paking & Shipping
Our service
Note: KAIQI POWER can produce "Flame-Retardant Series", "Fire-Resistant Series", "Low Smoke Halogen Free (LSHF/LSOH) Series","Low Smoke Low Halogen (LSLH) Series", etc. power cable as customer required.
Performance in line withIEC60331, IEC60332,IEC 61034,IEC60754 requirements.
5 Construction
Conductor shaped:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductor: Plain circular ,compacted or shaped stranded copper or aluminium conductor ,conform to IEC60228 CLass 1 or Class 2
Insulation: PVC Compound Insulation
Colour identification :
1 Core: Red or Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Bedding /Inner Sheath :PVC Compound
Armour: Aluminium wire(AWA) or aluminium alloy wire(AWA), Galvanized steel wire(SWA) or steel tape(STA) ect.
Outer Sheath:PVC or PE Compound
Note: The armored material of single core cable should be non-magnetic or magnetic reduced structure. Generallly, single core armored cable (which uses steel or steel wire armored cable) only applies to DC occasions.
Paking & Shipping
Our service
If you come to visit the factory, you can take the train or plane to zhengzhou, we can go to zhengzhou airport or railway station to pick you up, hongda company will give you the most satisfactory service.
