• Model NO.：aaac cable
• HS Code：76149000
• Production Capacity：24000km

Basic Info.

Model NO. aaac cable HS Code 76149000 Production Capacity 24000km

Product Description

Specifications

aaac cable
1.conductor:aluminum alloy
2.stranding no:7,19,37,61,91
3.Standard of manufacture:BS,ASTM,DIN,IEC

Product Description
All aluminium alloy conductor, aaac cable with BS,ASTM,DIN,IEC standard
1 Description of aaac cable

Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.

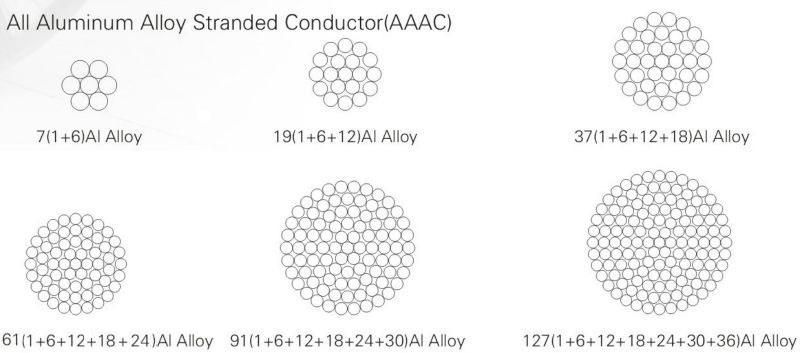

(as below structure diagram)


2 Application of aaac cable
Used as bare overhead conductor for power distribution lines. Designed utilizing a high-strength aluminium alloy to achieve a high strength -to-weight ratio; affords better sag characteristics. Aluminium alloy gives AAAC higher resistance to corrosion than ACSR.

3 Manufacturing Standards of aaac cable
GB/T 1179-2008, IEC 61089,BS3242 ,BS EN 50182, DIN 48201, ASTM B399 or as required.
4.Code name of  aaac cable


ASTM-B399	BS EN50182	DIN48201	BS3242	IEC61089
Akron	Box	16mm²	ALMOND	16mm²
Alton	Acacia	25mm²	CEDAR	25mm²
Ames	Almond	35mm²	FIR	40mm²
Azusa	Cedar	50mm²	HAZEL	63mm²
Anaheim	Fir	70mm²	PINE	100mm²
Amherst	Hazel	95mm²	OAK	125mm²
Alliance	Pine	120mm²	ASH	160mm²
Butte	Willow	150mm²	ELM	200mm²
Canton	Oak	185mm²	UPAS	250mm²
Cairo	Mulberry	240mm²		315mm²
Darien	Ash	300mm²		400mm²
Elgin	Elm	400mm²		450mm²
Flint	Poplar	500mm²		500mm²
Greeley	Sycamore	625mm²		560mm²
	Upas	800mm²		630mm²
	Walnut	1000mm²		710mm²
	Yew			800mm²
	Totara			900mm²
	Rubus			1000mm²
	Araucaria			1120mm²
	Redwood			1250mm²
