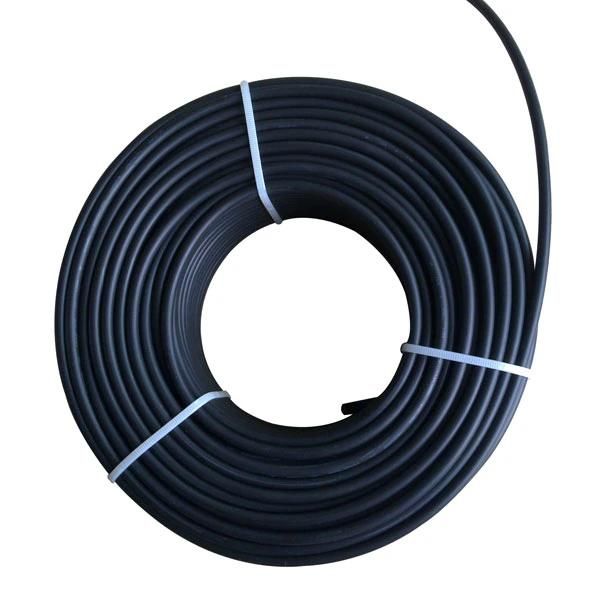

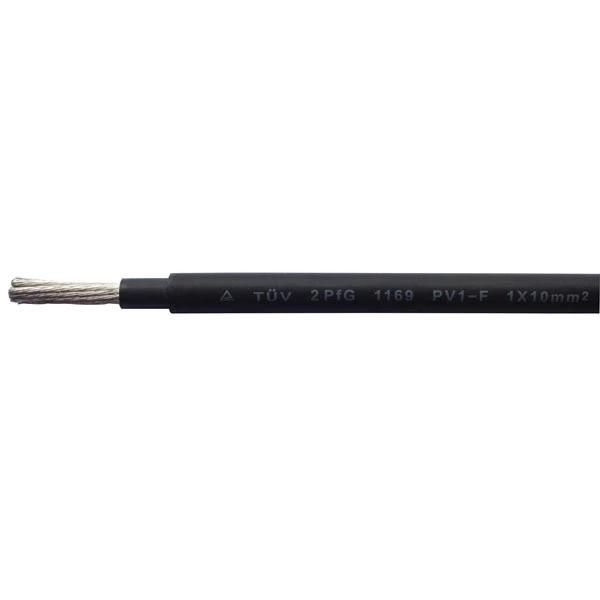

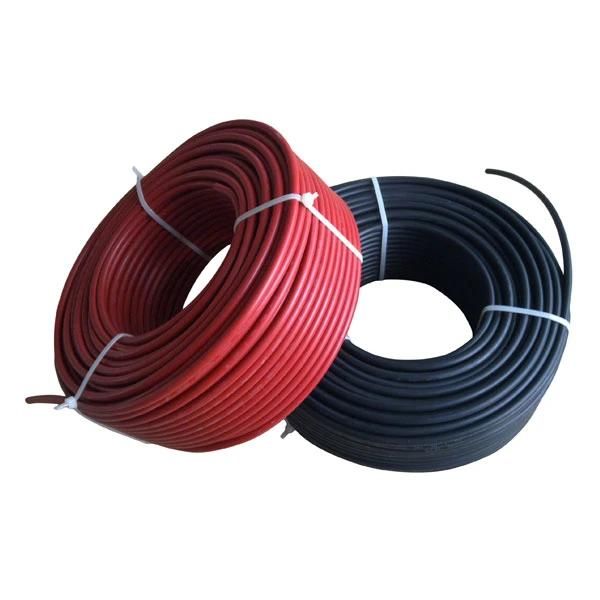

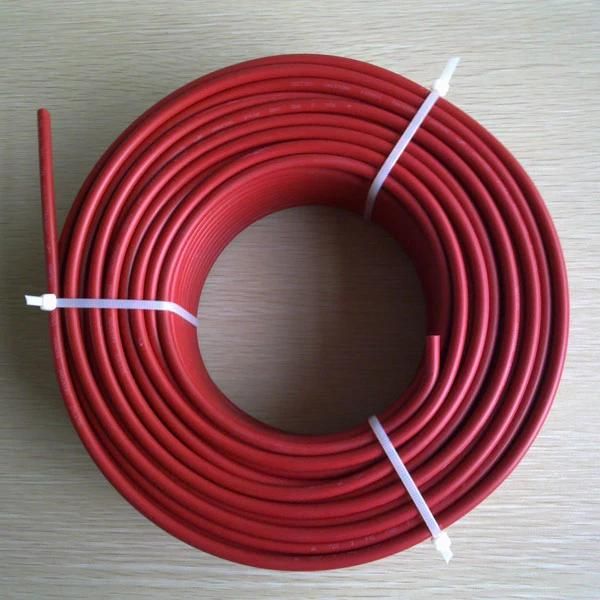

TUV Approved Photovoltaic PV Cable 4mm2 AWG12 Solar Panel Cables and Wires
Changsong Electric Co., Ltd.- Application：Telecommunication
- Material Shape：Flat Wire
- Sheath Material：PVC
- Insulating Material：PVC
- Conductor Type：Solid
- Brand：Changsong
Base Info
- Model NO.：BSGd
- Certification：TUV
- Wire Core Material：Red Copper Wire
- Transport Package：Standard Export Packing
- Specification：PV
- Trademark：Changsong
- Origin：Zhejiang, China
- Production Capacity：50000PCS,Year
Description

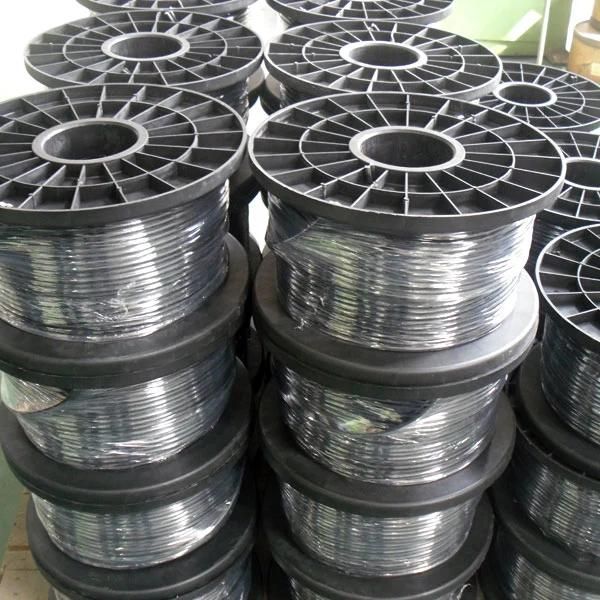

200m/roll ,17kgCable Connector
> Composite contact material: Copper, silver plating
> Rate voltage: DC 1000V. Safety class: class
> Junction temperature current:16A
> Contact presistance:<0.3mΩ
>Waterproof grade: IP 67
> Temperature range:-40ºC~+85ºC
> Composite contact material: Copper, silver plating
> Rate voltage: DC 1000V. Safety class: class
> Junction temperature current:16A
> Contact presistance:<5mΩ
>Waterproof grade: IP 67
>Temperature range:-40ºC~+85ºC
>Composite contact material:copper,tin
>Current:20A(4mm2),30A(6mm2)
>Withstanding Voltage:DC 600V
>Contact resistance:<2mΩ
>Insulation Resistance:>500MΩ
> Ambient temperature:-40ºC~+105ºC
>Protection grade:IP67
>Security: level
>Shell:TPE
>Composite contact material:copper,tin
>Current:30A(6mm2)
>Withstanding Voltage:DC 600V
>Contact resistance:<2mΩ
>Insulation Resistance:>500MΩ
> Ambient temperature:-40ºC~+105ºC
>Protection grade:IP67
>Security: level
>Shell:TPE

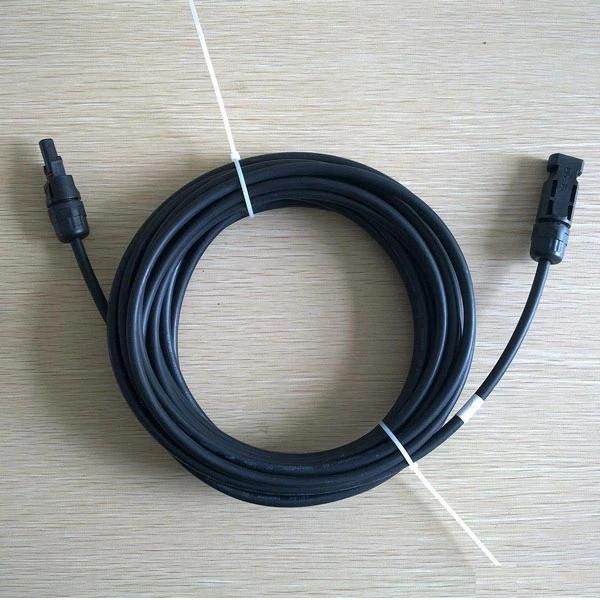

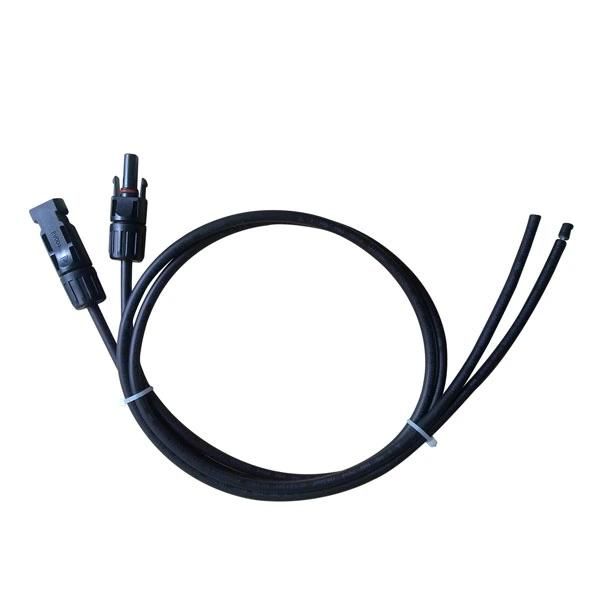

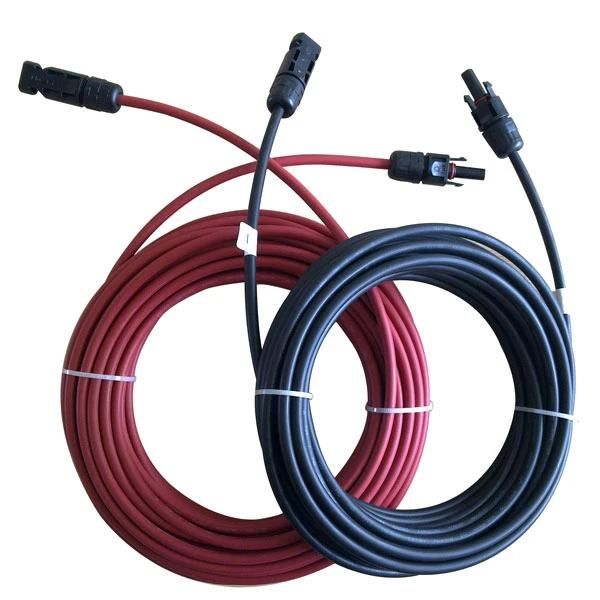

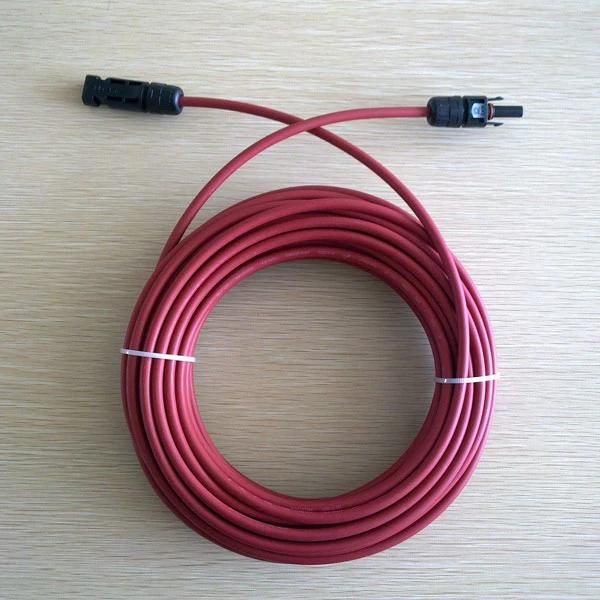

MC4 Connector
> Cable standard: 2.5/4/6/10 mm2> Composite contact material: Copper, silver plating
> Rate voltage: DC 1000V. Safety class: class
> Junction temperature current:16A
> Contact presistance:<0.3mΩ
>Waterproof grade: IP 67
> Temperature range:-40ºC~+85ºC
MC4 T-branch connector
> Cable standard: 2.5/4/6 mm2> Composite contact material: Copper, silver plating
> Rate voltage: DC 1000V. Safety class: class
> Junction temperature current:16A
> Contact presistance:<5mΩ
>Waterproof grade: IP 67
>Temperature range:-40ºC~+85ºC
MC3 cable connector
> Cable standard: 2.5/4/6 mm2>Composite contact material:copper,tin
>Current:20A(4mm2),30A(6mm2)
>Withstanding Voltage:DC 600V
>Contact resistance:<2mΩ
>Insulation Resistance:>500MΩ
> Ambient temperature:-40ºC~+105ºC
>Protection grade:IP67
>Security: level
>Shell:TPE
MC3 T-branch connector
> Cable standard: 2.5/4/6 mm2>Composite contact material:copper,tin
>Current:30A(6mm2)
>Withstanding Voltage:DC 600V
>Contact resistance:<2mΩ
>Insulation Resistance:>500MΩ
> Ambient temperature:-40ºC~+105ºC
>Protection grade:IP67
>Security: level
>Shell:TPE
