UL 2464 Multi Conductor PVC Jacket Tinned Copper Wire Audio Cable

B&T (Zhangzhou) Cable Co., Ltd.
  • Application：Appliance Wiring
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Hook-up Wire
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：UL2464
  • Wire Core Material：Copper
  • Certification：ISO, RoHS, UL, Reach
  • Model：16AWG
  • Brand：Bort
  • Color：Could Be Customized Color
  • Rated Voltage：300V
  • Sample：Normal Sample Free
  • Producing Experience：10 Years
  • Packing：100m,Roll, 305m,Roll,Wrap Plastic Film Packing
  • Company Type：Manufacture
  • Character：Environmental Protection
  • Service：OEM,ODM
  • Factory Management：ISO9001:2015
  • Transport Package：Coil
  • Trademark：BORT
  • Origin：China
  • HS Code：8544492900
  • Production Capacity：50000km,Per Year

Description

Basic Info.

Model NO. UL2464 Wire Core Material Copper Certification ISO, RoHS, UL, Reach Model 16AWG Brand Bort Color Could Be Customized Color Rated Voltage 300V Sample Normal Sample Free Producing Experience 10 Years Packing 100m/Roll, 305m/Roll,Wrap Plastic Film Packing Company Type Manufacture Character Environmental Protection Service OEM,ODM Factory Management ISO9001:2015 Transport Package Coil Trademark BORT Origin China HS Code 8544492900 Production Capacity 50000km/Per Year

Product Description

UL 2464 Multi Conductor PVC Jacket Tinned Copper Wire Audio Cable

UL 2464 Multi Conductor PVC Jacket Tinned Copper Wire Audio Cable


UL 2464 Multi Conductor PVC Jacket Tinned Copper Wire Audio Cable

★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2

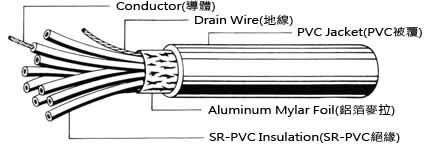

★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure  easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer

AWG/NO.OFCONDNo./mmmmm/n/dmmmm
24×2C11/0.160.2516/4/0.100.804.35
24×3C11/0.160.2516/4/0.100.804.50
24×4C11/0.160.2516/5/0.100.804.80
24×5C11/0.160.2516/6/0.100.805.10
24×6C11/0.160.2516/6/0.100.805.45
24×7C11/0.160.2516/6/0.100.805.50
22×2C17/0.160.2516/5/0.100.804.75
22×3C17/0.160.2516/6/0.100.804.95
22×4C17/0.160.2516/6/0.100.805.30
22×5C17/0.160.2516/7/0.100.805.65
22×6C17/0.160.2516/8/0.100.806.05
22×7C17/0.160.2516/8/0.100.806.10
