4pair Solid Bare Copper or CCA Cat5 Cable UTP Cable 305m Roll Network Internet Cable UTP Cat5e Cat 5e
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, LAN Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable, Building Construction
- Conductor Material：Copper
- Cover Material：PVC
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：cat5 cat5e
- Certification：CE, ISO, RoHS, CCC, UL, VDE, CSA
- Brand：Fengda
- Transport Package：Standard Export Packing
- Specification：International General Specifications
- Trademark：Fengda
- Origin：China, Tianjin
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description
1000m UTP CAT5E LAN cable Network CABLE
Material Instruction
1.CCA or 24AWG Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE;
4.Eco-friendly PVC/LSZH Jacket , high-temperature resistance,long working life.
Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition Class E Category 5e channel standards.
2. Exceed requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e Component standards;
3. Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
5. Length cable marking enable easy identification of remaining cable which reduces installation time and cable scrap.
6. Color Availability: Additional cable colors available.
Electronic Characteristics
Impedance: 100± 15(ohms).
Rated Temperture: 75º C
DC Resistance unbalance(%): Max2.5
DC Resistance 20º C: 8.4(Ohms/100m)
Pair-to-Ground Capacitance Unbalance: 330(Pf/100m)
Transfer Impendance: Max 10 mohms/m@100MHz.
Installation Resistance: >5000MΩ *KM
Dielectric strength: DC 2500V 2S
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000,ROHS.

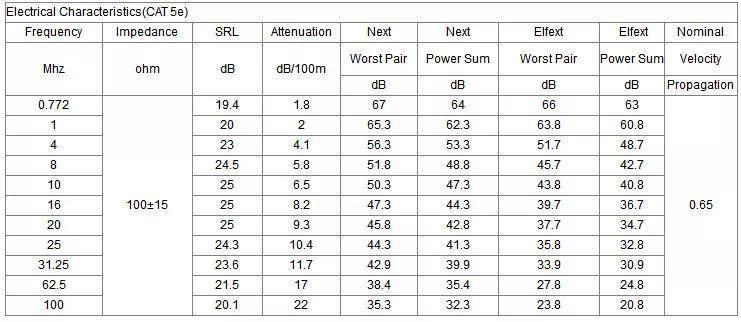

Transmission Performance for reference

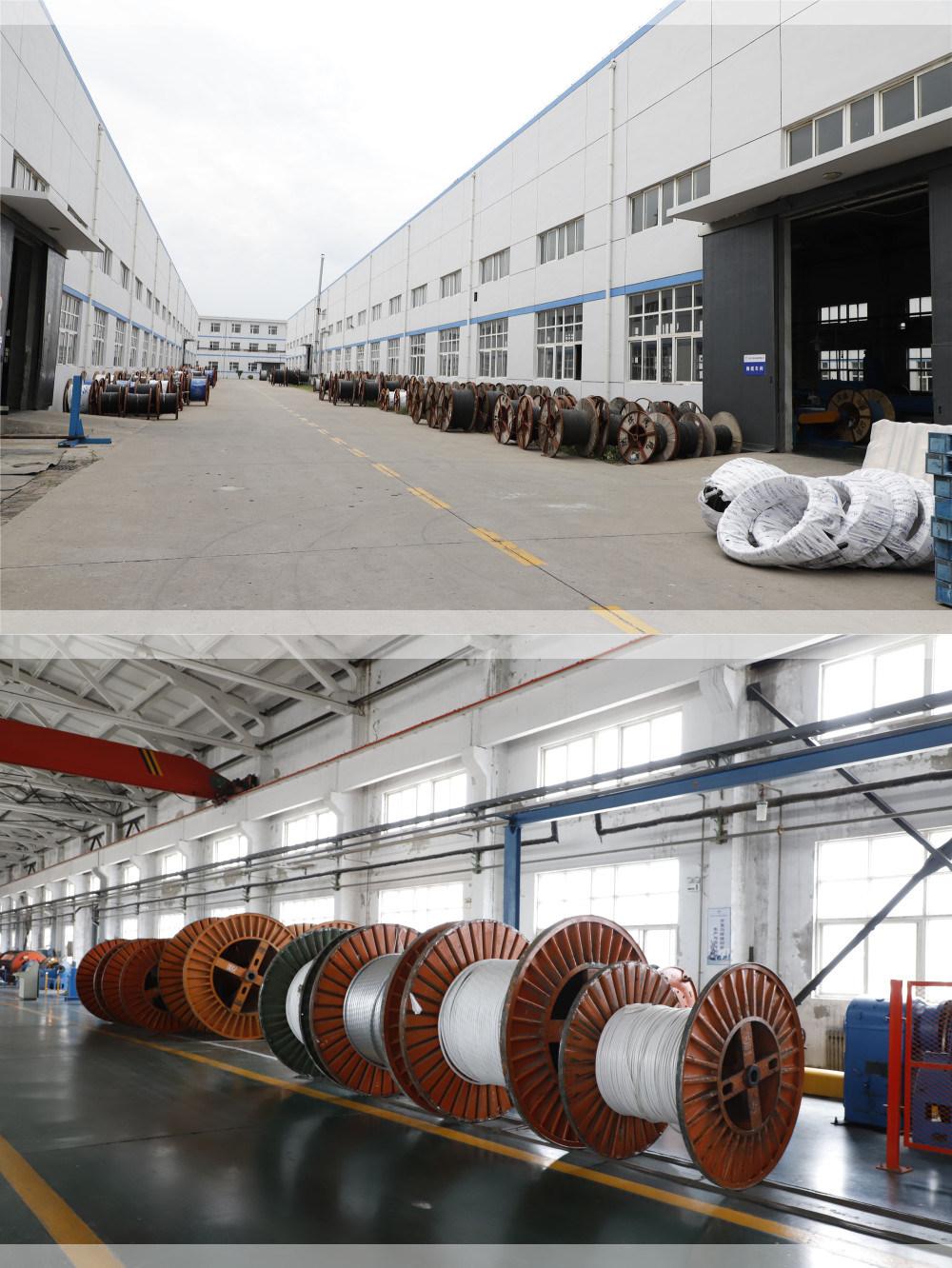

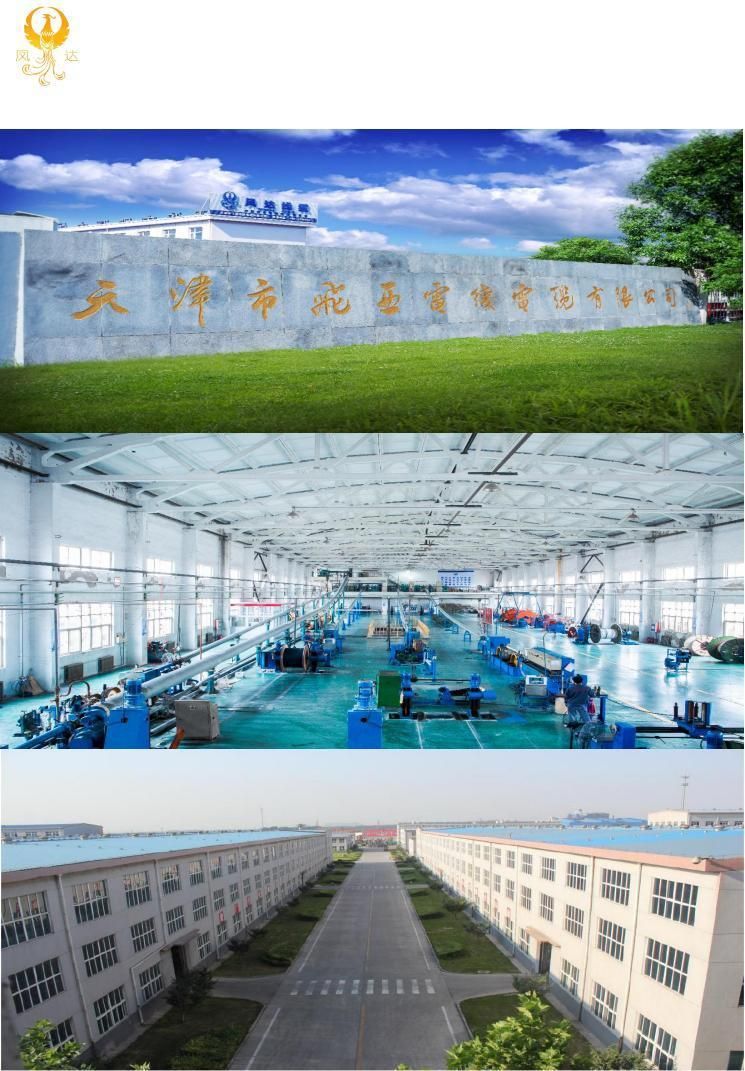

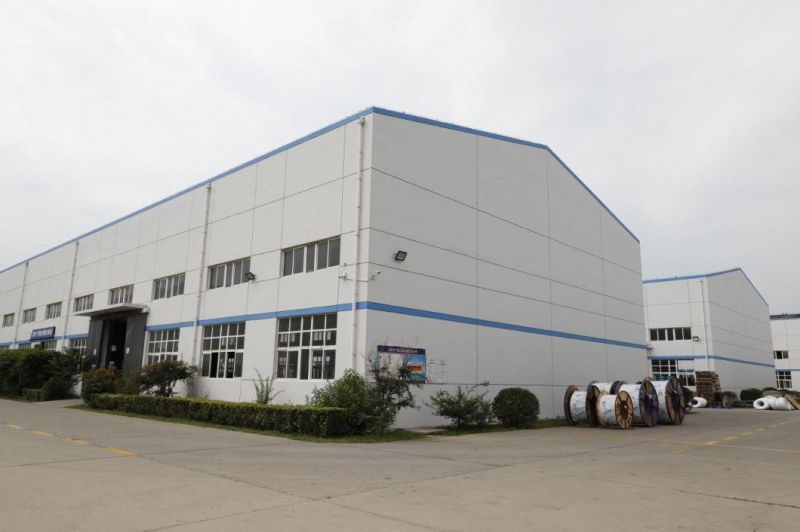

ABOUT OUR FACTORY
Tianjin Feiya wire & Cable CO., LTD. is founded in 1998, located in Tianjin, china. The company covers an area of 50 thousand square meters, registered fund of 110 million USD has more than 500 staffs, and more than 300 Agents and distributors. We are a professional manufacture in China. From established, we insist Technical and Concept innovation, Strengthen inner management, and keep pace with time. We have passed ISO9001:2000 and ISO140001:2004. All products conform to CE, GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM & ODM services). Over the past decades, we have become one of the main suppliers of China national power grid, China National Petroleum Gas Group and China Railway Construction Group. The products have been sold to many countries and regions in the world, such as USA, New Zealand, Russia, Algeria, Bahrain,Bangladesh,Brazil, Chile, Costa Rica and Cyprus, Indonesia, Iran, India, Jordan,Malaysia, Oman,Pakistan, Philippines, Singapore, Sri Lanka, Tanzania, Yemen,Vietnam, Mongolia. Our Principles: 1) Quality first, customer first, safety first 2) Better service, faster delivery 3) Equal and mutual benefit 4) Honesty and professional Our service: 1. Swift and professional response 2. Patient and trusty 3. Severe quality control system 4. On-time delivery Our Mission: Supply quality products with competitive price & excellent service.OUR CERTIFICATION
OUR EXHIBITION
Packing
FAQ
Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.
Q: How to ship the order? Is it Safe?
A: Heavy goods are transported by container, sea or air to the designated port. For small packages, recommend sending by express, such as DHL, FEDEX, UPS, TNT, EMS, ect which are door to door service.
Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.
Q: What is your working time?
A: From 8AM to 8PM Monday noon to Sunday noon. Please feel free to contact us. Our sales staff is on a rotation basis. The customer service is available 24 hours a day, checking customer emails, responding to customer questions and messages, and providing the most convenient service for each customer.
