• Model NO.：KVV KVV22
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE
• Model：KVVP
• Brand：Yifang
• Core Number：2-61 Core
• Material：Copper + PVC + PVC
• Conductor Type：Stranded Conductor
• Color of Sheath：Black and Customer Designated.
• Transport Package：Drum or According to Customer′s Request
• Specification：0.5-25nn2
• Trademark：YIFANG
• Origin：China
• HS Code：8544492100
• Production Capacity：500km Per Week

Basic Info.

Model NO. KVV KVV22 Wire Core Material Red Copper Wire Certification ISO, CCC, CE Model KVVP Brand Yifang Core Number 2-61 Core Material Copper + PVC + PVC Conductor Type Stranded Conductor Color of Sheath Black and Customer Designated. Transport Package Drum or According to Customer′s Request Specification 0.5-25nn2 Trademark YIFANG Origin China HS Code 8544492100 Production Capacity 500km Per Week

Product Description

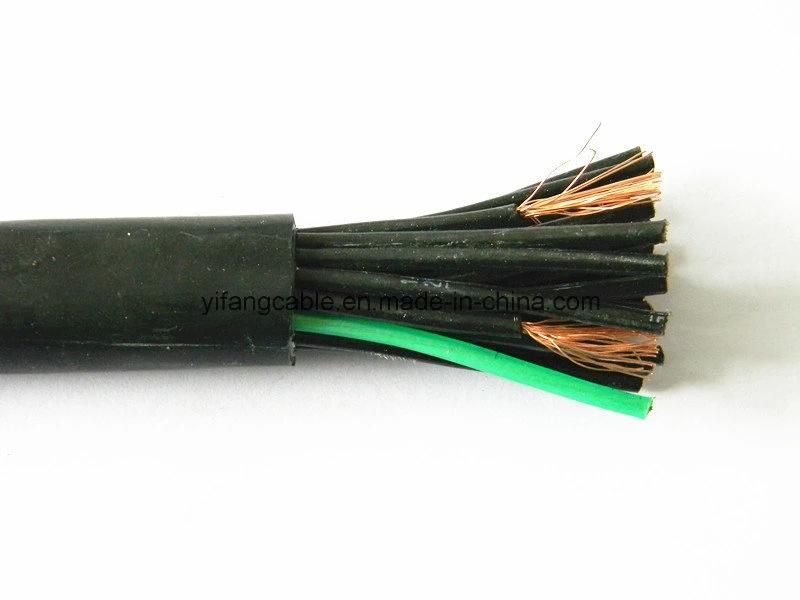

0.6 1 kv Muliti Core XLPE PVC Insulated Flexible Copper Conductor Control Cable

Application: Suitable for the interconnection in controlling, protecting and measuring system.

Manufactured standards: GB/T9330 IEC60227 IEC60502

Production Scope:
Voltage 1KV or below
Conductor type: Flexible, Stranded or solid (class 1, 2, and 5)
Cross Section Area: 0.5mm2 to 10mm2
Core: from 2 to 61cores
Color of insulation: Red, yellow, yellow/green, white, black, grey, brown, orange etc.
Core's identification: by colour, Number or others as per customers request

Construction:
Conductor: IEC60228 class 2 and class 5 bear copper/Aluminum etc.
Insulation: PVC/XLPE/EPR
Shield (optional): Copper tape/Al-Mylar tape/Braiding
Armor (optional): Galvanized steel wire/ two layers of steel tape gap-wrapped
 / Galvanized steel interlocked armour/Aluminum alloy interlocked armour
Outer Sheath: PVC, PE, or other special requirements


Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.


Our certificate


FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
