• Model NO.：YJV32
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS
• Model：YJV
• Brand：Yifang
• Size1：2 AWG
• Size2：1,0 AWG
• Size3：2,0 AWG
• Size4：3,0 AWG
• Size5：4,0 AWG
• Transport Package：Drum, Reel, Container
• Specification：35~800mm2
• Trademark：Yifang
• Origin：China
• HS Code：8544601200
• Production Capacity：500km Per Month

Basic Info.

Model NO. YJV32 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS Model YJV Brand Yifang Size1 2 AWG Size2 1/0 AWG Size3 2/0 AWG Size4 3/0 AWG Size5 4/0 AWG Transport Package Drum, Reel, Container Specification 35~800mm2 Trademark Yifang Origin China HS Code 8544601200 Production Capacity 500km Per Month

Product Description

Copper Wire Submarine Power Cable With Armoured XLPE Water Blocking Connector 5~35KV

Designation internationale : 5~35kV 3 core Copper XLPE cable, Cu-screen, Al/PE-sheath, Armouring


3 core XLPE-insulated cables with PE sheath and armouring, longitudinally and radially watertight
NORMES


Internationales : IEC 60502-2   ICEA 96-659


DESCRIPTION:

Stranded copper conductor class 2 according to IEC 60228, semi conducting conductor screen, insulation of cross-linked polyethylene (XLPE), semi conducting insulation screen, semi conducting bedding, copper screen with swellable powder, aluminium tape bonded to PE sheath, 3 core layed up, polypropylene yarn bedding, armouring of galvanized steel, PE outer sheath.

Application in water, for example internal and external cabling of offshore windparks, power supply of islands, lighthouses and offshore plattforms.

Optionally watertight conductor with sealing compound, Control Cables in the interstices available.

All medium voltage submarine cables are manufactured on the basis of specifications and can be adapted to the requirements of the customer. Therefore, all technical information are purely for information purposes and the electrical characteristics are calculated for water saturated seabeds and values which are specified in the data sheets. For your specific requirements and laying depths please don't hesitate to contact us.

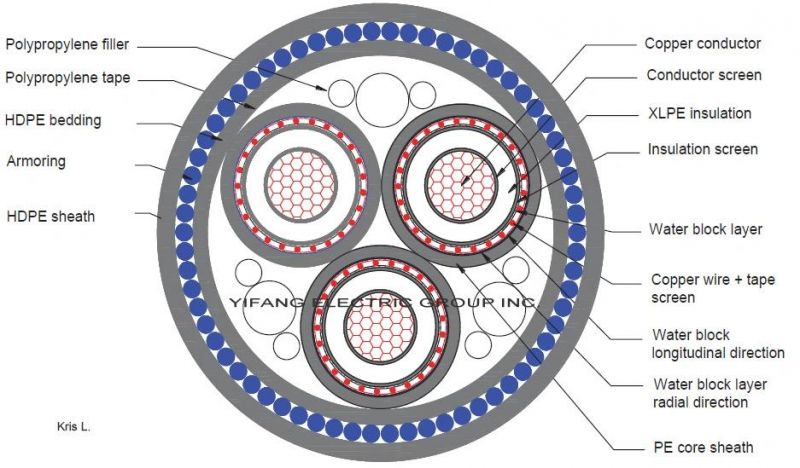

Product Drawin





Product Parameters

Sizes(mm2)	Overall Dia.(mm)	Weight(kg/km)	Rated Current(A)
3x1x50/16	83.00	9300	199
3x1x70/16	87.00	11400	243
3x1x95/16	89.00	12700	292
3x1x120/16	94.00	14100	327
3x1x150/25	97.00	15300	363
3x1x185/25	102.00	18600	405
3x1x240/25	108.00	21100	464

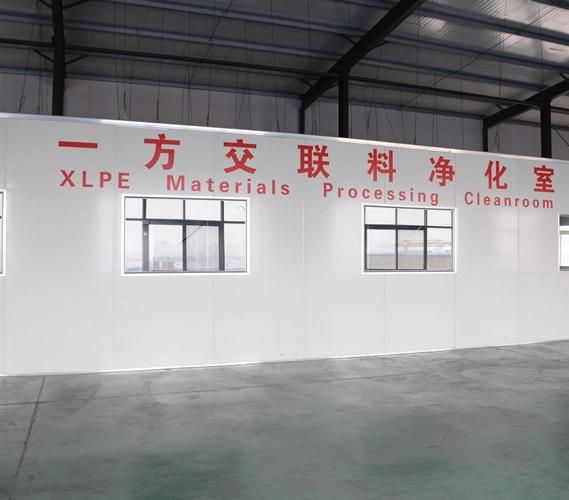

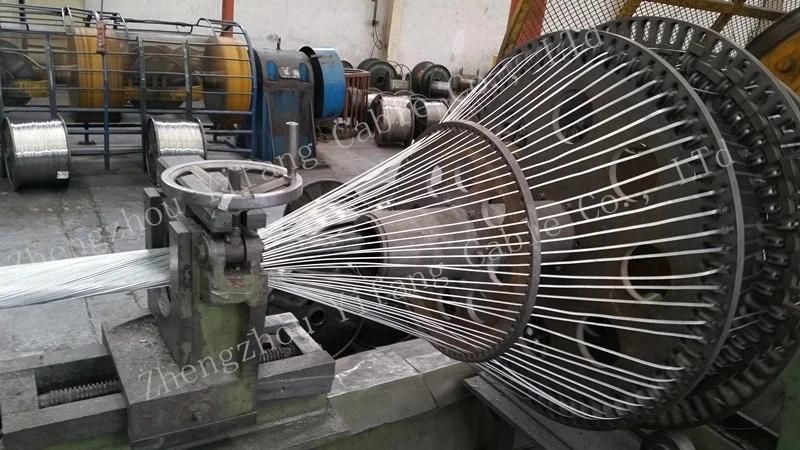

Production Process







Inspection



Packaging & Delivery

Packaging Details: Steel drums/reels
Packing length need to be confirmed before production

Delivery Time
According request

Marking type:
Ink printing, embossing, laser marking

Further details pls contact to get professional service.
